Left SIACM Curtain Squib Shorted to Ground (Active)

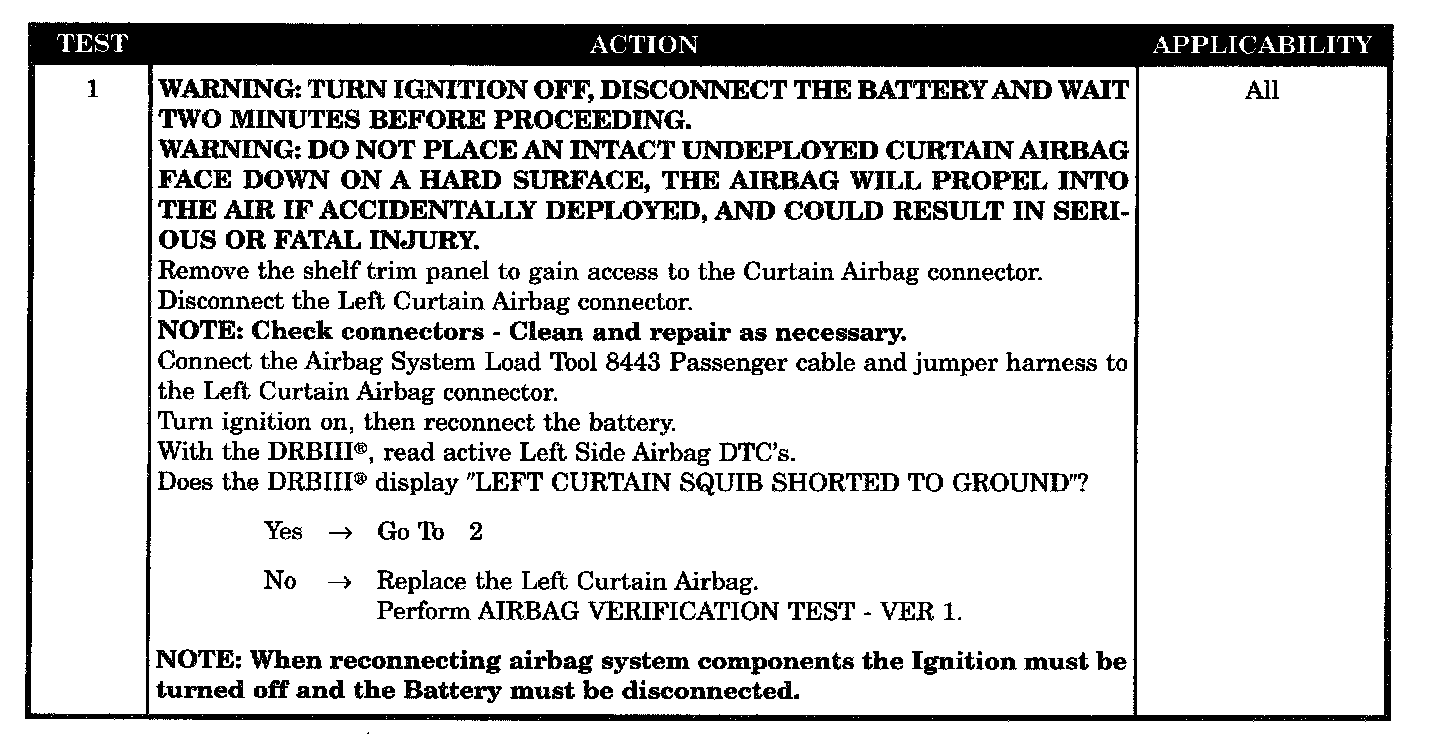

Test 1:

Tests 2 - 3:

Test 4:

SYMPTOM
LEFT SIACM, CURTAIN SQUIB SHORT TO GROUND - ACTIVE

WHEN MONITORED
When the ignition is ON, the Left SIACM monitors the resistance of the left Curtain Squib circuits for low resistance.

SET CONDITION
The Left SIACM has detected a short to ground in the left Curtain Squib circuits.

POSSIBLE CAUSES
- Left curtain airbag circuit short to ground
- Left curtain squib line 1 short to ground
- Left curtain squib line 2 short to ground
- LSIACM, left curtain squib circuit short to ground
