Left SIACM Curtain Squib Shorted to Battery (Active)

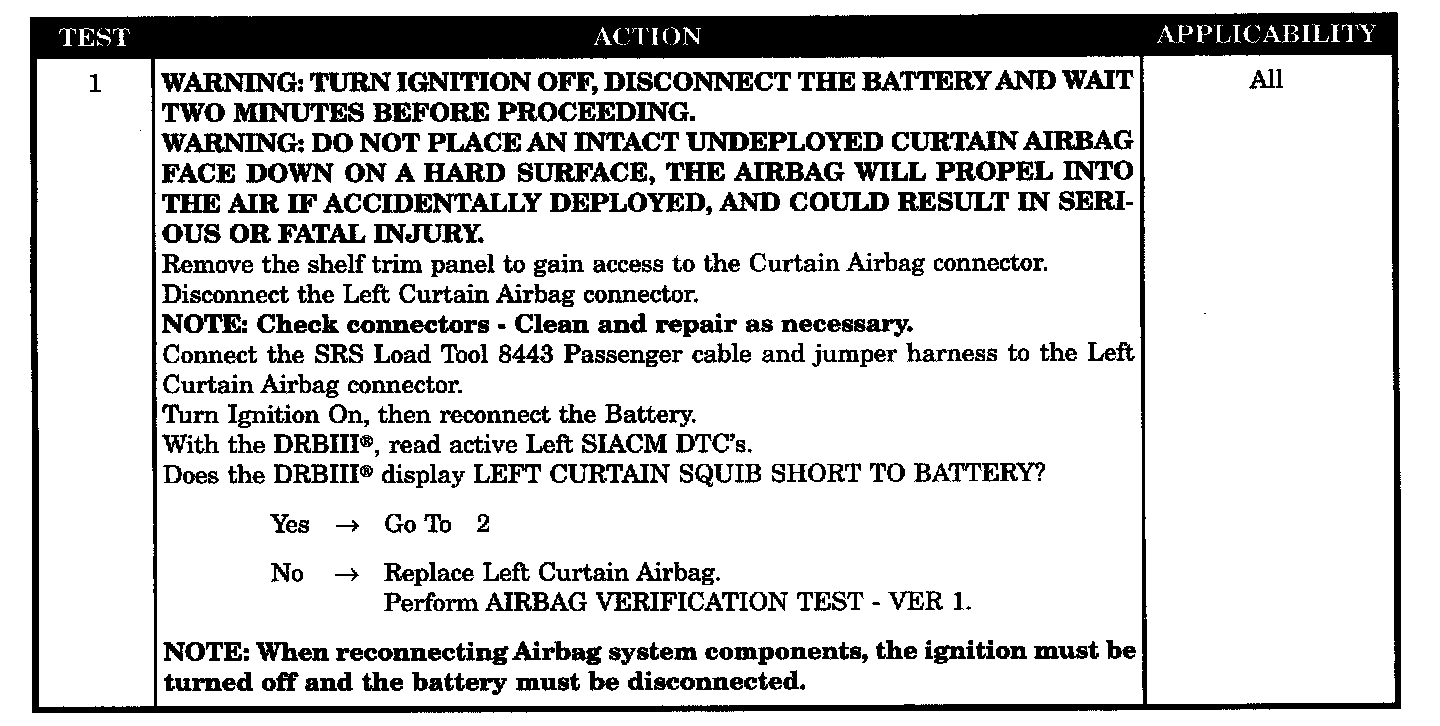

Test 1:

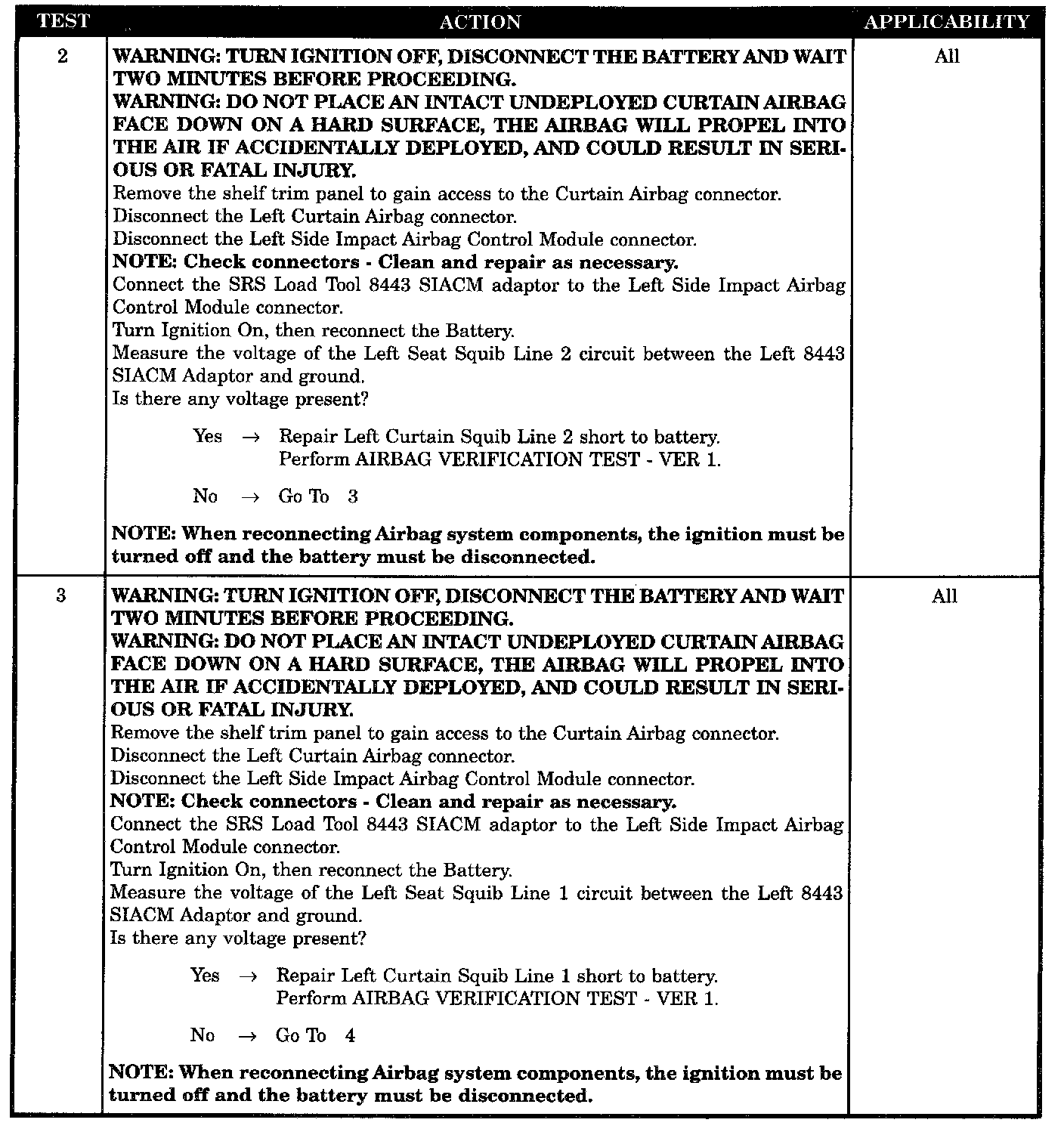

Tests 2 - 3:

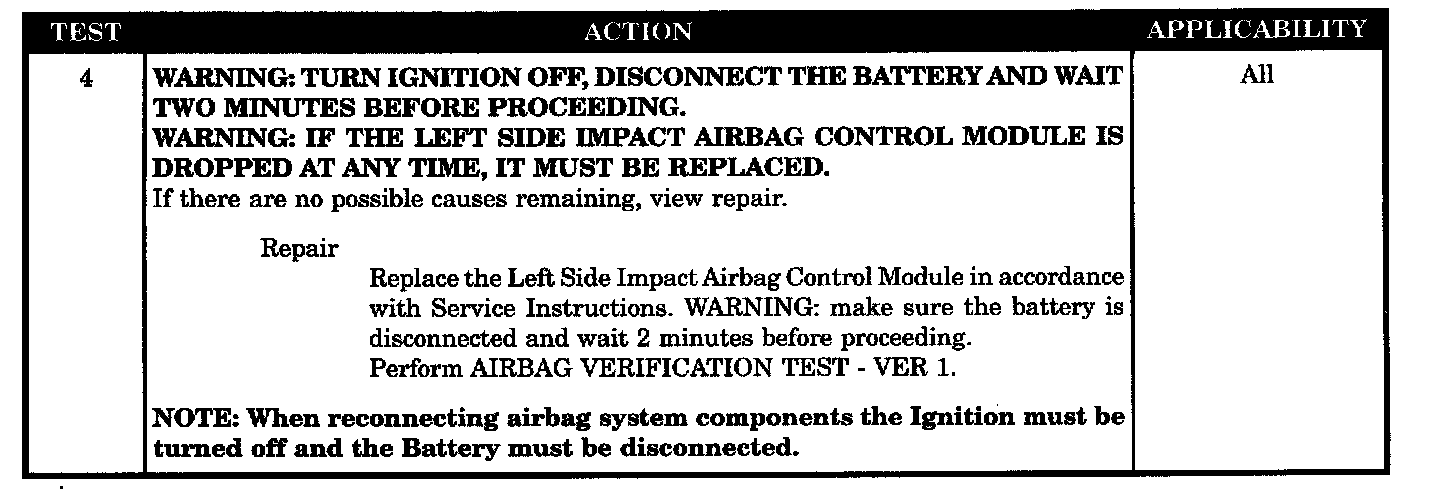

Test 4:

SYMPTOM
LEFT SIACM, CURTAIN SQUIB SHORT TO BATTERY - ACTIVE

WHEN MONITORED
When the ignition is ON, the Left SIACM monitors the voltage of the left Curtain Squib circuits.

SET CONDITION
The Left SIACM has detected high voltage on the Left Curtain Squib circuits.

POSSIBLE CAUSES
- Left curtain airbag circuit short to battery
- Left curtain squib line 1 short to battery
- Left curtain squib line 2 short to battery
- LSIACM, left curtain squib circuit short to battery
