Left SIACM Curtain Squib Circuit Shorted (Active)

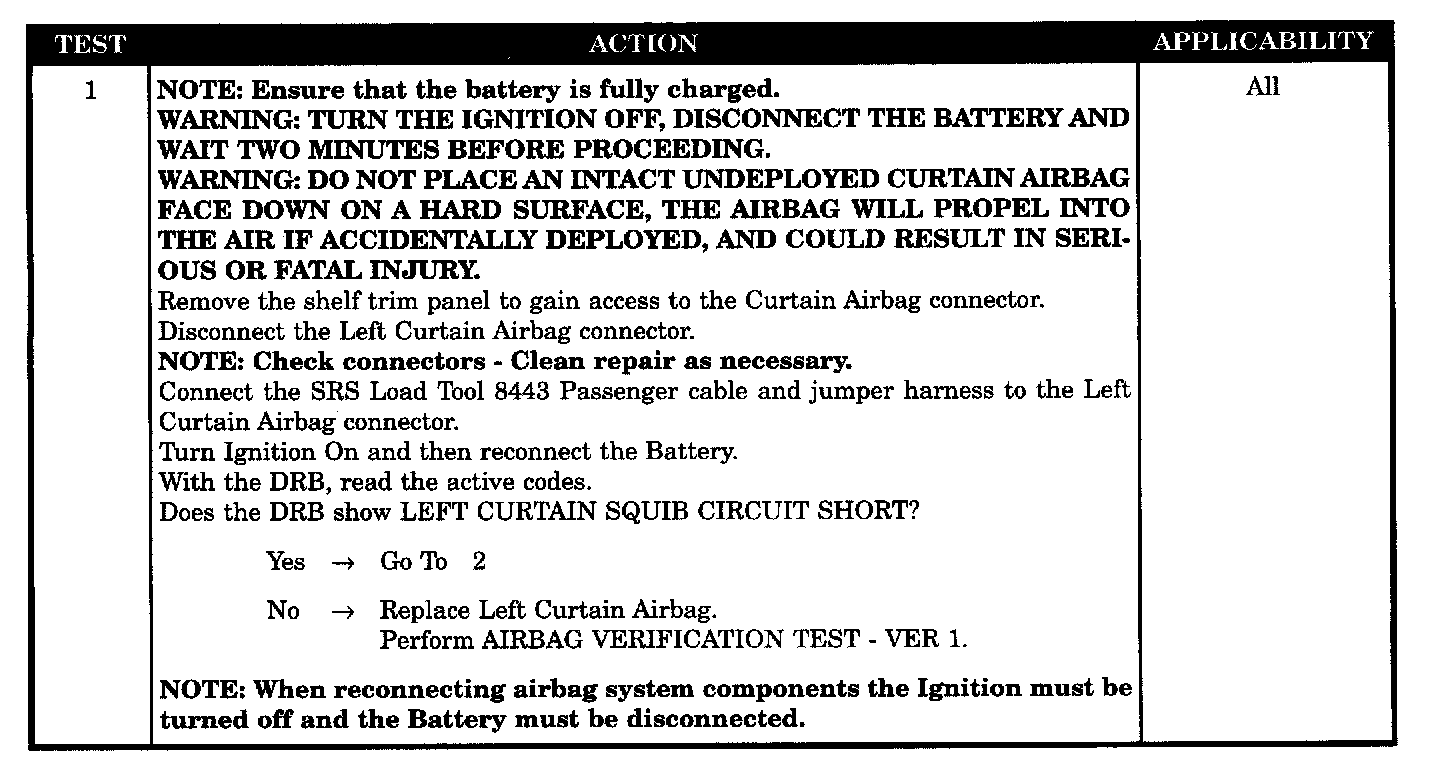

Test 1:

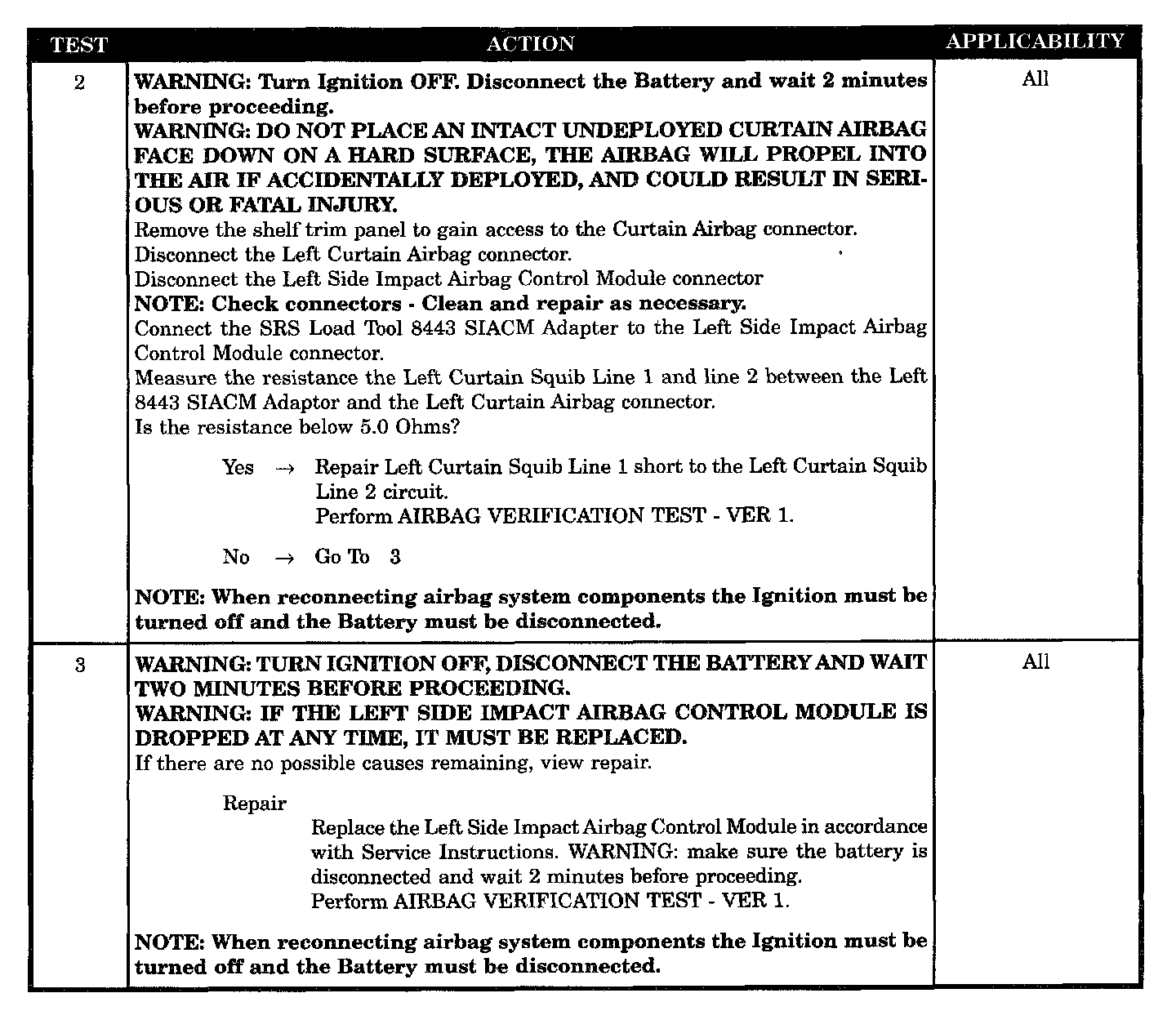

Tests 2 - 3:

SYMPTOM
LEFT SIACM, CURTAIN SQUIB CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the Left SIACM monitors the resistance of the Left Curtain Squib circuits.

SET CONDITION
The Left SIACM has detected low resistance in the Left Curtain Squib circuits.

POSSIBLE CAUSES
- Left curtain airbag circuit short
- Left curtain squib line 1 short to line 2
- LSIACM, left curtain squib circuit short
