Left SIACM Curtain Squib Circuit Open (Active)

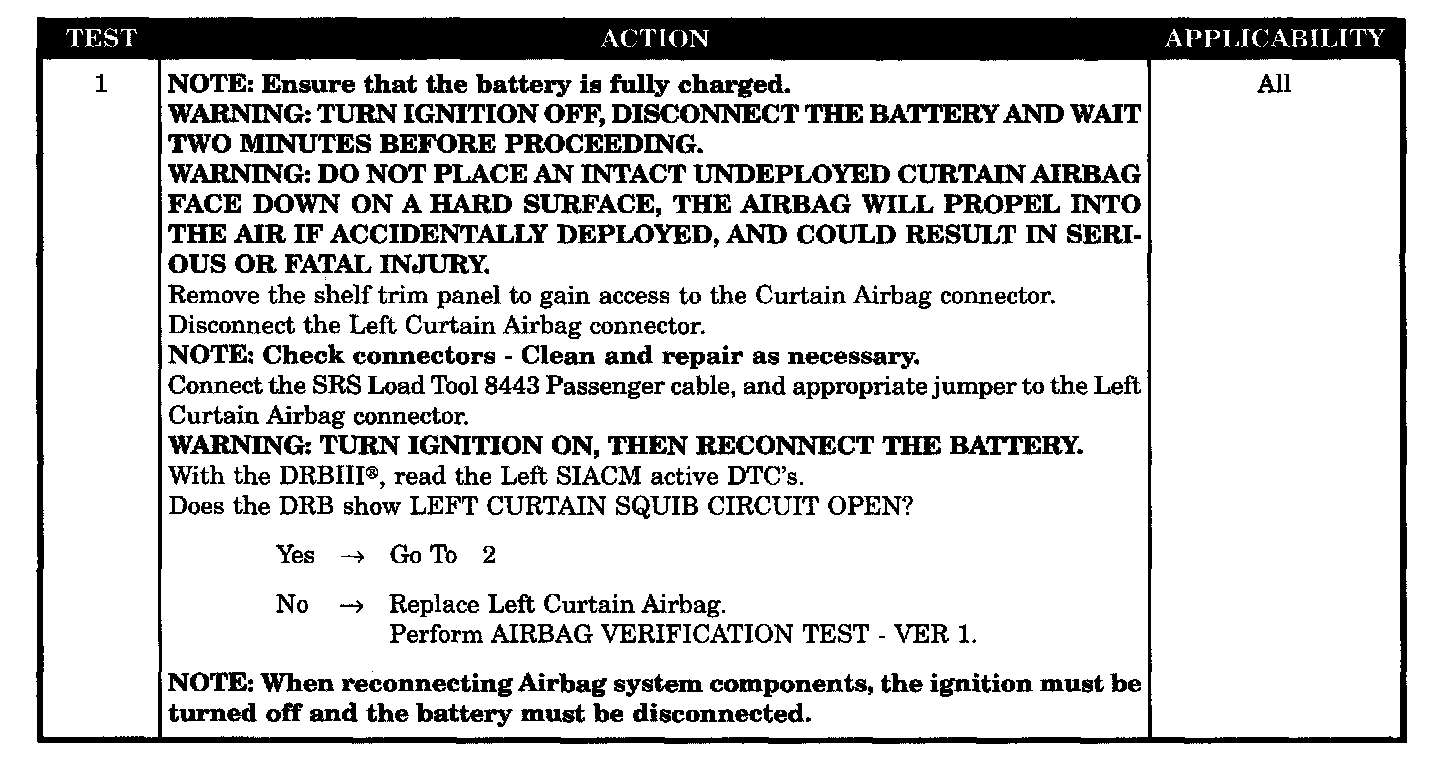

Test 1:

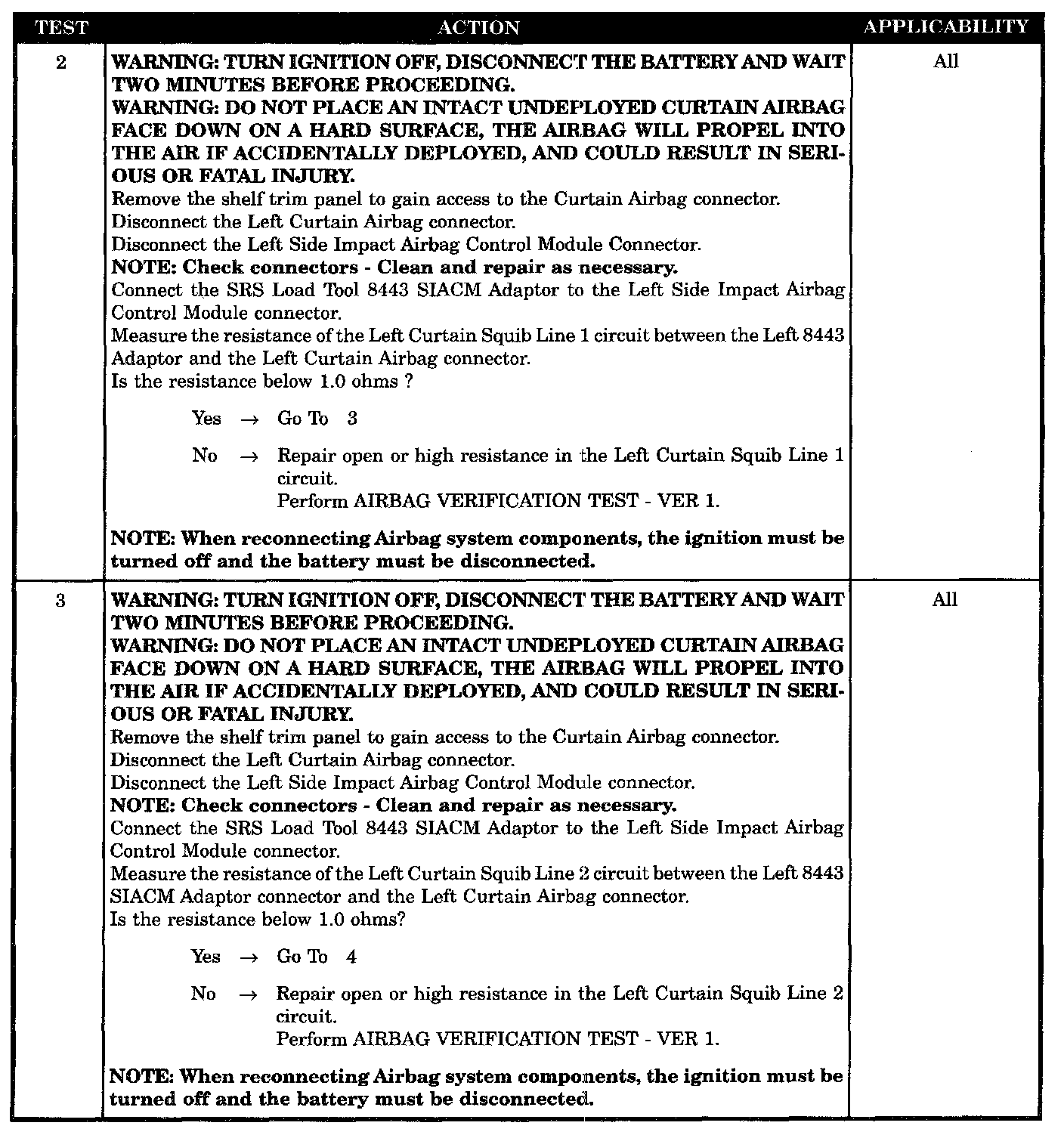

Tests 2 - 3:

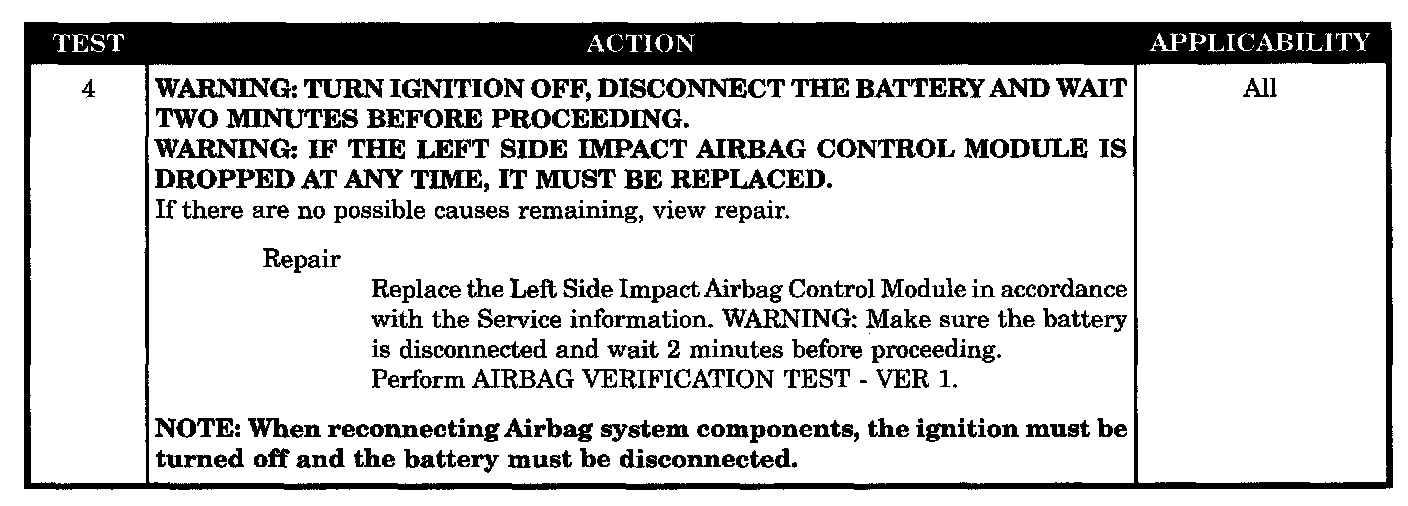

Test 4:

SYMPTOM
LEFT SIACM, CURTAIN SQUIB CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the Left SIACM monitors the Left Curtain Squib circuits for high resistance.

SET CONDITION
The Left SIACM has detected an open circuit or high resistance on the left Curtain Squib circuits.

POSSIBLE CAUSES
- Left curtain airbag module circuit open
- Left curtain squib line 1 circuit ope
- Left curtain squib line 2 circuit open
- LSIACM, Left curtain squib circuit open
