Door Lock Inhibit Inoperative

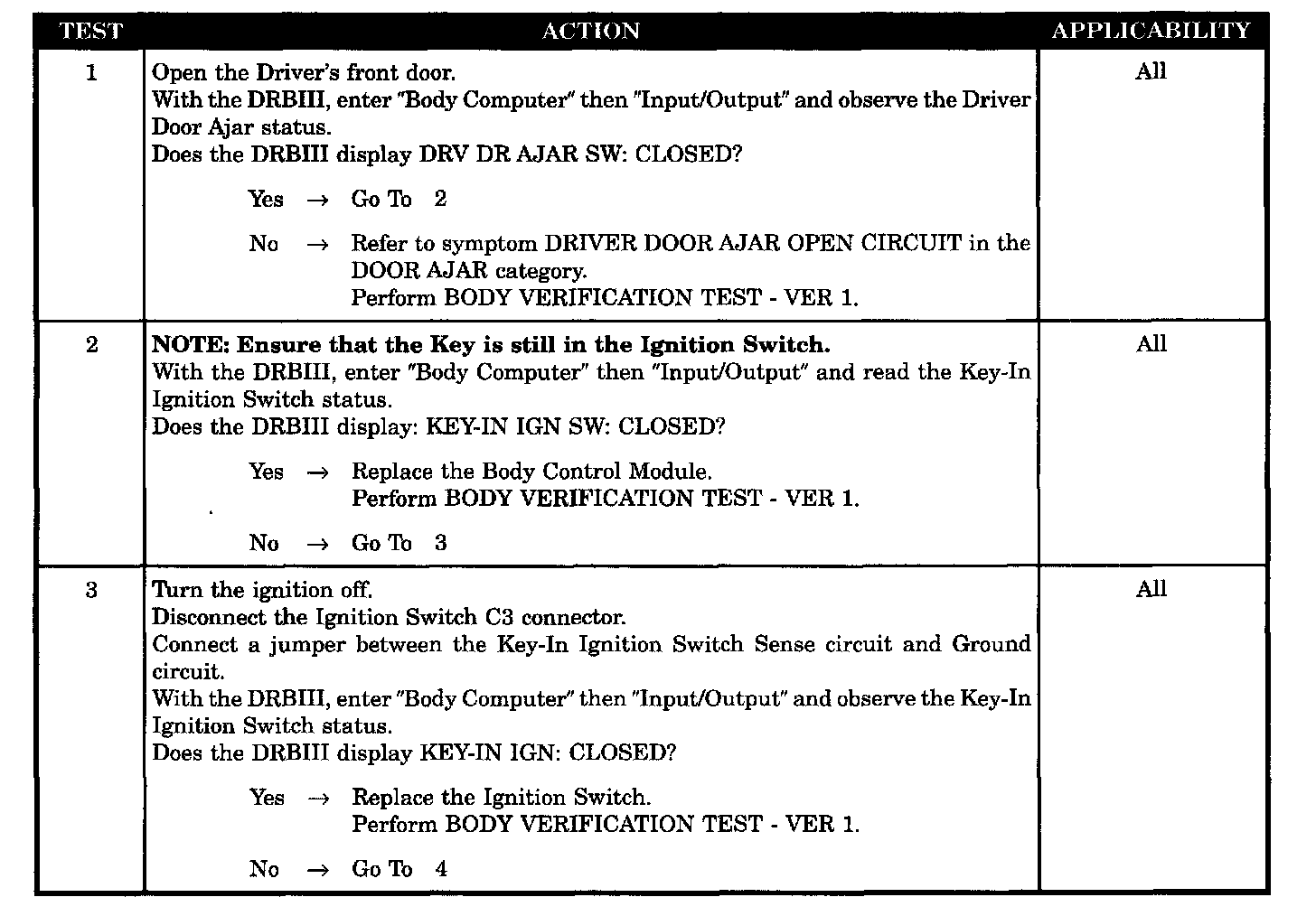

Tests 1 - 3:

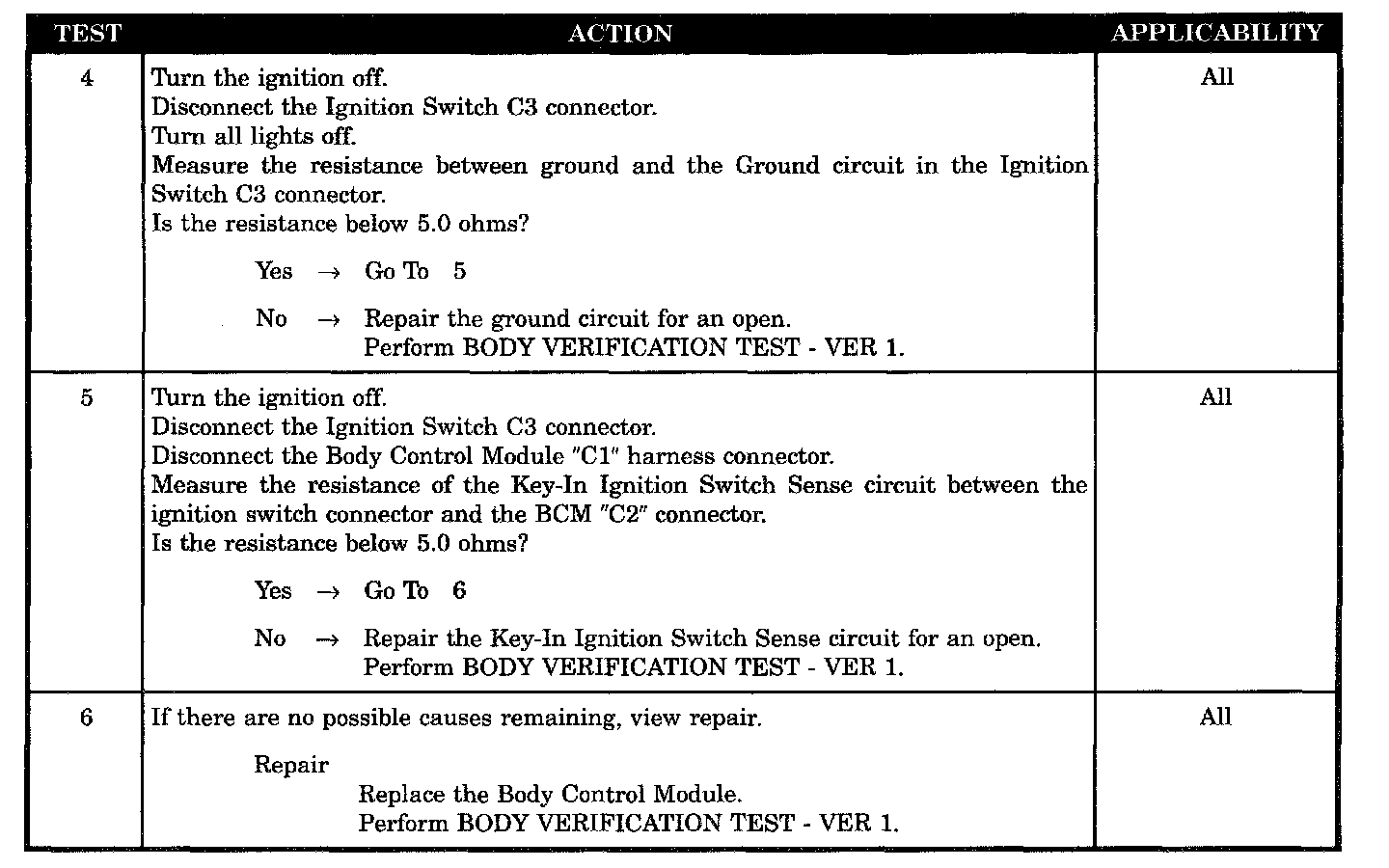

Tests 4 - 6:

SYMPTOM
DOOR LOCK INHIBIT INOPERATIVE

POSSIBLE CAUSES
- Check the driver door ajar switch status
- Observe the key-in ignition switch status
- Ignition switch open
- Key-in ignition switch ground circuit open
- Key-in ignition switch sense circuit open
- BCM - incorrect key-in ignition switch status
