Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Power Door Locks/RKE >> All Doors Failing to Lock From Any Switch

All Doors Failing to Lock From Any Switch

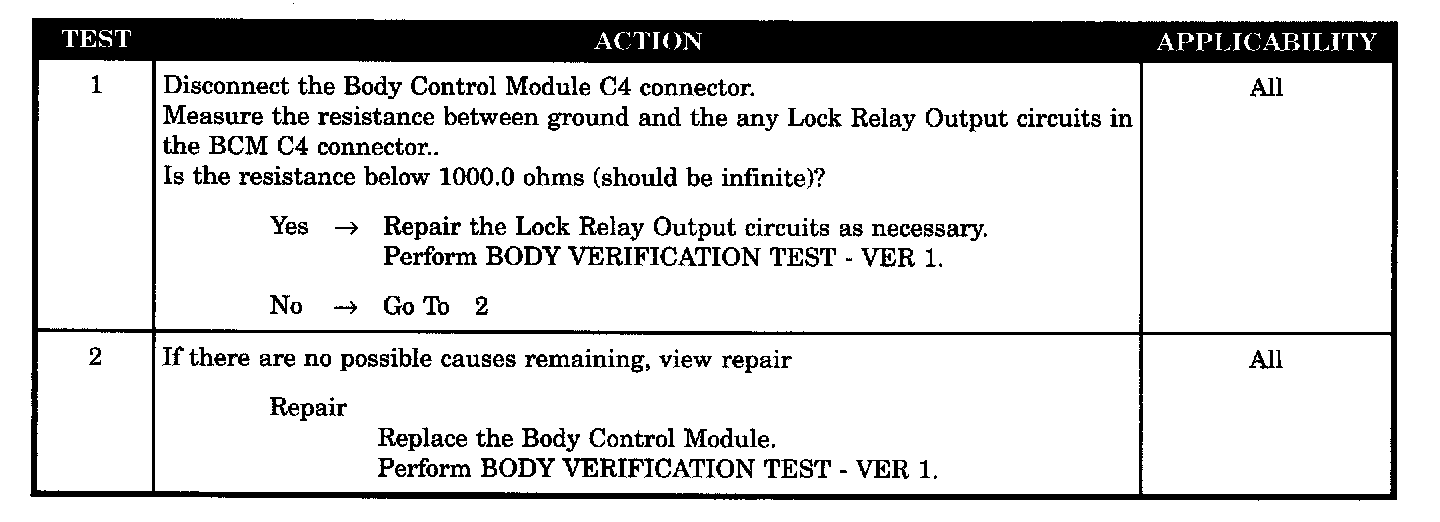

Tests 1 - 2:




SYMPTOM
ALL DOORS FAILING TO LOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Lock relay output circuit short to ground
- Body control module - lock relay open
