BCM Messages Not Received

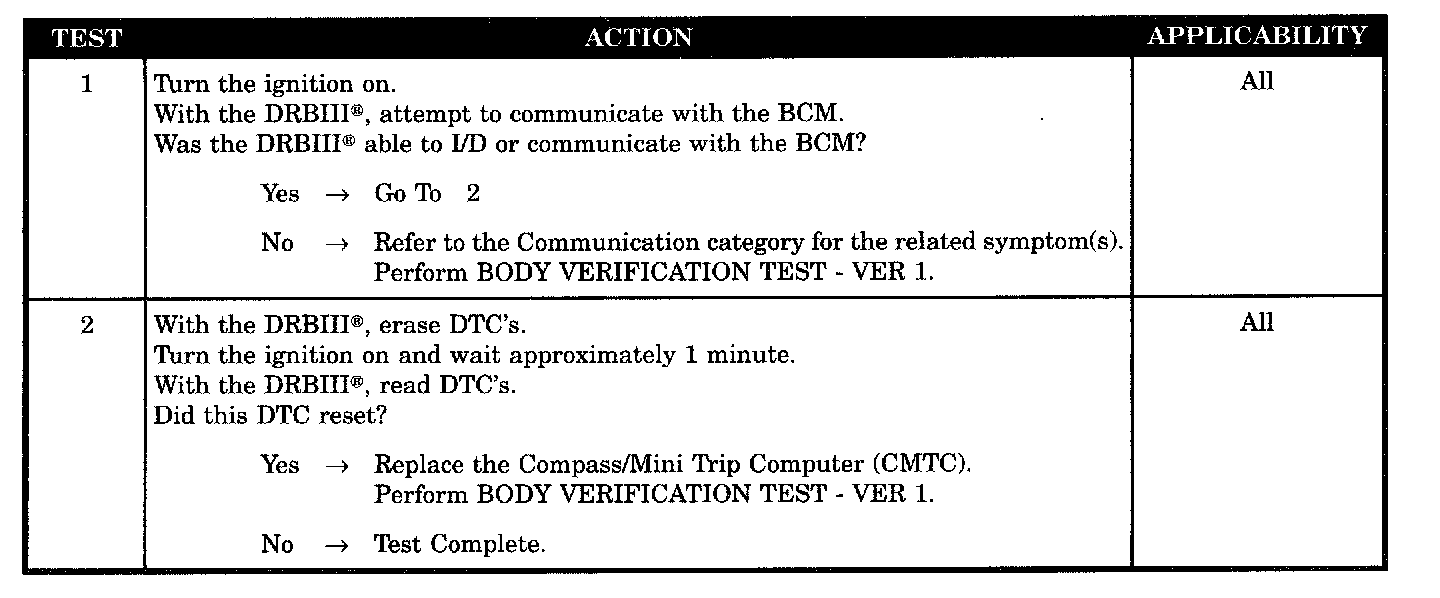

Tests 1 - 2:

SYMPTOM
BCM MESSAGE NOT RECEIVED

WHEN MONITORED
With the ignition ON.

SET CONDITION
This DTC Will set if the Compass/Mini Trip Computer (CMTC) does not receive messages from the BCM.

POSSIBLE CAUSES
- Attempt to communicate with the body control module
- Compass/mini trip computer
