Speedometer Not Operating Properly

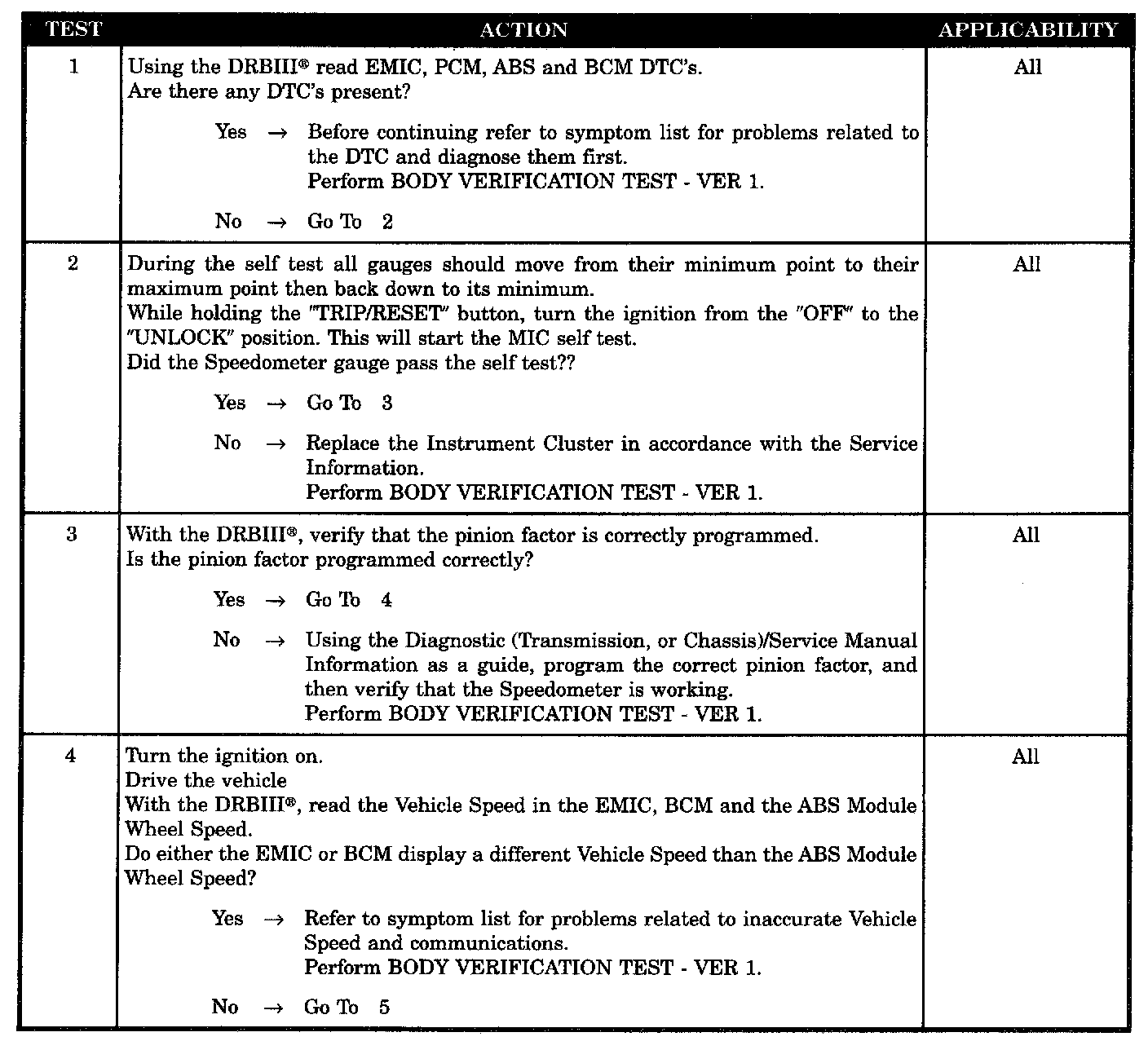

Tests 1 - 4:

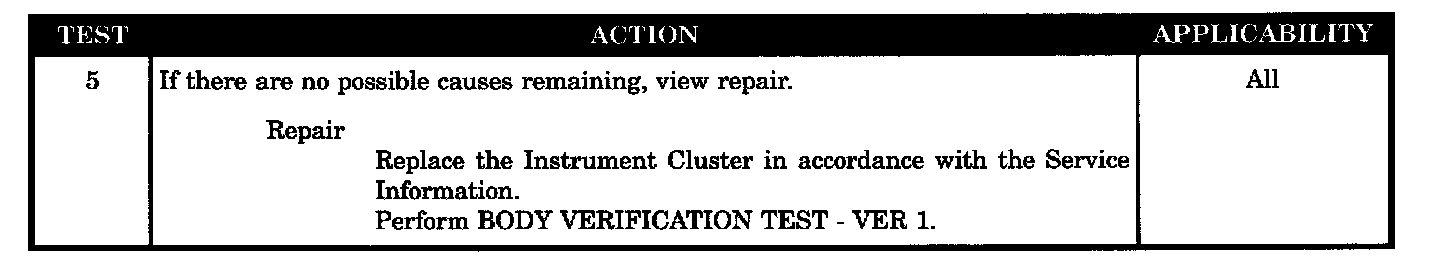

Test 5:

SYMPTOM
SPEEDOMETER NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Check DTCS
- Instrument cluster self test
- Missing or incorrect pinion factor
- Vehicle speed message
- EMIC
