Seat Belt Indicator Not Operating Properly

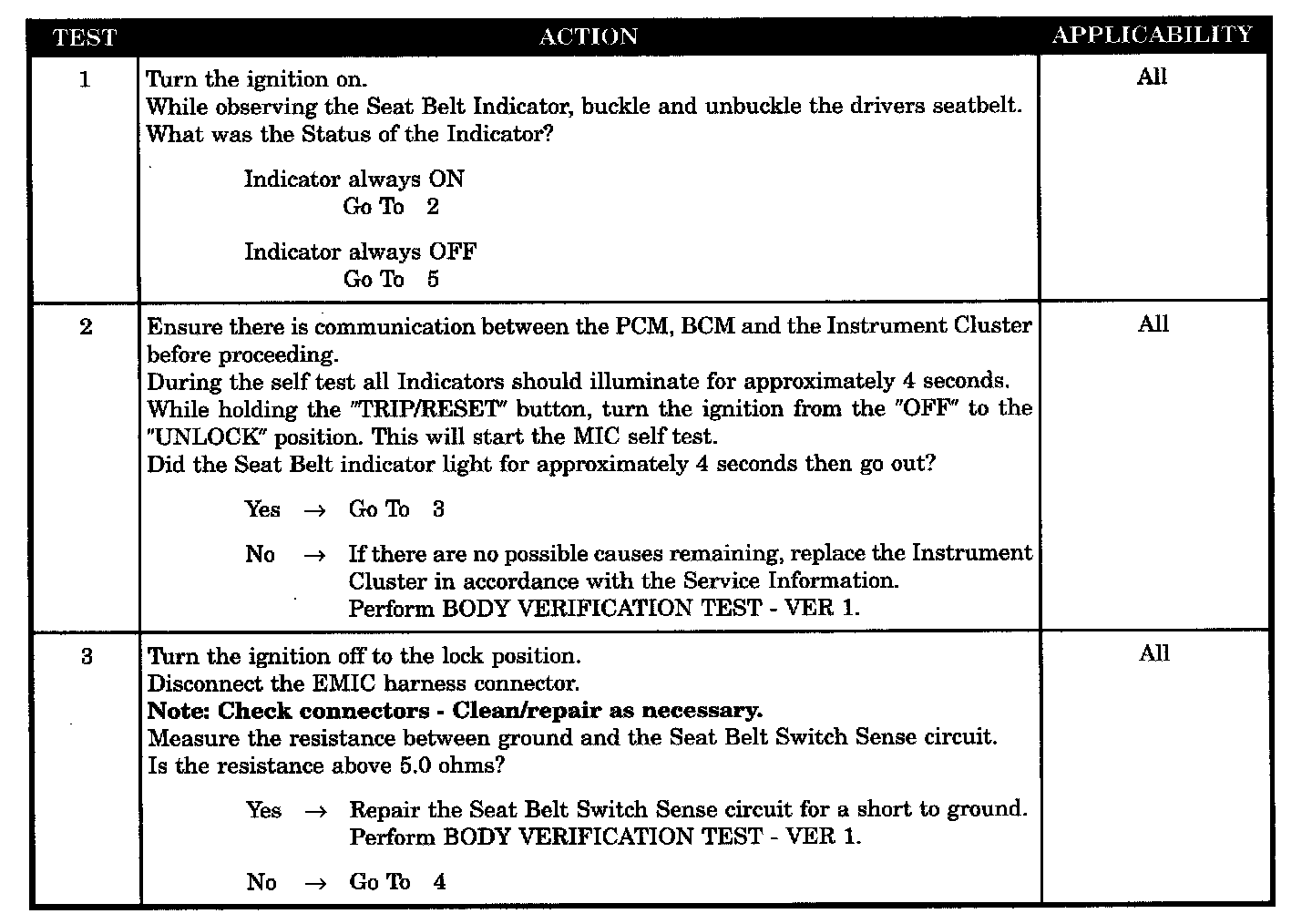

Tests 1 - 3:

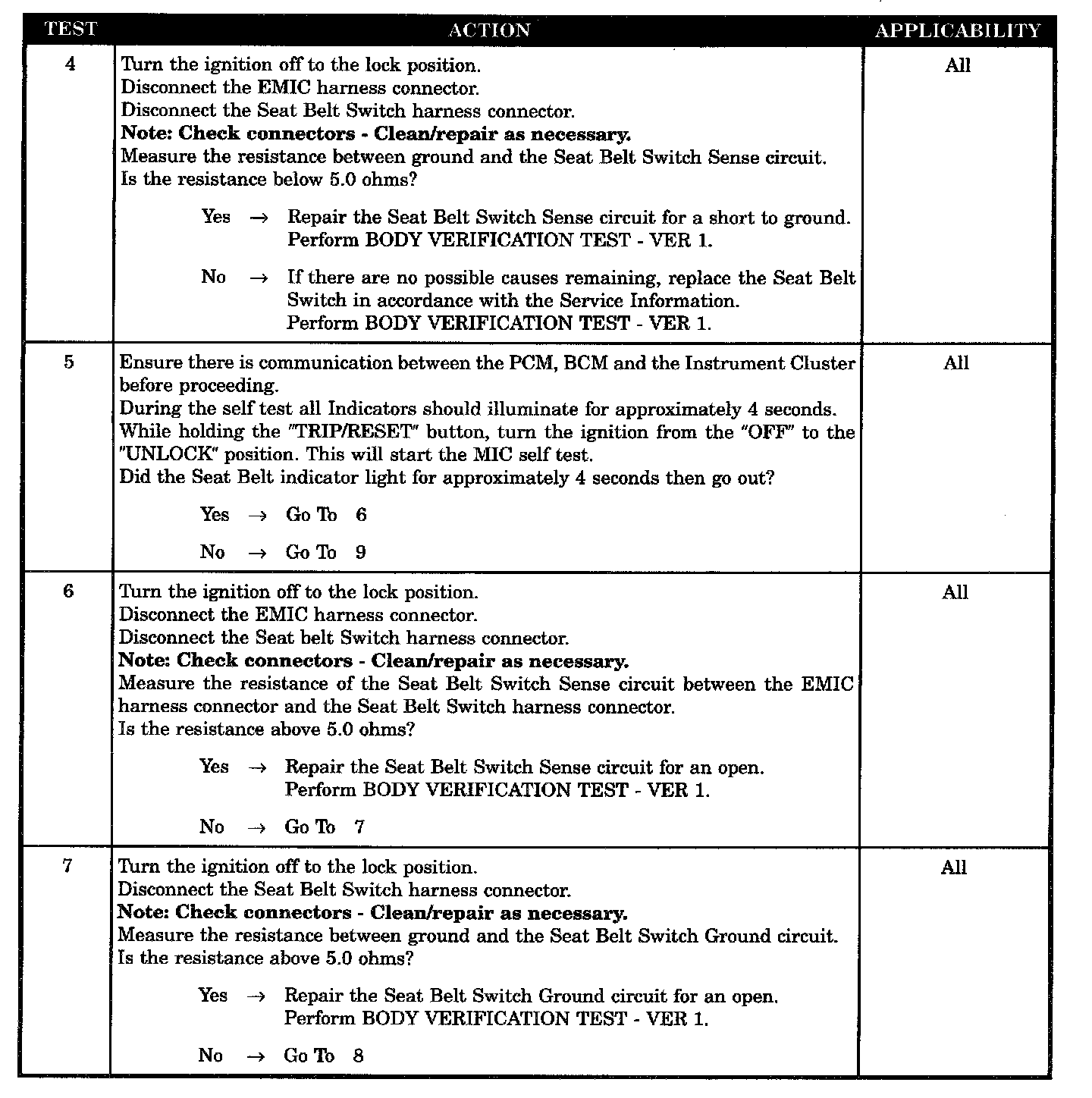

Tests 4 - 7:

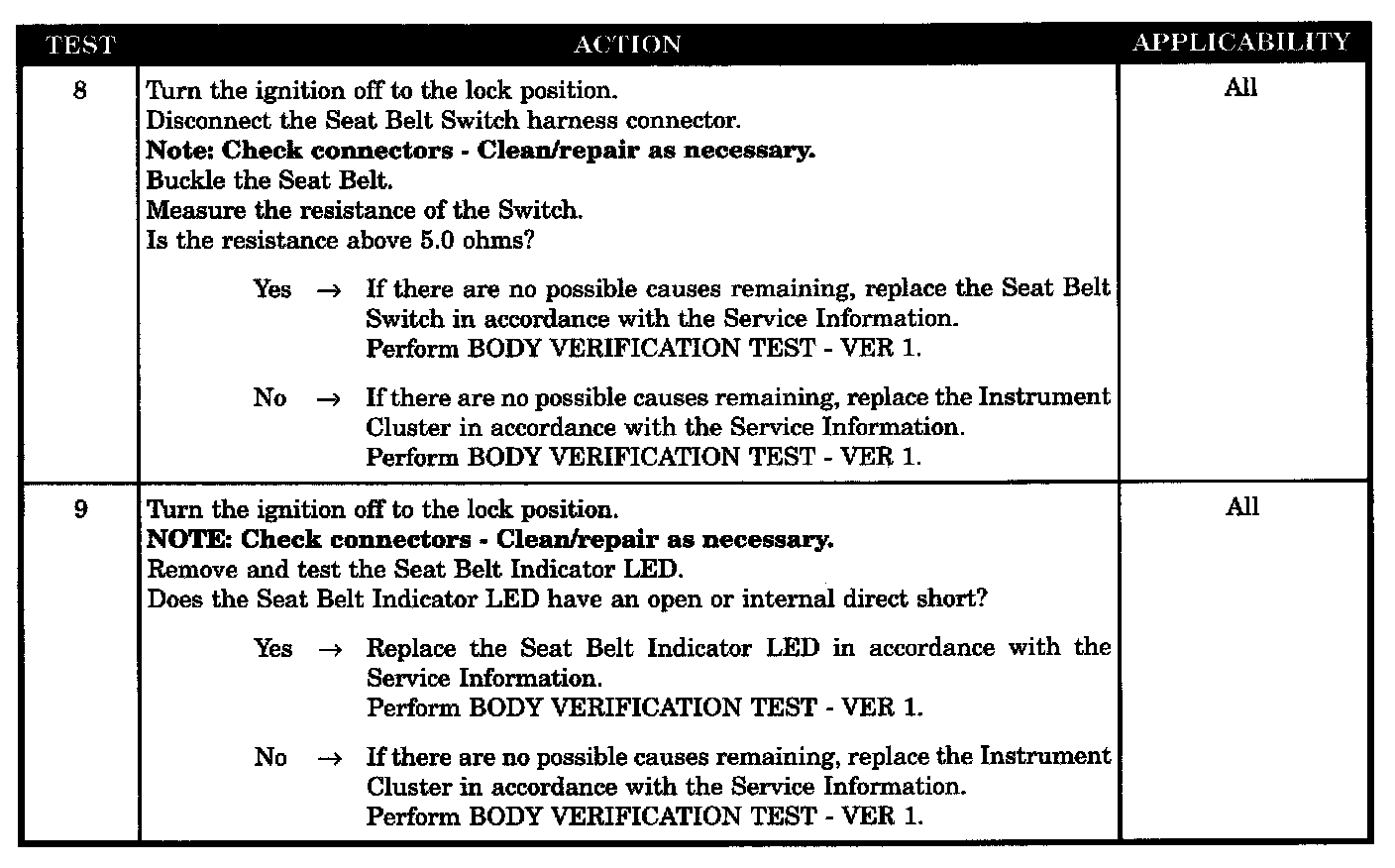

Tests 8 - 9:

SYMPTOM
SEAT BELT INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Seat belt switch sense circuit open
- Seat belt switch ground circuit open
- Seat belt switch open
- Seat belt switch sense circuit short to ground
- Seat belt switch short
- Seat belt indicator
- Instrument cluster
- Seat belt switch
