Panel Dimming Output Shorted

Tests 1 - 2:

Tests 3 - 6:

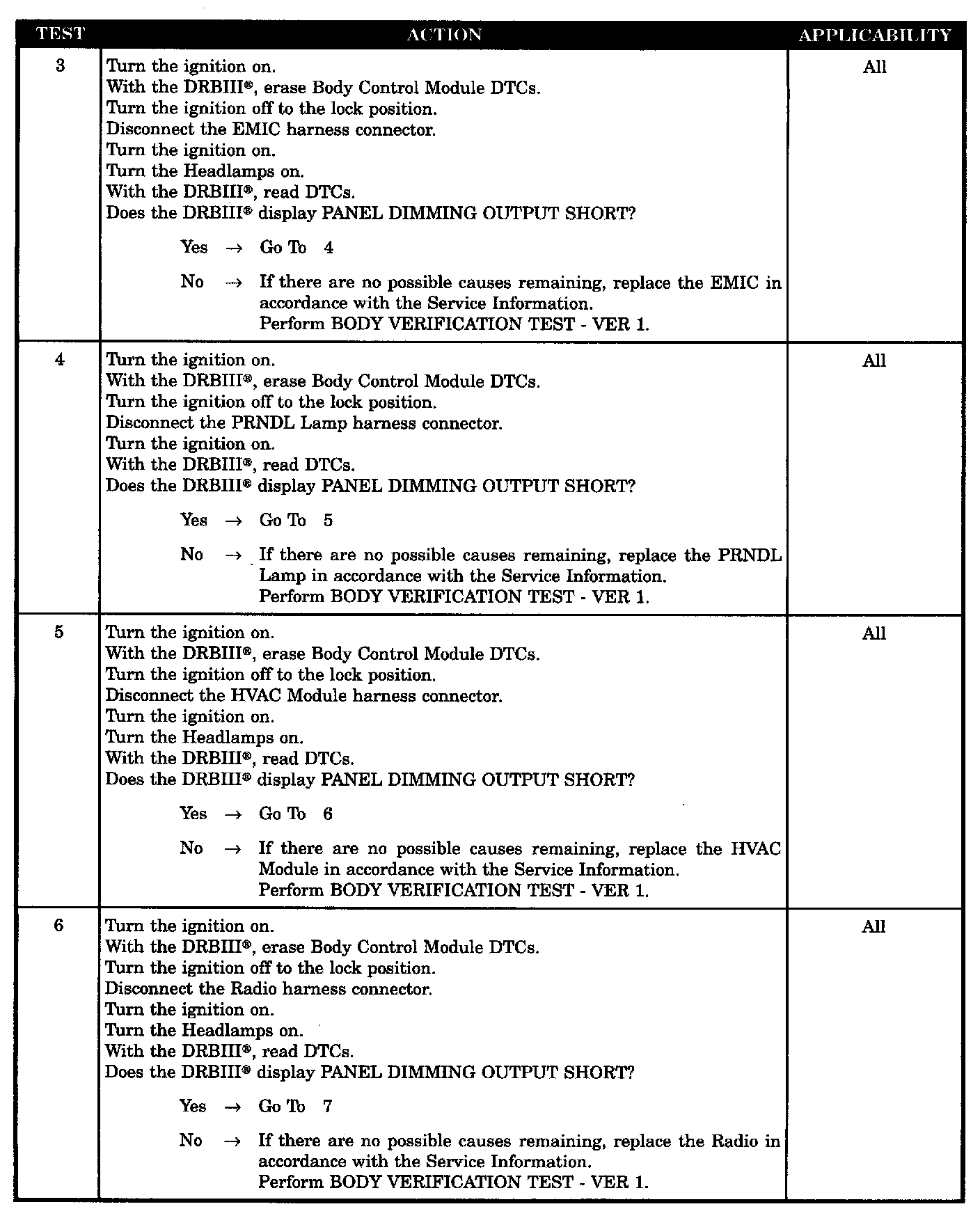

Tests 7 - 11:

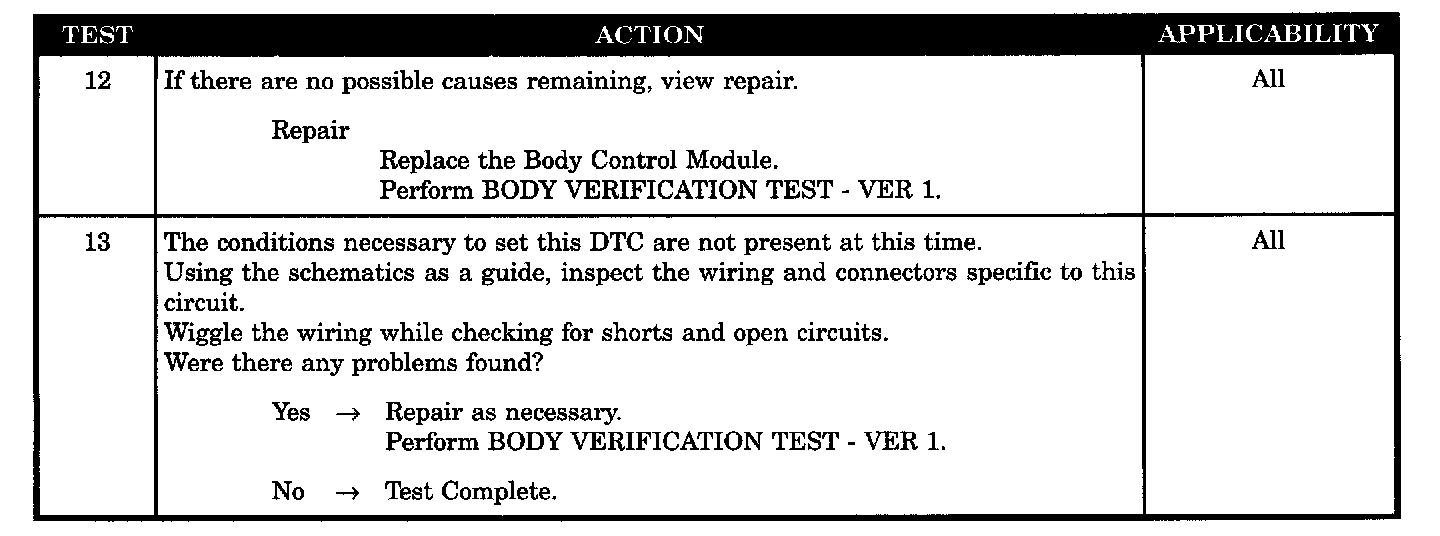

Tests 12 - 13:

SYMPTOM
PANEL DIMMING OUTPUT SHORT

POSSIBLE CAUSES
- Intermittent wiring and connectors
- Ash receiver lamp dimming circuit short to ground
- EMIC dimming circuit short to ground
- HVAC module dimming circuit short to ground
- PRNDL lamp circuit short to ground
- Radio dimming circuit short to ground
- Ash receiver
- EMIC
- PRNDL lamp
- Radio
- Body control module
- HVAC module
