Oil Pressure Indicator Not Operating Properly

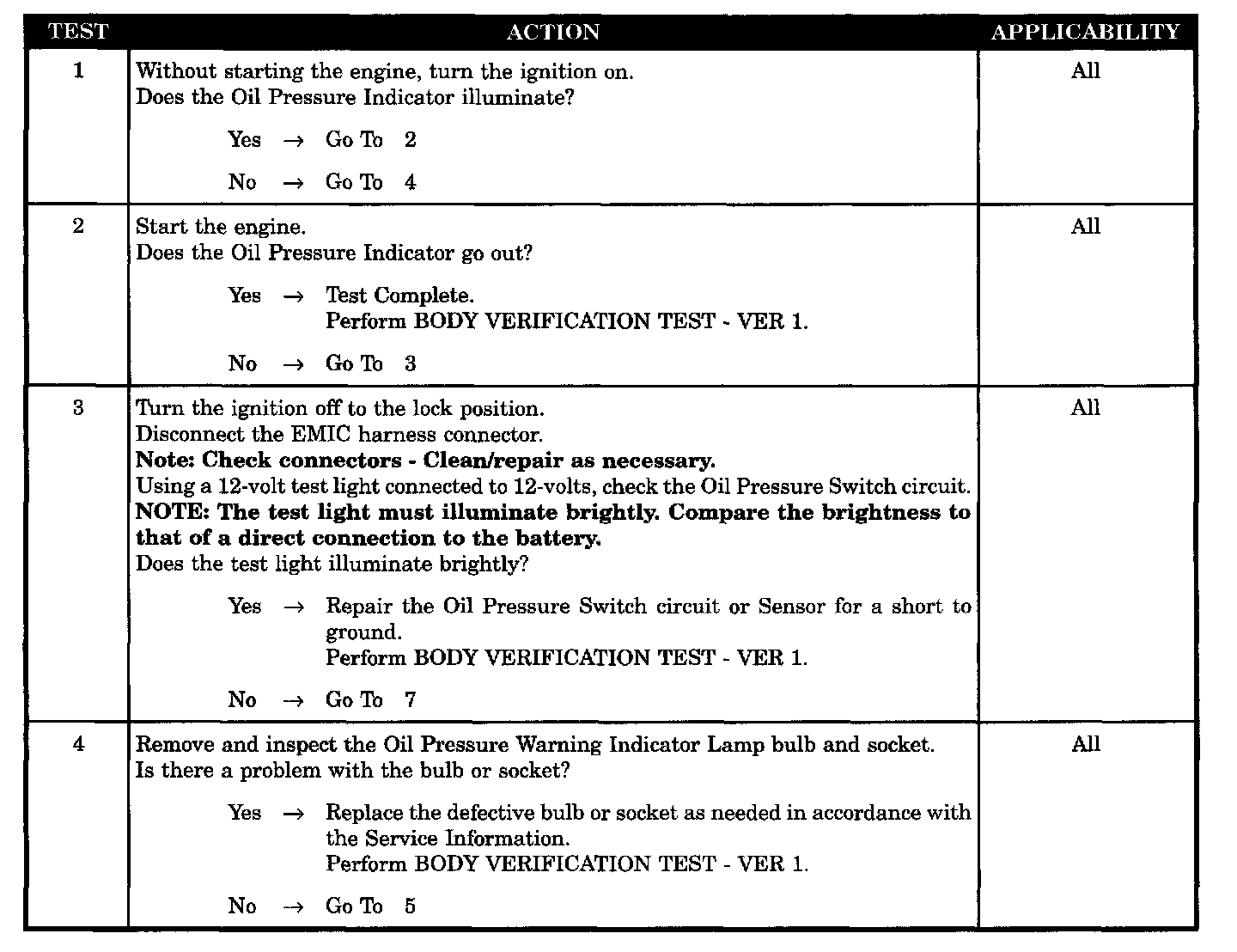

Tests 1 - 4:

Tests 5 - 7:

SYMPTOM
OIL PRESSURE INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Oil pressure indicator stuck on test
- Defective bulb or socket
- Fused ignition switch output circuit open
- Oil pressure switch circuit open
- Oil pressure switch circuit short to ground
- EMIC
