Instrument Cluster
>>
No TCM Bus Messages Received
No TCM Bus Messages Received

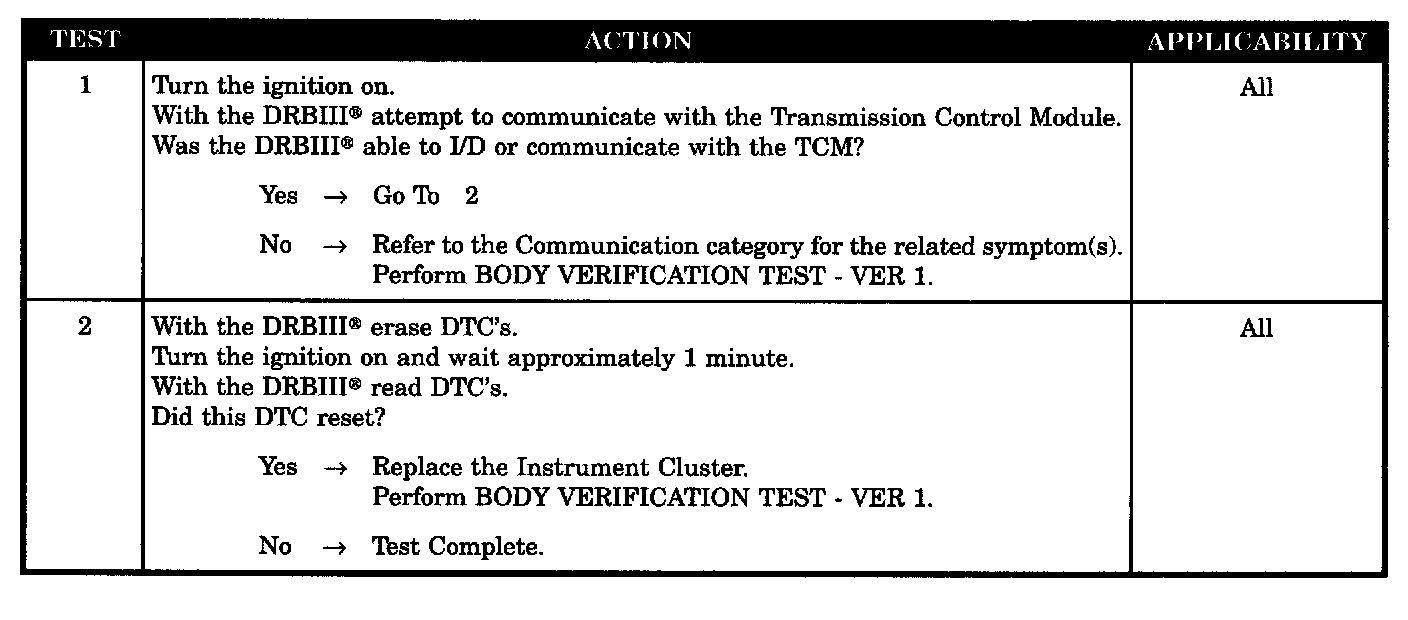

Tests 1 - 2:
SYMPTOM
NO TCM BUS MESSAGES RECEIVED
POSSIBLE CAUSES
-
Attempt to communicate with the TCM
-
Instrument cluster
