Instrument Cluster
>>
No PCM Bus Messages Received
No PCM Bus Messages Received

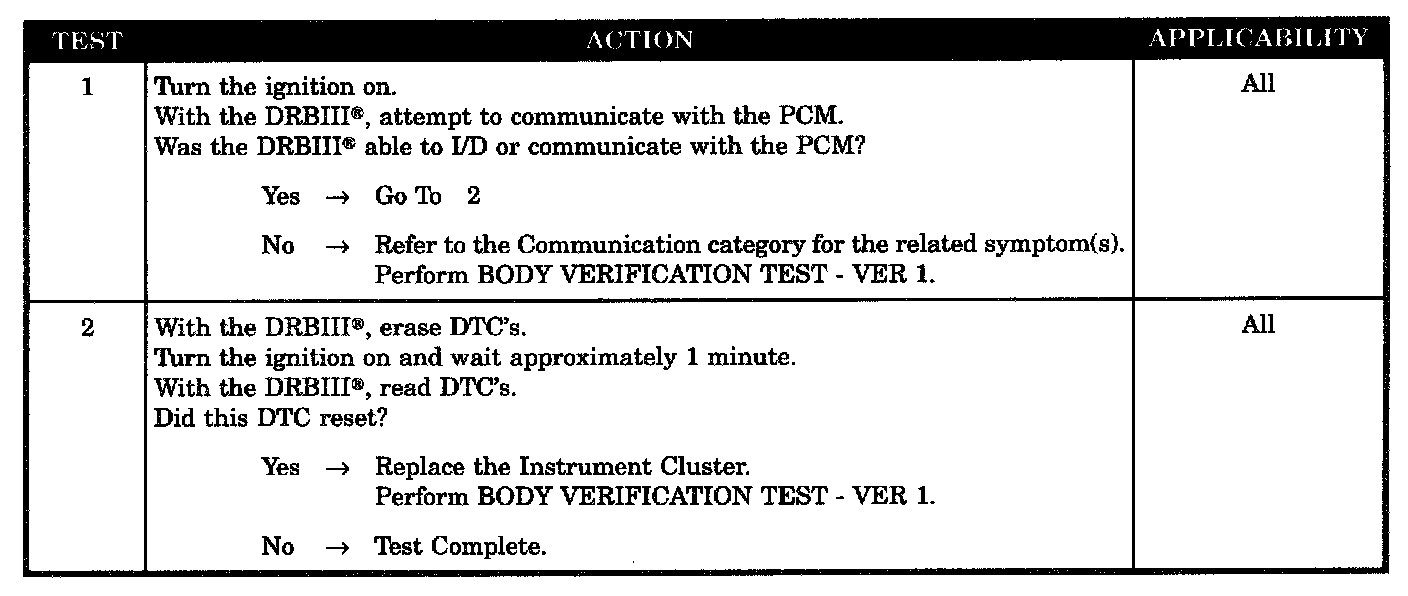

Tests 1 - 2:
SYMPTOM
NO PCM BUS MESSAGES RECEIVED
POSSIBLE CAUSES
-
PCM message not received
-
Instrument cluster
