Instrument Cluster
>>
No BCM Bus Messages Received
No BCM Bus Messages Received

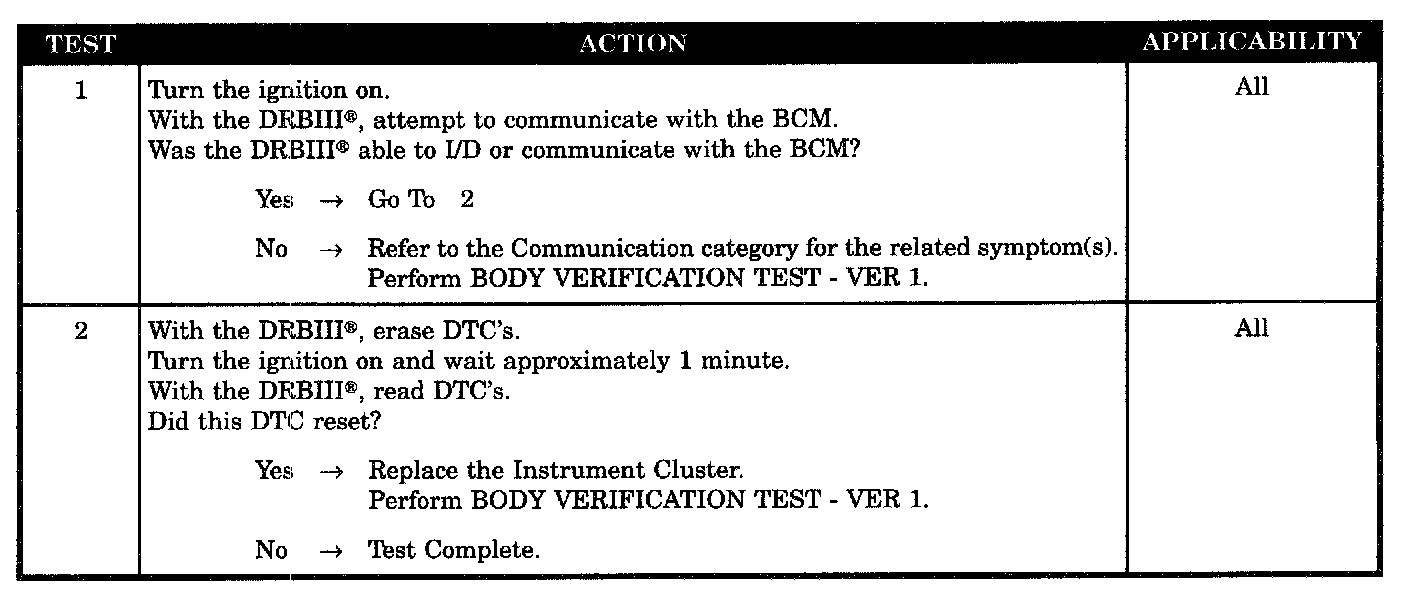

Tests 1 - 2:
SYMPTOM
NO BCM BUS MESSAGES RECEIVED
POSSIBLE CAUSES
-
Attempt to communicate with the body control module
-
Instrument cluster
