Chrysler
>>
2001
>>
Sebring Convertible V6-2.7L VIN U
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster
>>
No ABS Bus Messages Received
No ABS Bus Messages Received

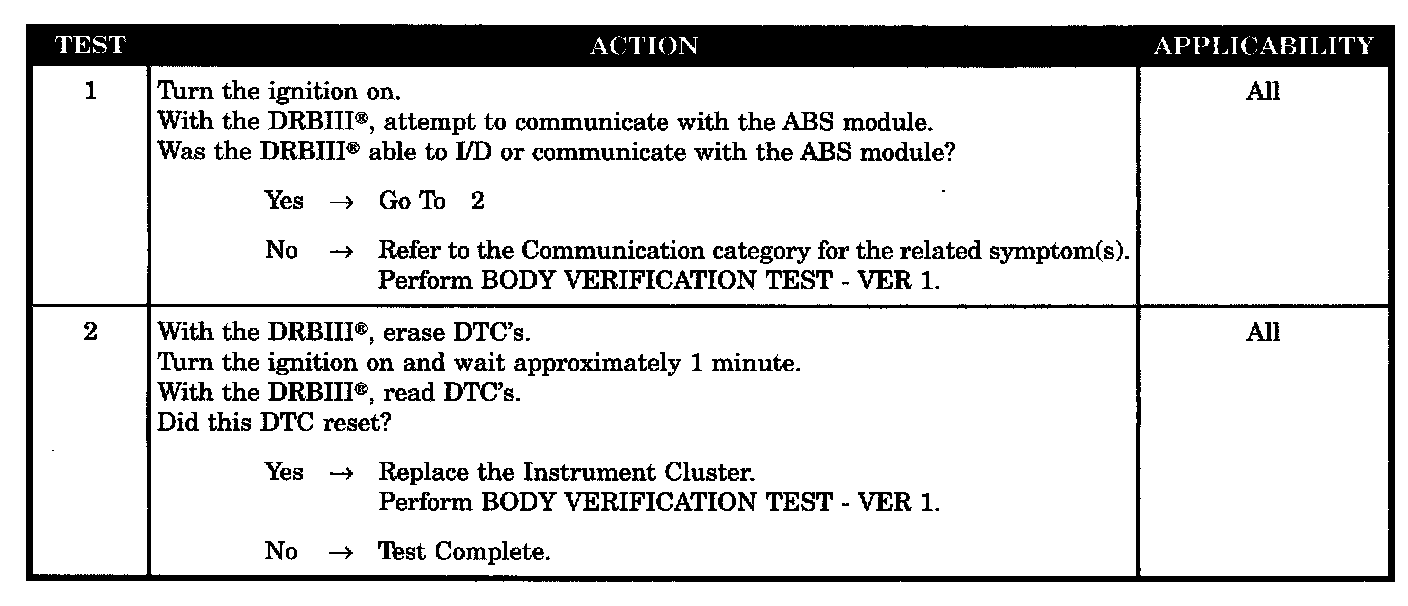

Tests 1 - 2:
SYMPTOM
NO ABS BUS MESSAGES RECEIVED
POSSIBLE CAUSES
-
Attempt to communicate with the anti-lock brake system module
-
Instrument cluster
