Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Malfunction Indicator Lamp Not Operating Properly

Malfunction Indicator Lamp Not Operating Properly

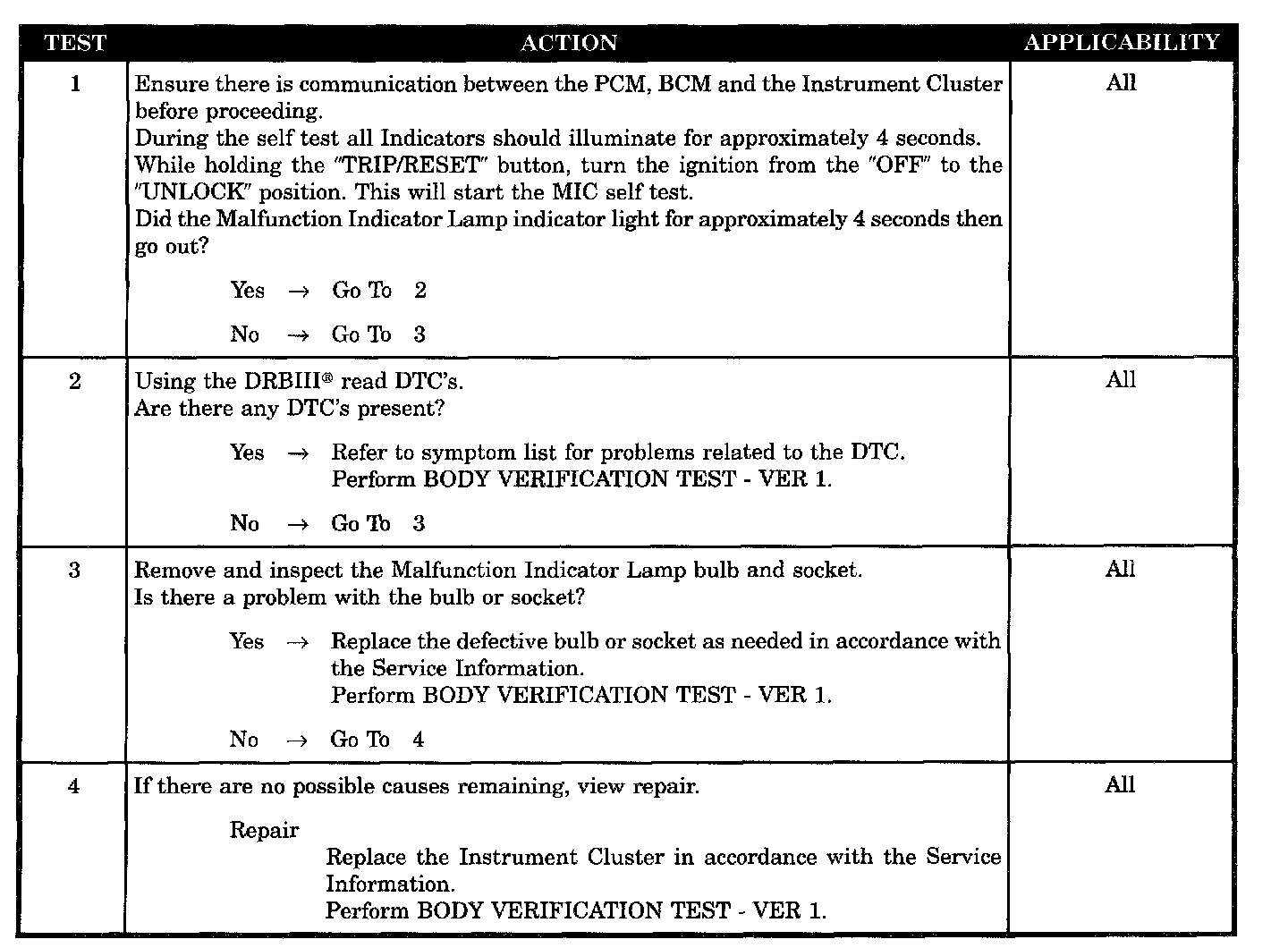

Tests 1 - 4:

SYMPTOM
MALFUNCTION INDICATOR LAMP NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Check DTCS
- Defective bulb or socket
- EMIC
