Low Fuel Warning Indicator Not Operating Properly

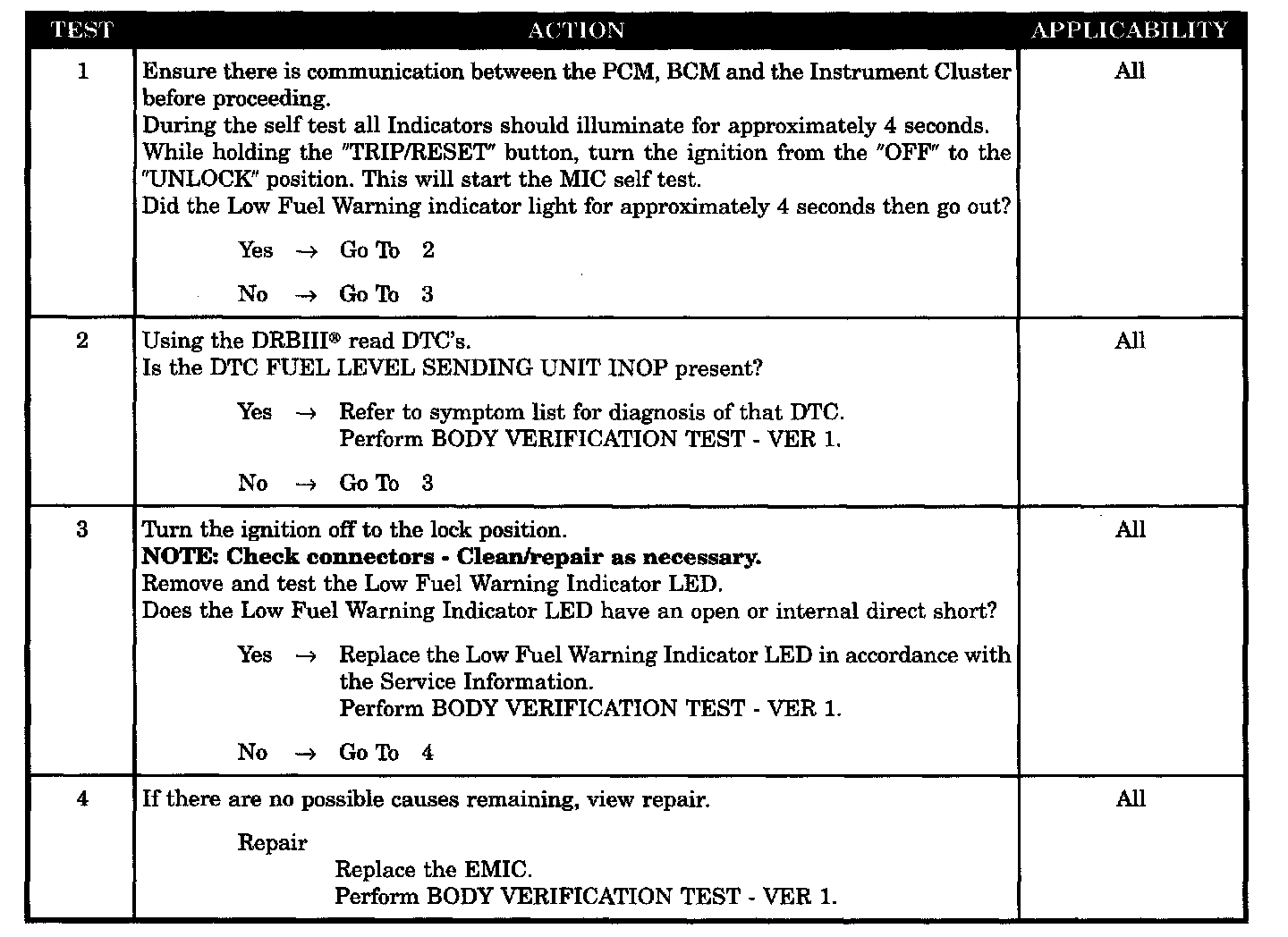

Tests 1 - 4:




SYMPTOM
LOW FUEL WARNING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Check DTCS
- Low fuel warning indicator led
- EMIC - internal error
