Fuel Level Sending Unit Inoperative

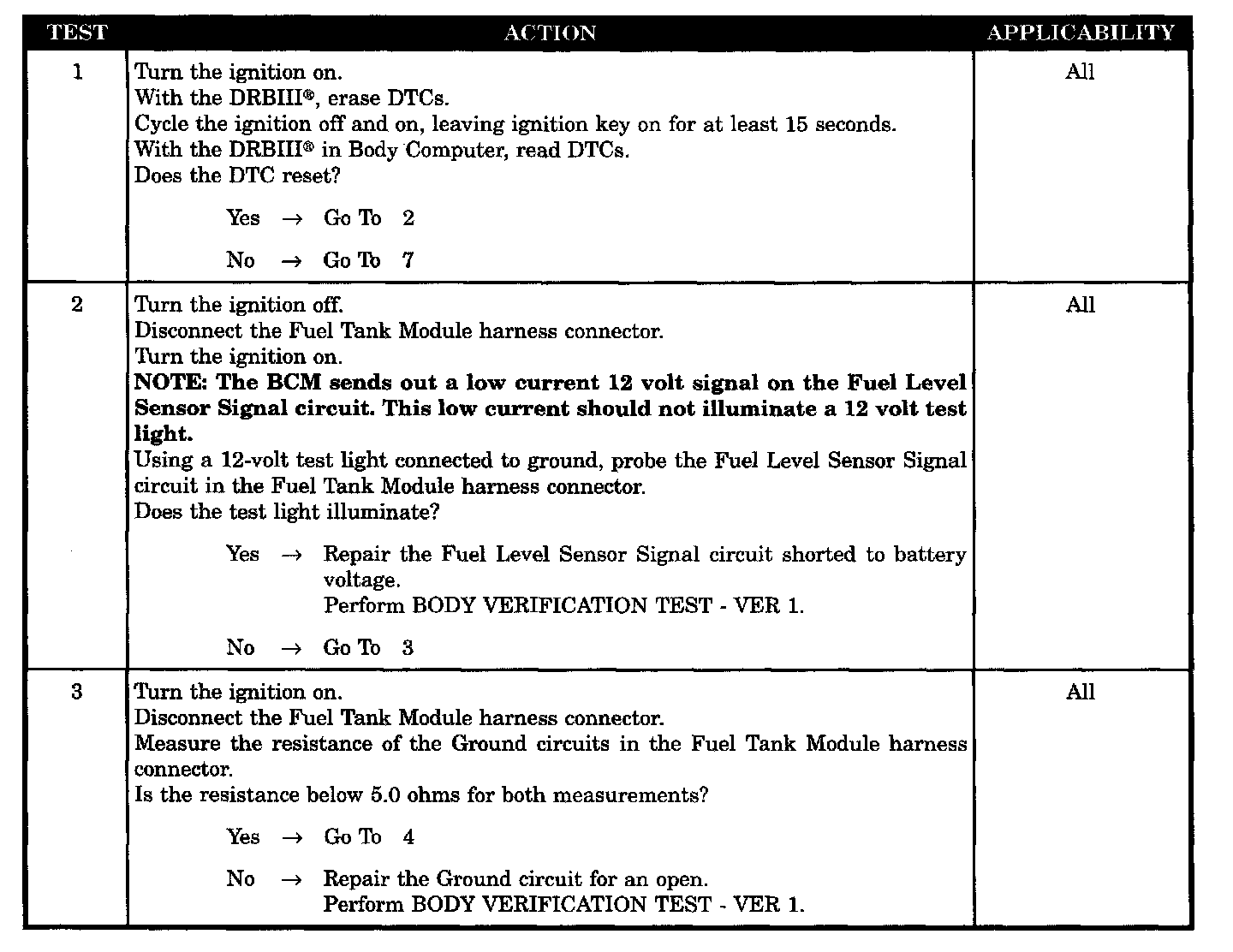

Tests 1 - 3:

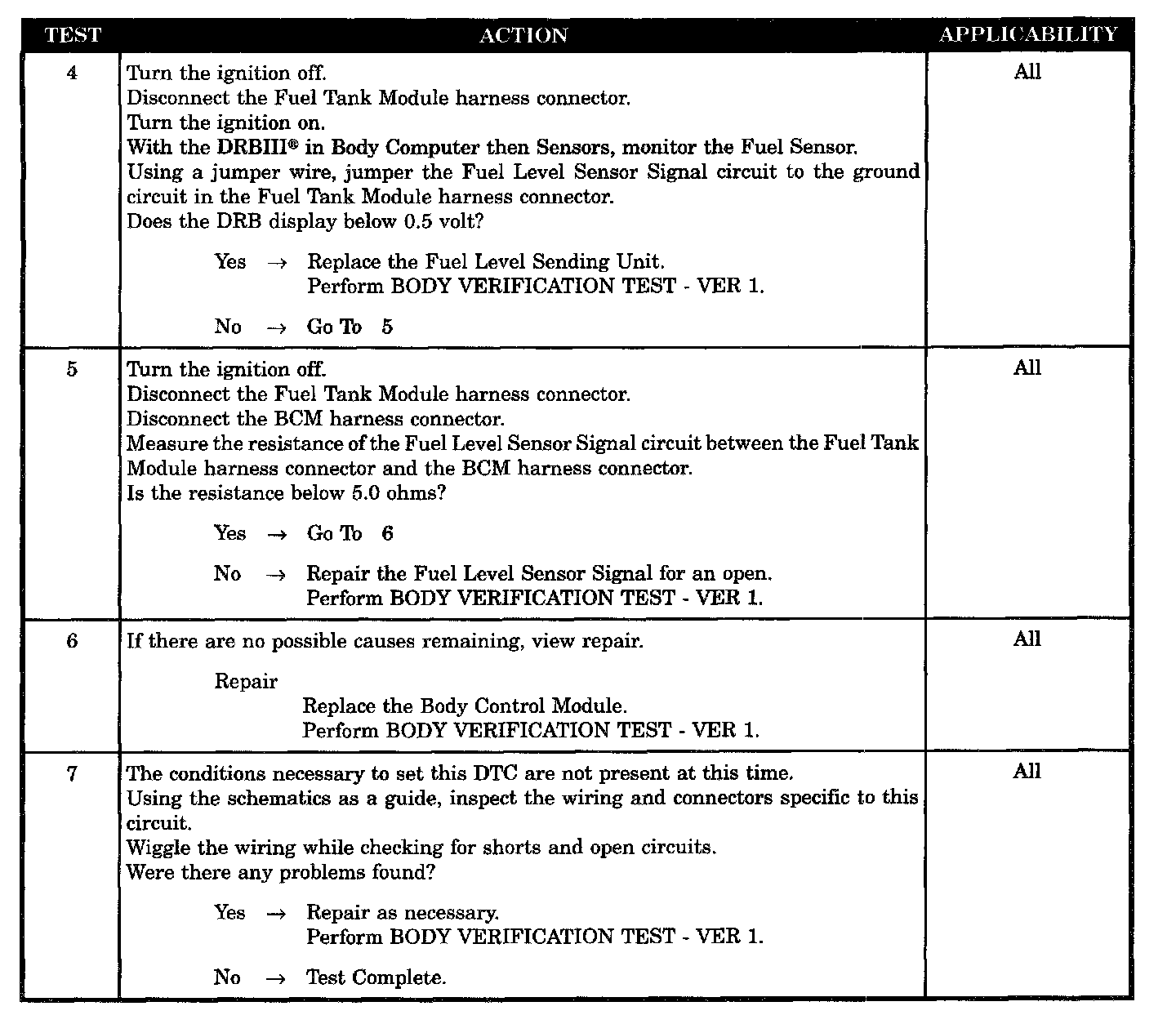

Tests 4 - 7:

SYMPTOM
FUEL LEVEL SENDING UNIT INOP

POSSIBLE CAUSES
- Fuel level sensor signal shorted to B+
- Ground circuit open
- Intermittent wiring and connectors
- Fuel level sending unit operation
- Fuel level sensor signal circuit open
- BCM
