Fuel Gauge Not Operating Properly

Tests 1 - 4:

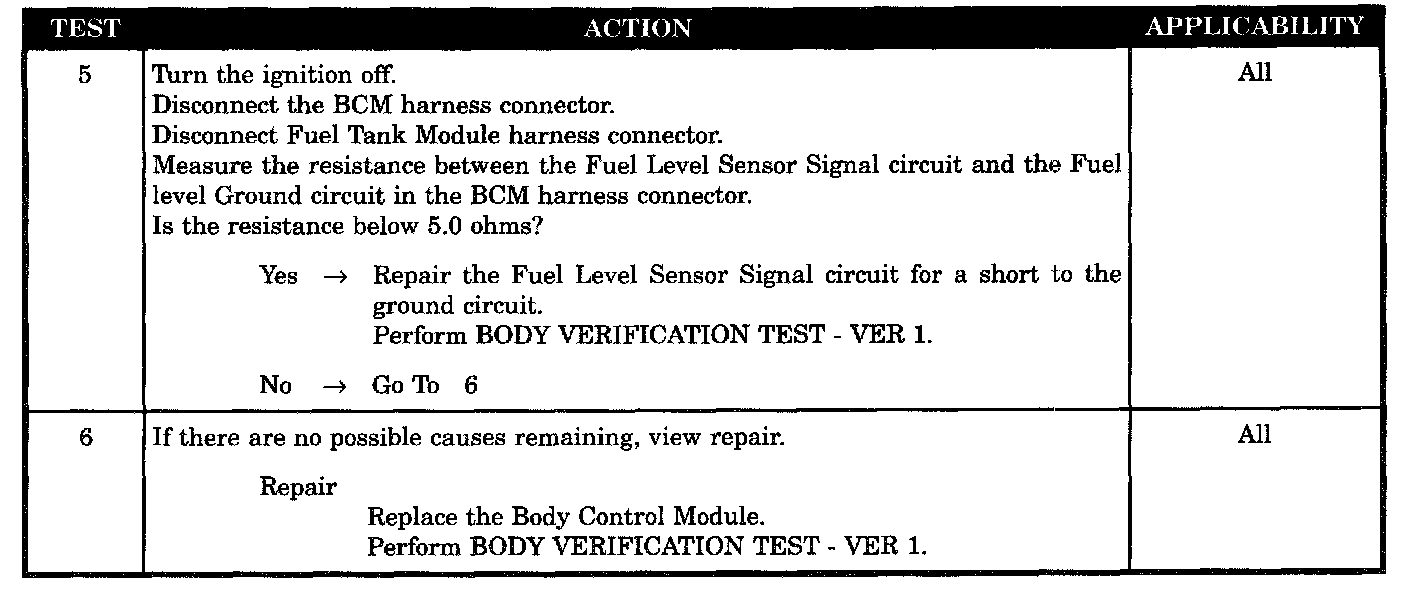

Tests 5 - 6:

SYMPTOM
FUEL GAUGE NOT OPERATING PROPERLY

POSSIBLE CAUSES
- MIC self test
- Fuel level gauge operation
- Fuel level sending unit operation
- Fuel level sensor signal shorted to ground
- Fuel level signal circuit short to ground circuit
- BCM
