Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Engine Coolant Temperature Gauge Not Operating Properly

Engine Coolant Temperature Gauge Not Operating Properly

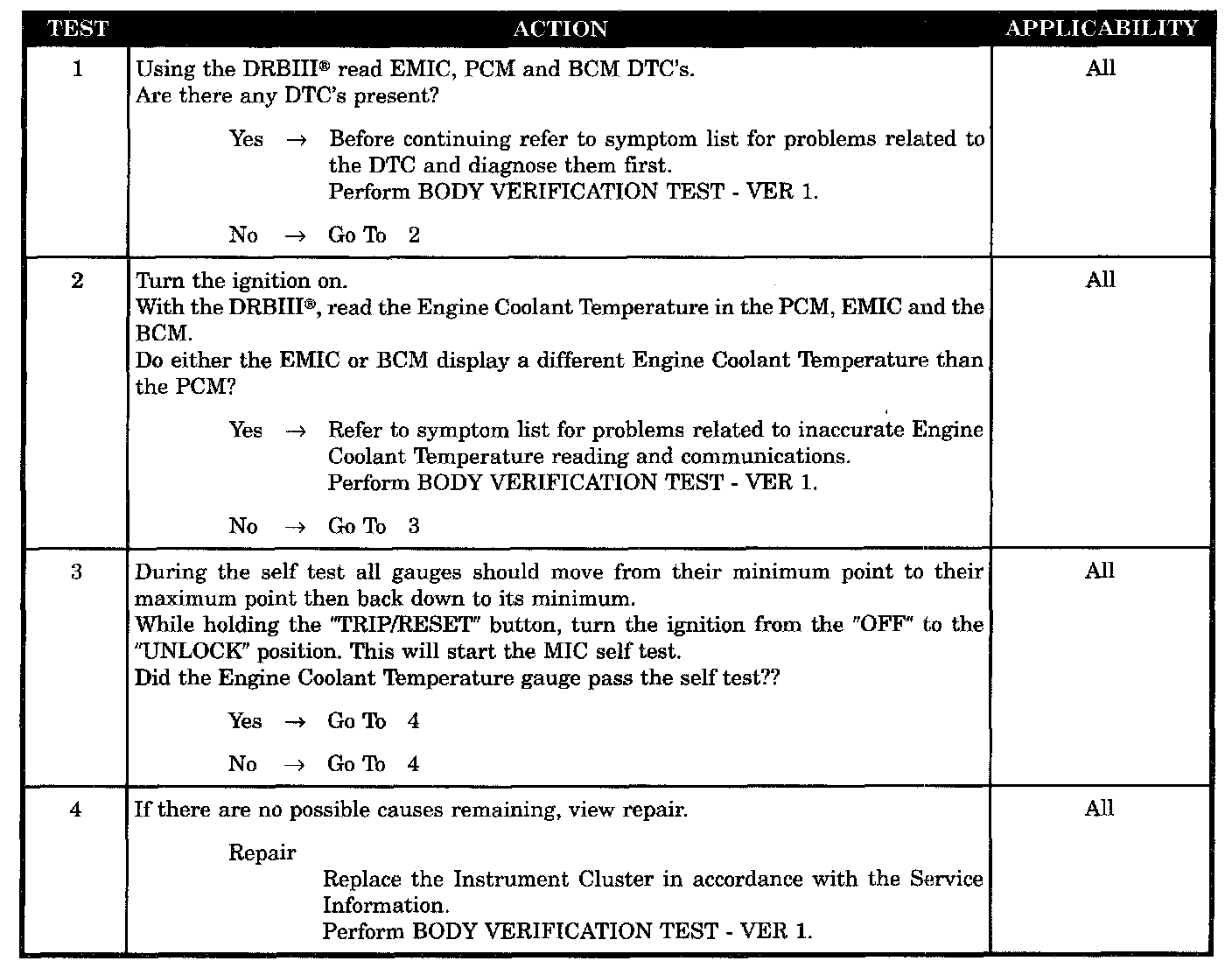

Tests 1 - 4:




SYMPTOM
ENGINE COOLANT TEMPERATURE GAUGE NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Check DTCS
- Engine coolant temperature message
- EMIC
