Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Charging System Warning Indicator Not Operating Properly

Charging System Warning Indicator Not Operating Properly

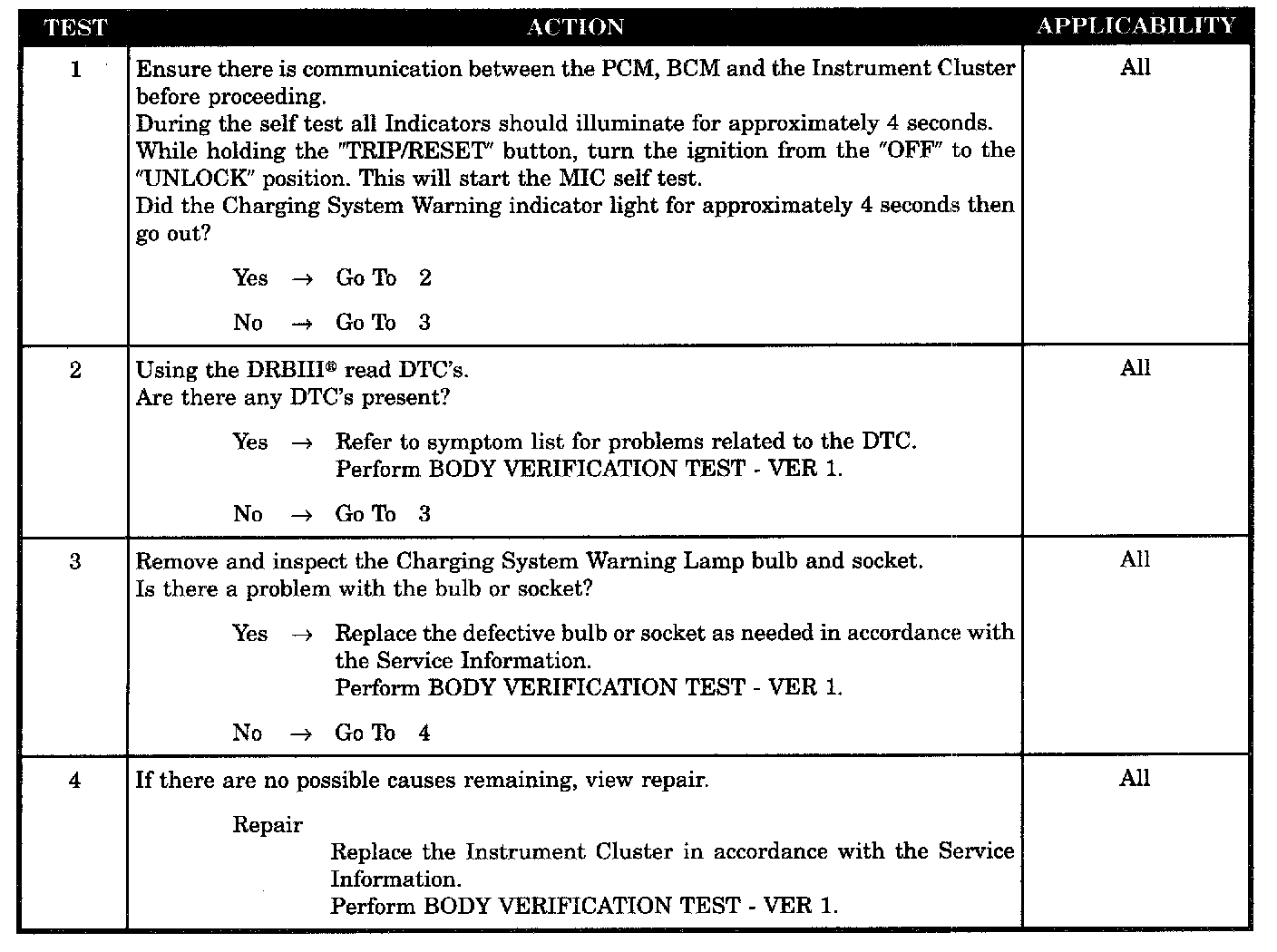

Tests 1 - 4:




SYMPTOM
CHARGING SYSTEM WARNING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Check DTCS
- Defective bulb or socket
- EMIC
