Airbag Lamp Circuit Shorted

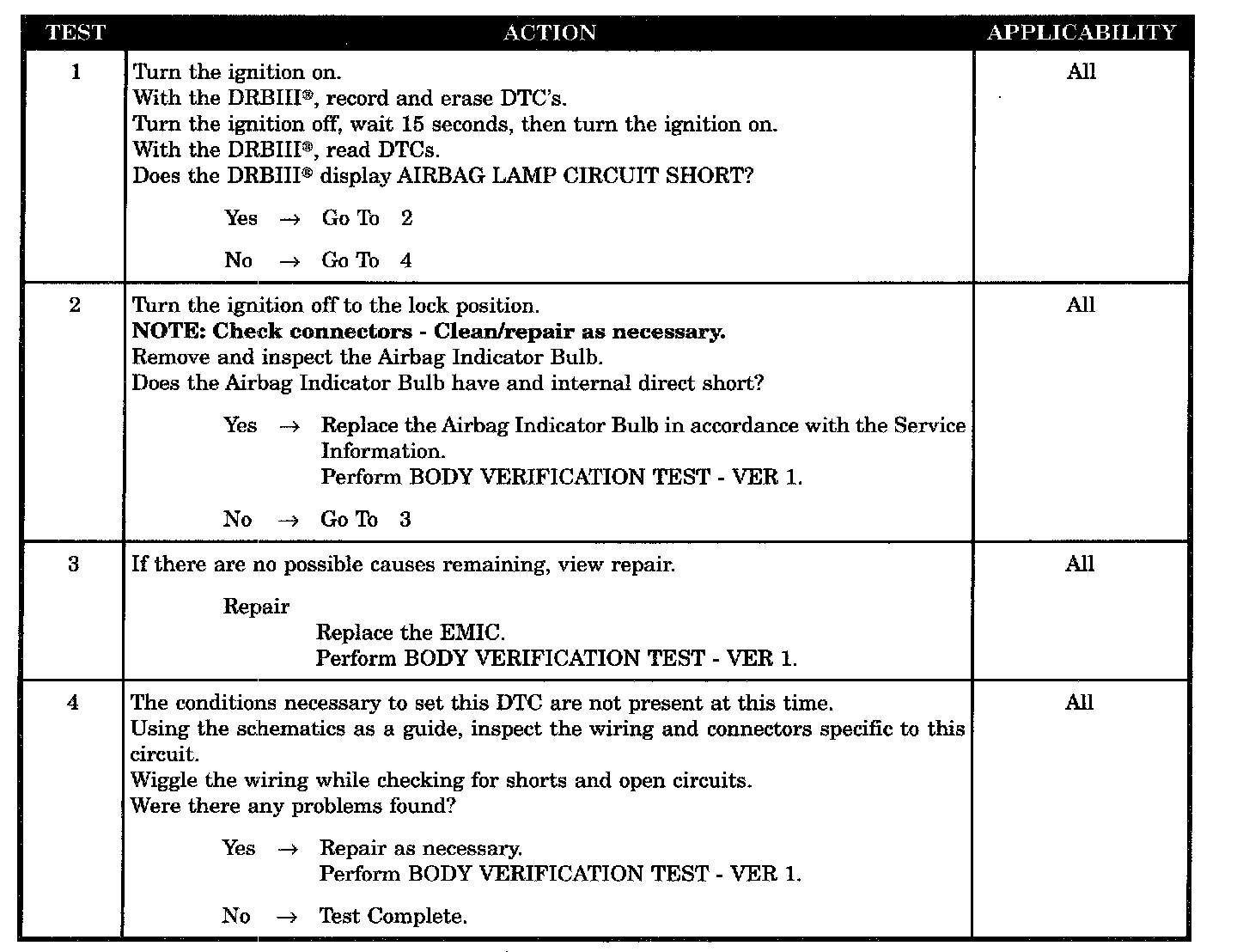

Tests 1 - 4:

SYMPTOM
AIRBAG LAMP CIRCUIT SHORT

WHEN MONITORED
At power up or when the bulb is requested.

SET CONDITION
When there is a short detected in the Airbag bulb circuit.

POSSIBLE CAUSES
- Intermittent wiring and connectors
- Airbag indicator bulb
- EMIC - internal error
