Airbag Lamp Circuit Open

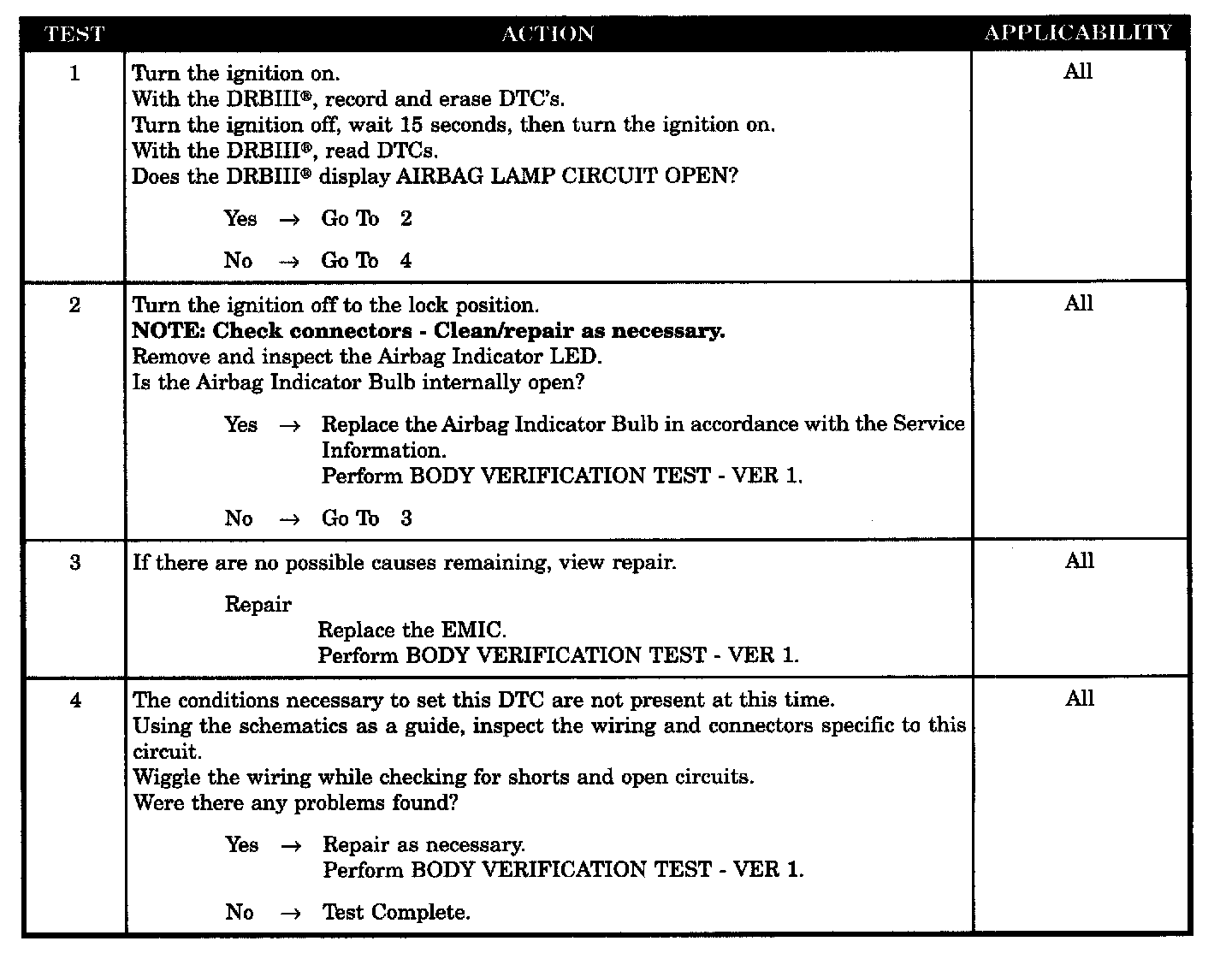

Tests 1 - 4:

SYMPTOM
AIRBAG LAMP CIRCUIT OPEN

WHEN MONITORED
At power up or when the bulb is requested.

SET CONDITION
When there is an open detected in the Airbag bulb circuit.

POSSIBLE CAUSES
- Intermittent wiring and connectors
- Airbag indicator bulb
- EMIC - internal error
