ABS Lamp Circuit Shorted

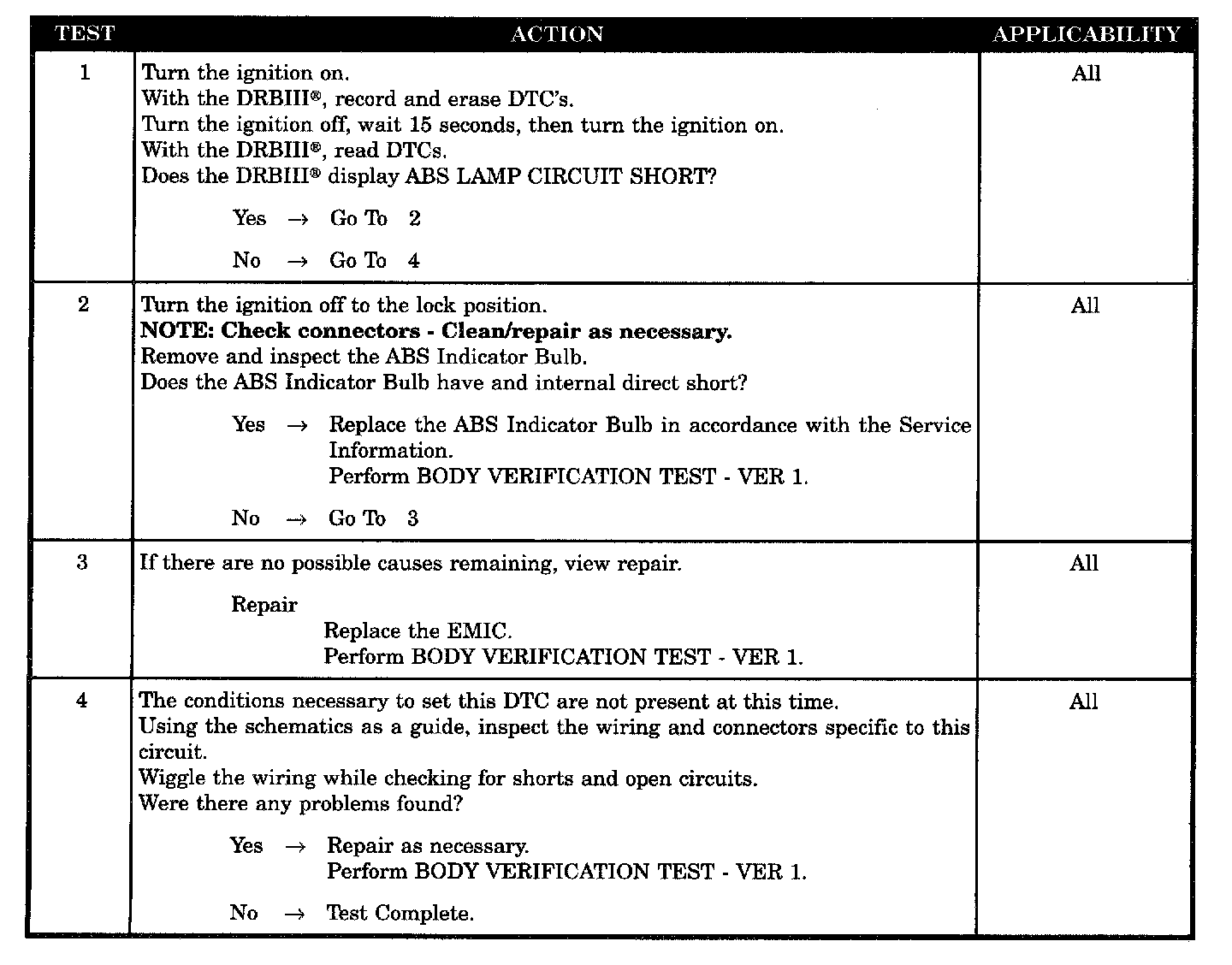

Tests 1 - 4:

SYMPTOM
ABS LAMP CIRCUIT SHORT

WHEN MONITORED
At power up or when the bulb is requested.

SET CONDITION
When there is a short detected in the ABS bulb circuit.

POSSIBLE CAUSES
- Intermittent wiring and connectors
- ABS indicator bulb
- EMIC internal error
