ABS Lamp Circuit Open

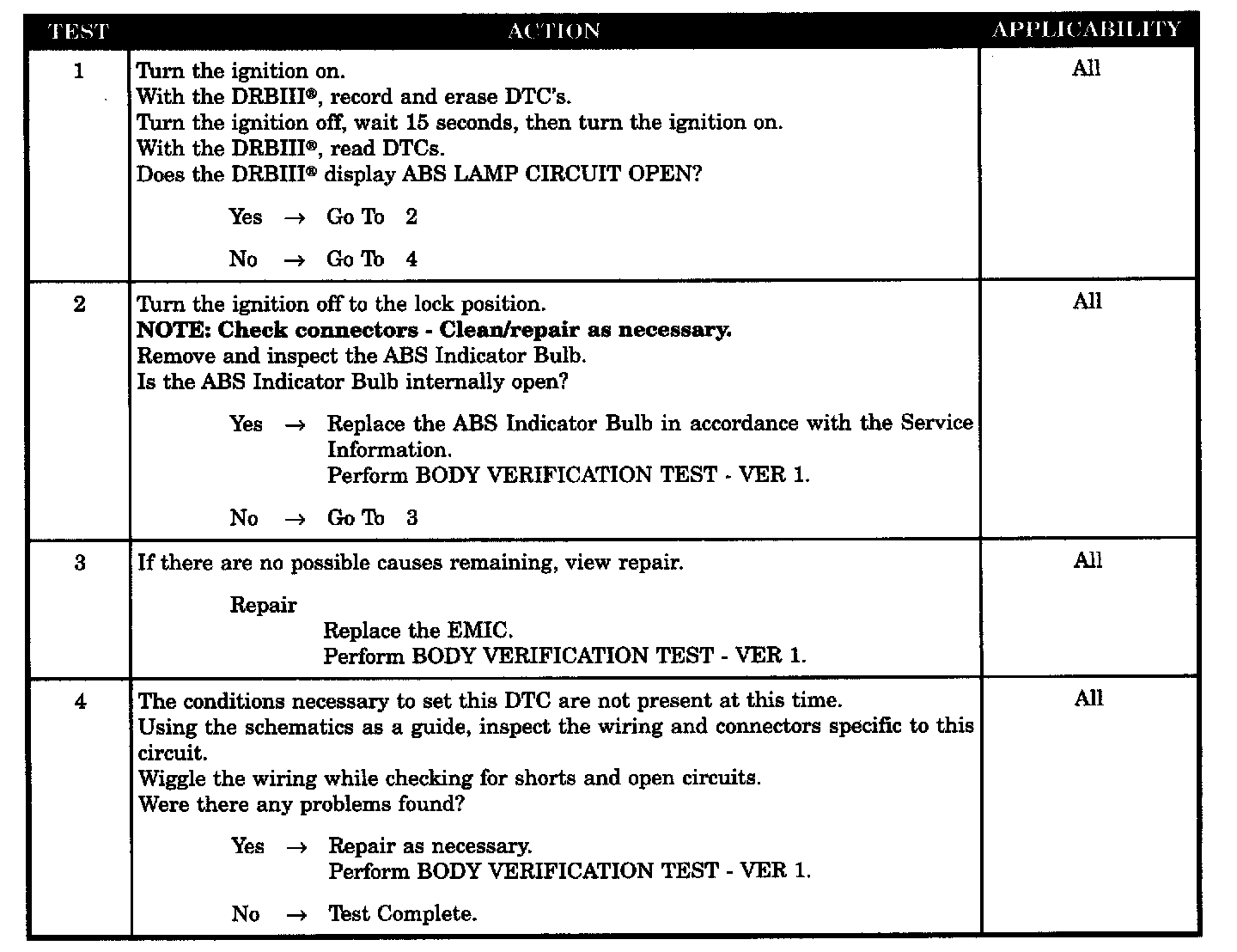

Tests 1 - 4:

SYMPTOM
ABS LAMP CIRCUIT OPEN

WHEN MONITORED
At power up or when the bulb is requested.

SET CONDITION
When there is an open detected in the ABS bulb circuit.

POSSIBLE CAUSES
- Intermittent wiring and connectors
- ABS indicator bulb
- EMIC - internal error
