Blower Motor Inoperative

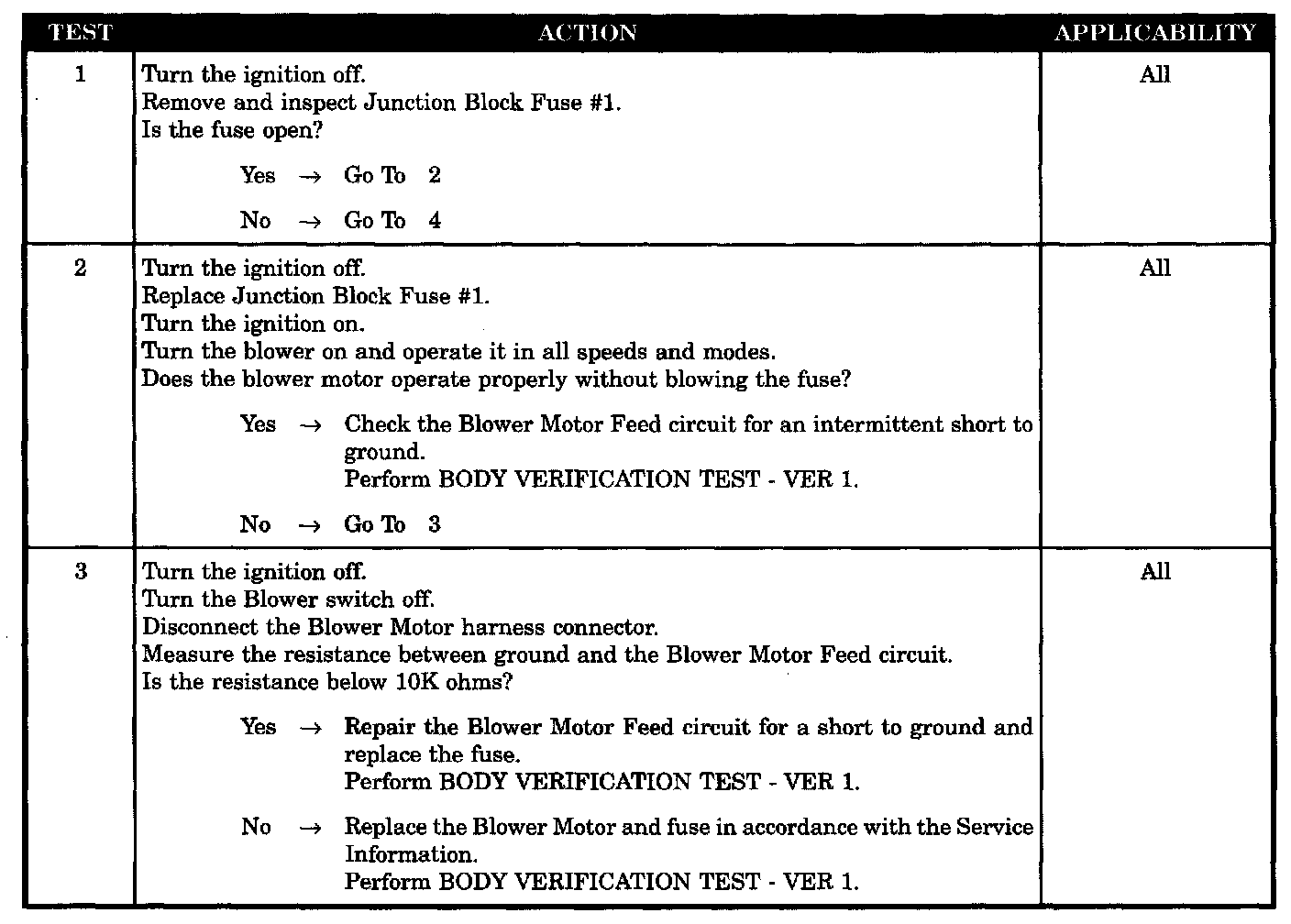

Tests 1 - 3:

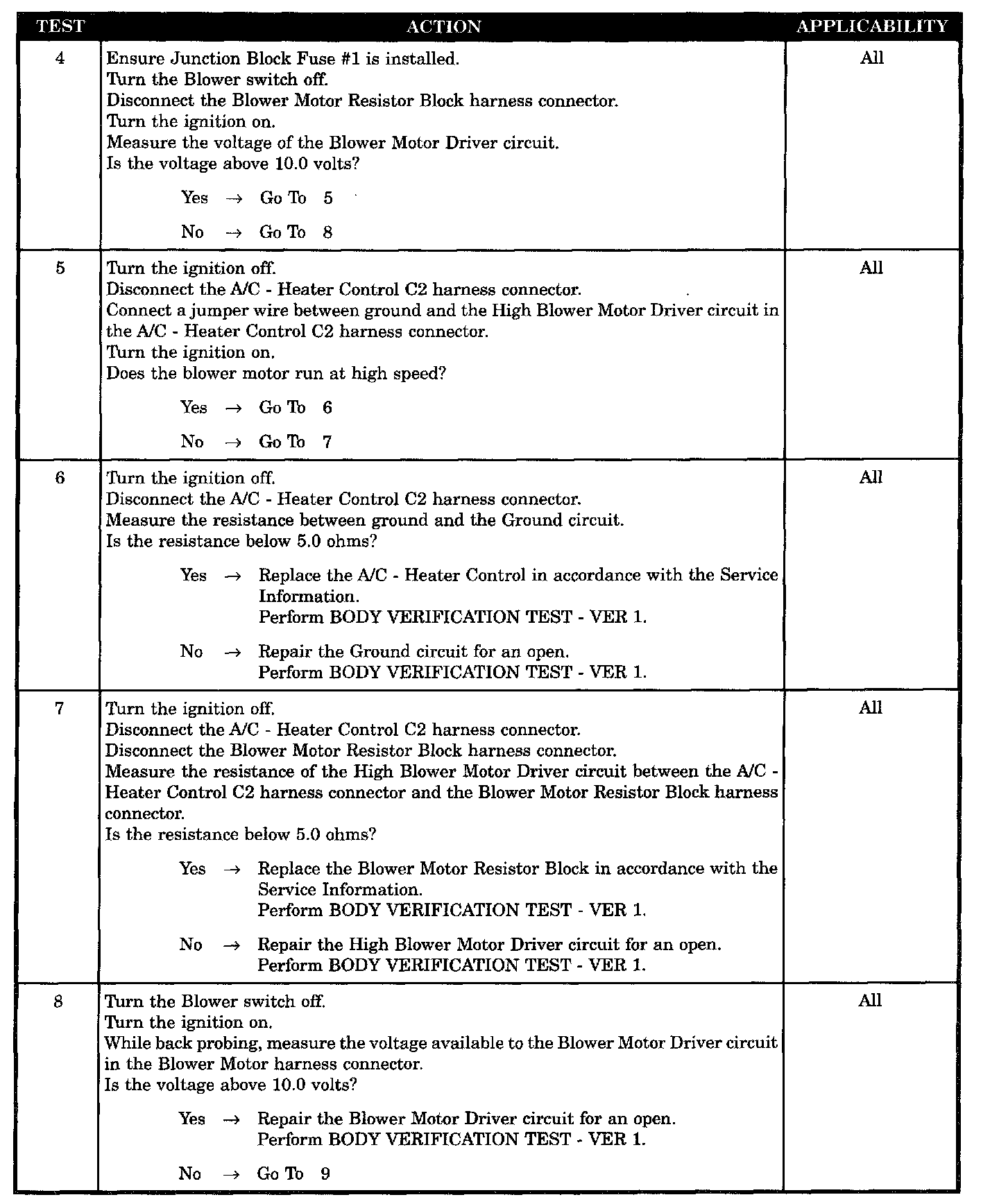

Tests 4 - 8:

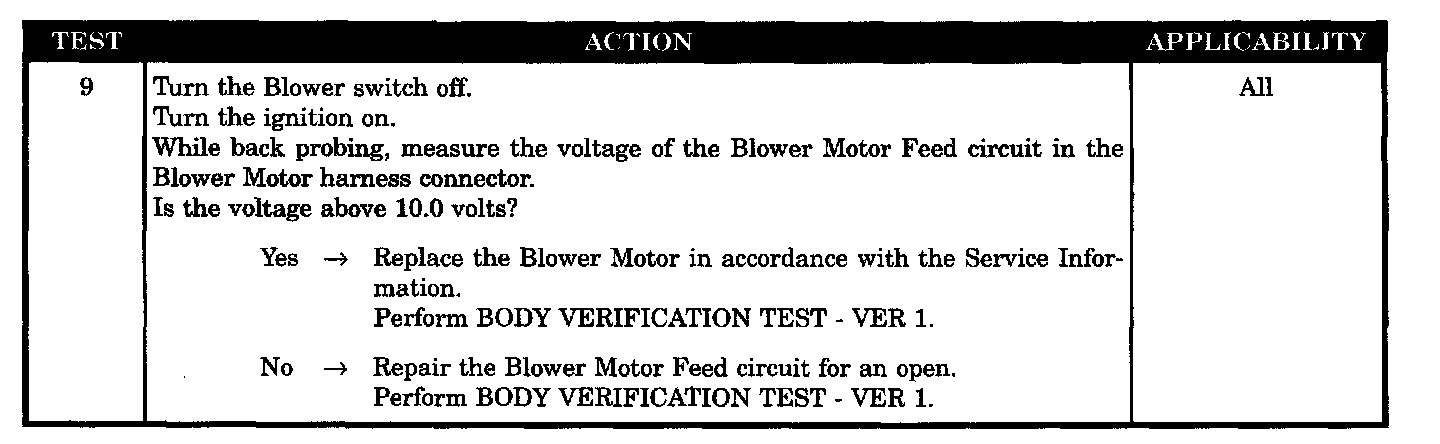

Test 9:

SYMPTOM
BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Junction block fuse # 1
- Blower motor feed circuit shorted to ground
- Blower motor shorted to ground
- Ground circuit open
- A/C - heater control open
- Blower motor driver circuit open
- Resistor-open hi blower motor driver
- Blower motor driver circuit open
- Blower motor feed circuit open
- Blower motor open
