High Beam Headlamps Will Not Turn On

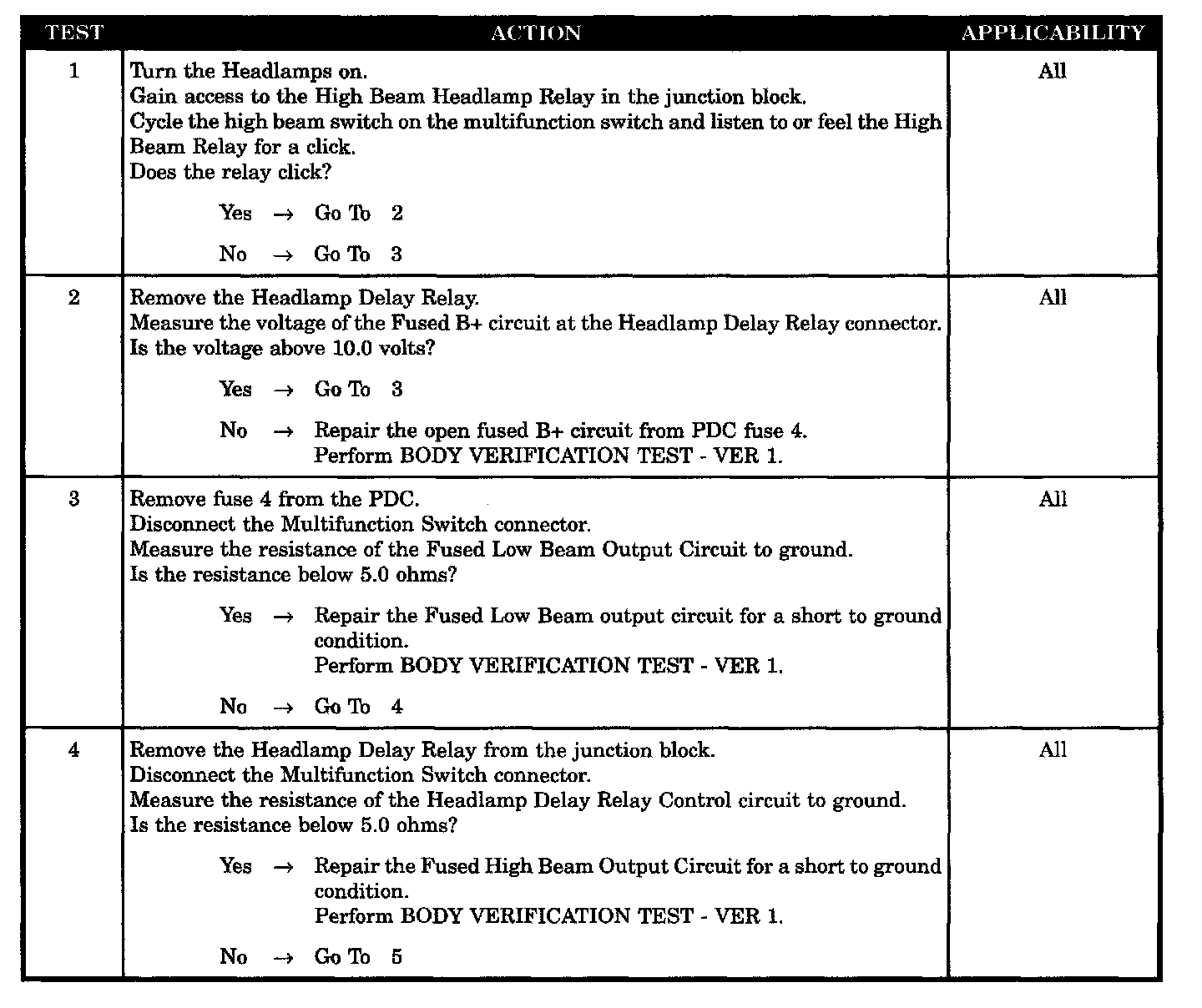

Tests 1 - 4:

Tests 5 - 7:

SYMPTOM
HIGH BEAM READLAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Open fused B+
- Fused low beam output circuit short to ground
- Fused high beam output circuit short to ground
- Headlamp delay relay
- Fused low beam output circuit open
- Headlamp delay relay control circuit open
- Multifunction switch
