No Response From PCM (SCI Bus) - Body

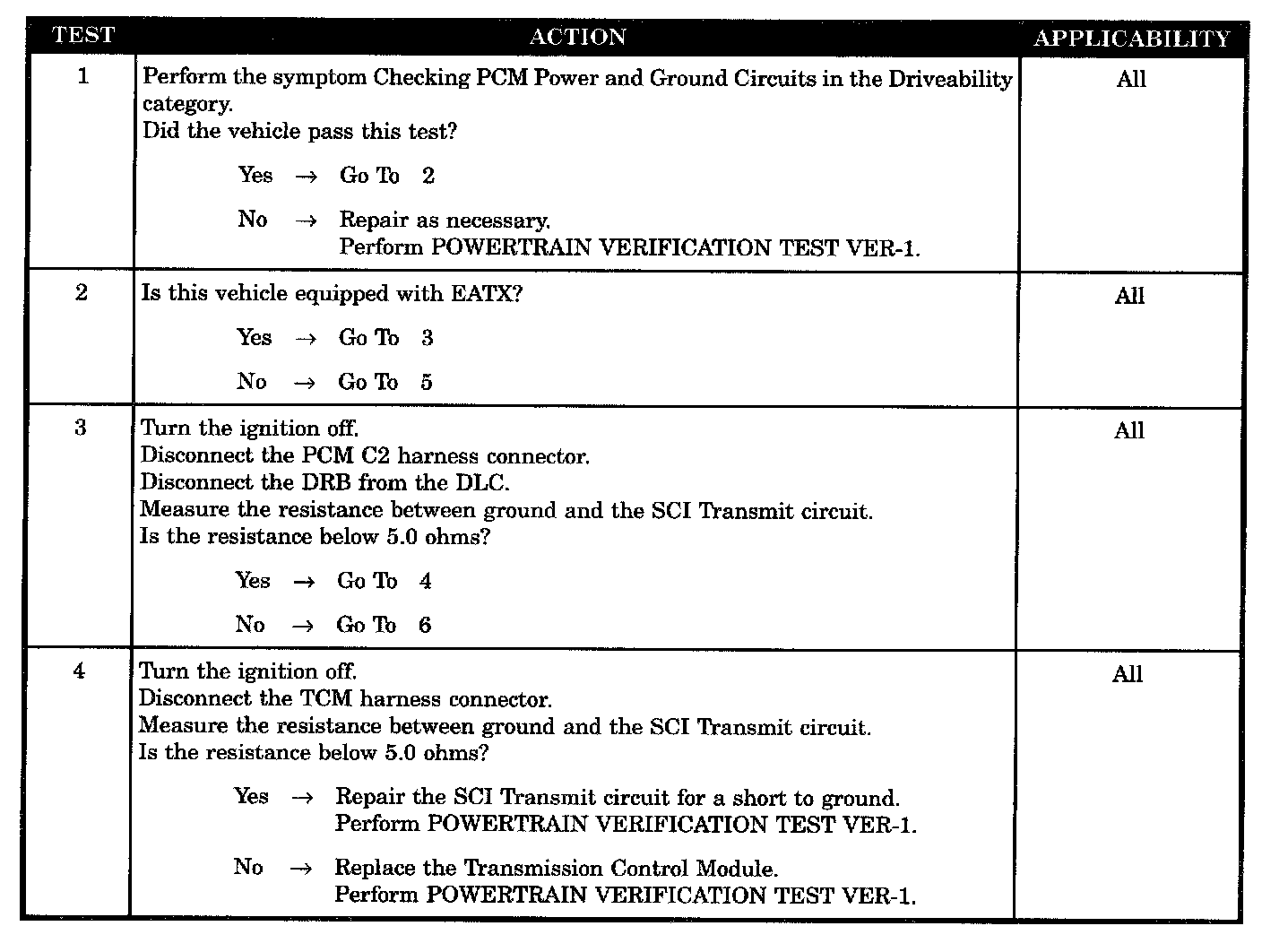

Tests 1 - 4:

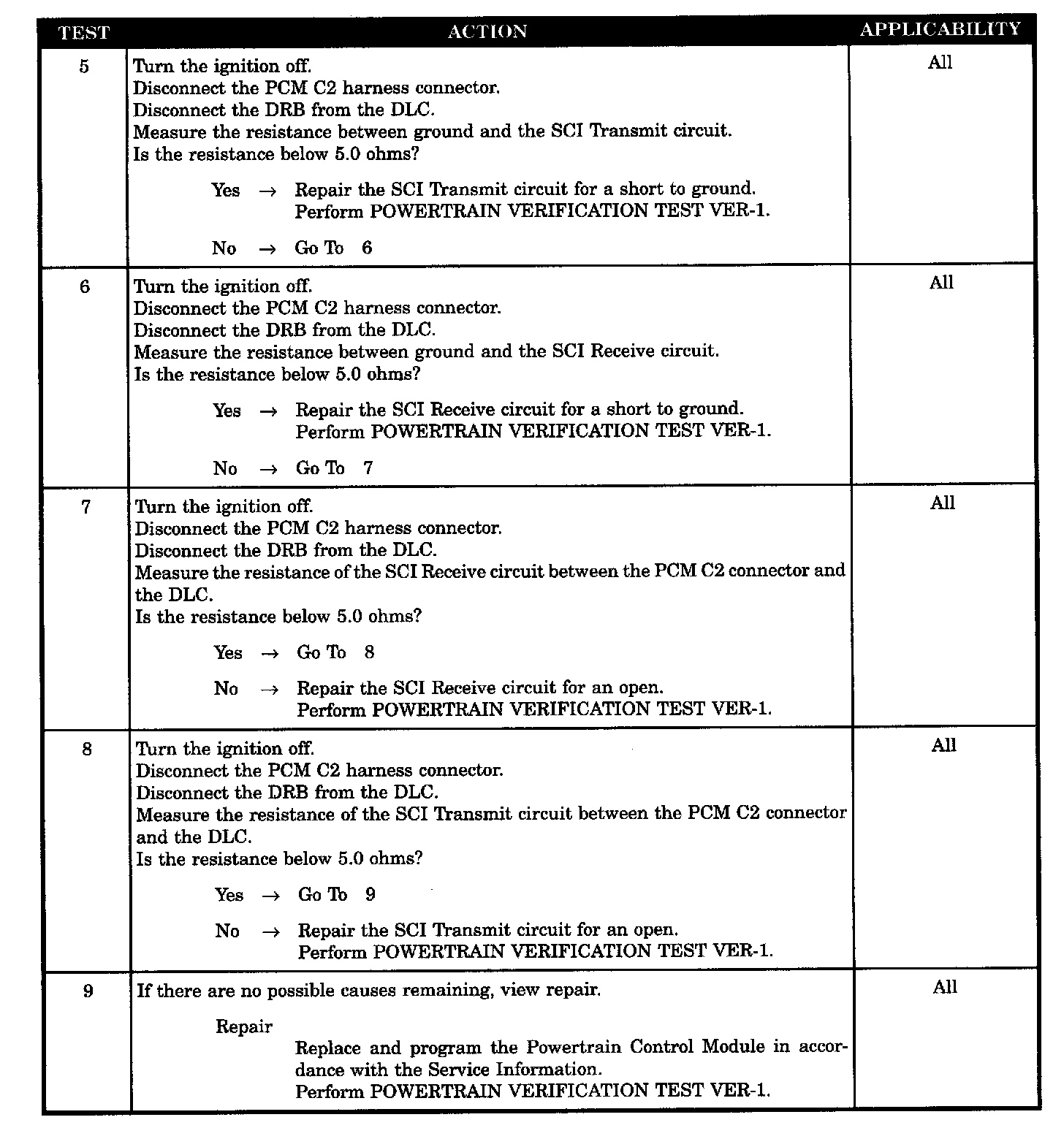

Tests 5 - 9:

SYMPTOM
NO RESPONSE FROM PCM (SCI ONLY)

POSSIBLE CAUSES
- SCI transmit circuit shorted to ground
- Check PCM powers and grounds
- Transmission control module
- SCI transmit circuit shorted to ground
- SCI receive circuit shorted to ground
- SCI receive circuit open
- SCI transmit circuit open
- Powertrain control module
