Front Output Shorted - Base Audio System

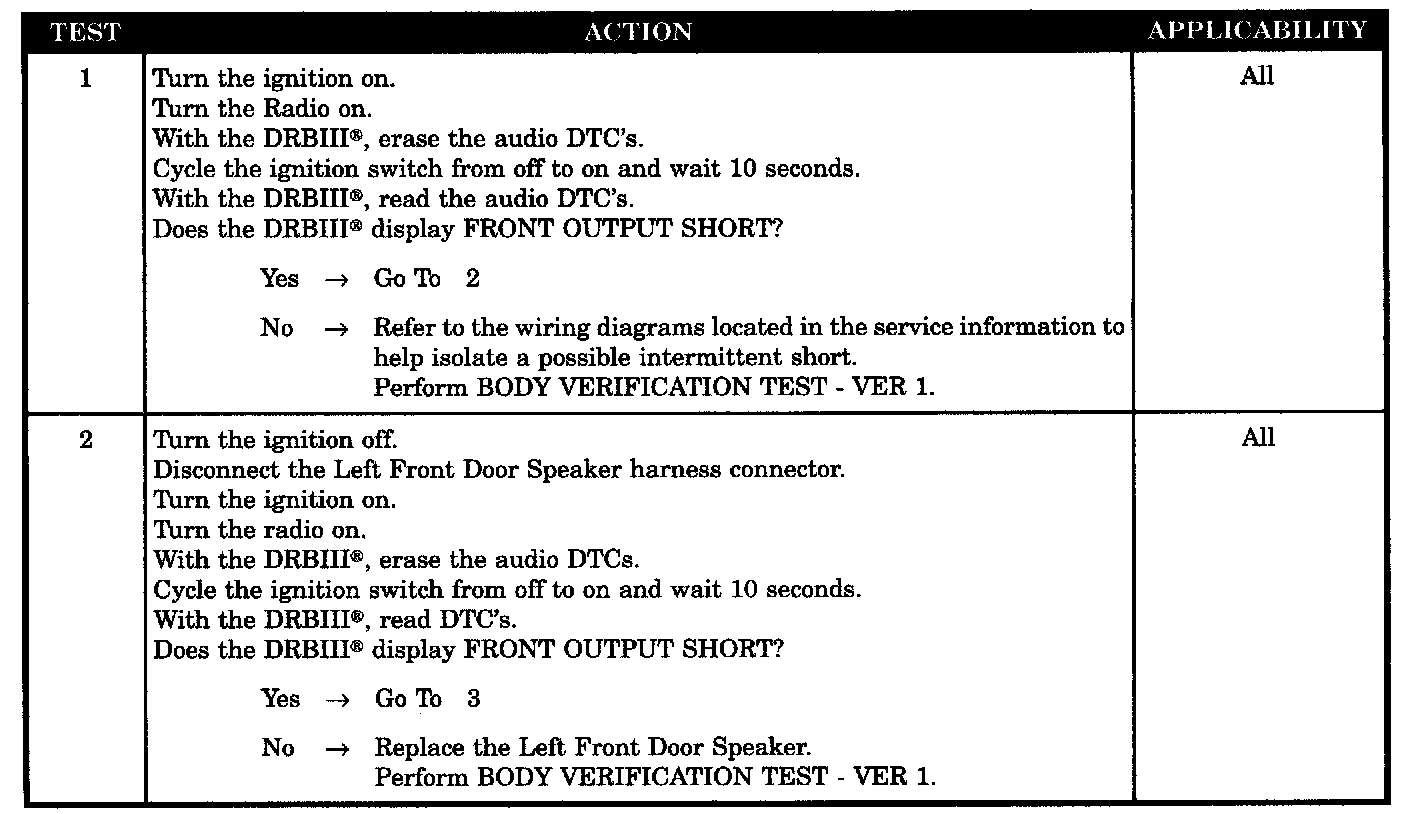

Tests 1 - 2:

Tests 3 - 7:

SYMPTOM
FRONT OUTPUT SHORT - BASE RADIO

WHEN MONITORED
Ignition in RUN and IOD fuse installed.

SET CONDITION
The radio has sensed a short on the front output for more than 10 seconds.

POSSIBLE CAUSES
- Determine fault
- Left front door speaker
- Right front door speaker
- (+) circuit shorted to ground
- (-) circuit shorted to ground
- Speaker (+) & (-) circuits shorted together
- Speaker section of radio
