CD Changer Power Supply Too High

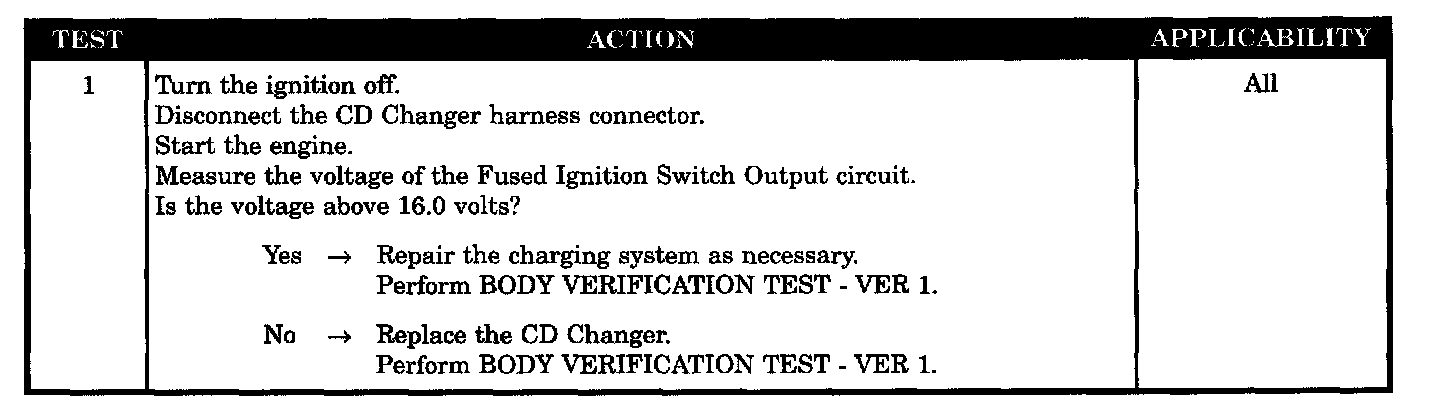

Test 1:




SYMPTOM
CD CHANGER POWER SUPPLY TOO HIGH

WHEN MONITORED
Continuously with the ignition and CD Changer turned ON.

SET CONDITION
The code will set if the radio detects voltage above 16.0 volts for 5 seconds.

POSSIBLE CAUSES
- CD changer power supply too high
- Power supply of CD changer
