Cluster Lamp Failure

Symptom:
CLUSTER LAMP FAILURE

When Monitored and Set Condition:
CLUSTER LAMP FAILURE

When Monitored: Key ON. After Key-ON bulb check.

Set Condition: When the instrument cluster informs the CAB that the cluster cannot turn on the ABS Lamp.

POSSIBLE CAUSES

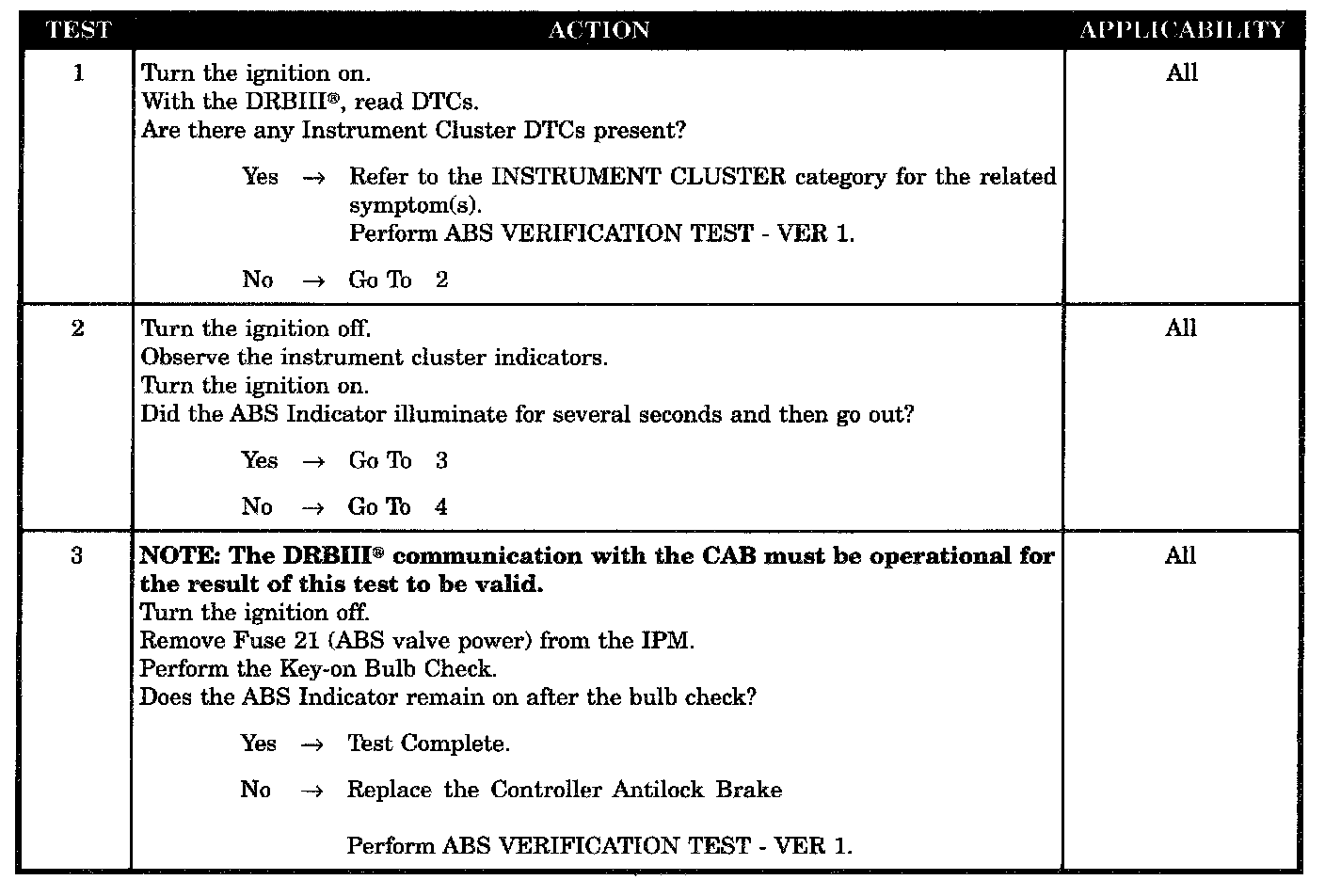

CLUSTER DTC PRESENT

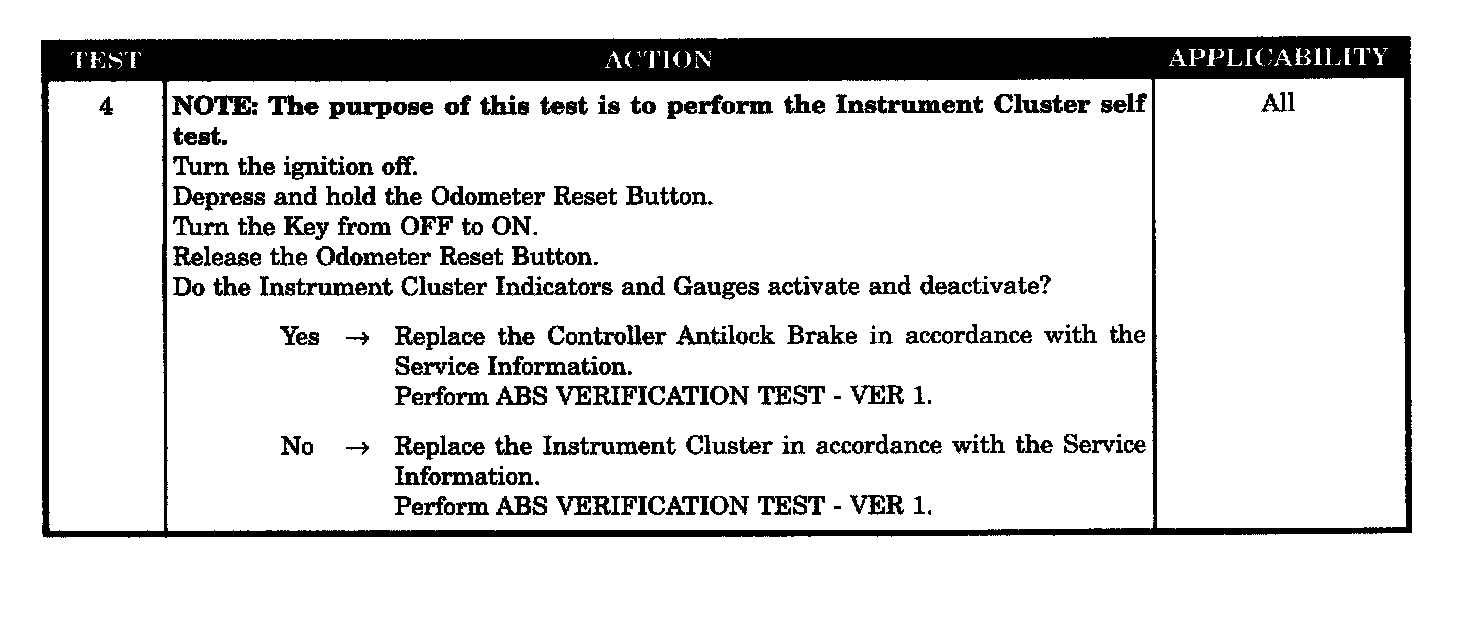

CLUSTER INTERNAL FAULT
CAB -- NO ABS INDICATOR MESSAGE
CAB -- ABS INDICATOR FAULT
