Windshield Washer Spray Nozzle: Description and Operation

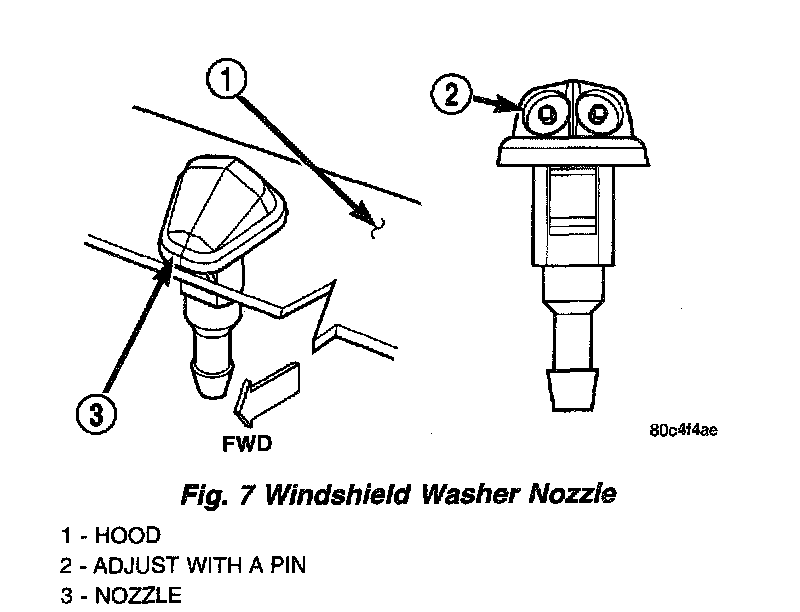

Fig.7 Windshield Washer Nozzle:

There are two hood mounted washer nozzles. The right and left nozzles have different aimed, but can be installed in either hood hole and aimed appropriately.

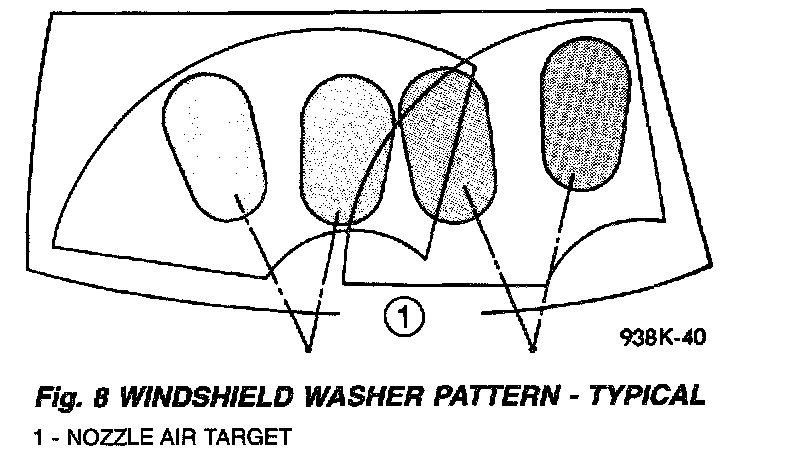

Fig.8 Windshield Washer Pattern - Typical:

Each nozzle emits two streams into the wiper pattern. If the nozzle performance is unsatisfactory they can be adjusted.
To adjust front washer nozzle(s):
- Insert a pin into the nozzle ball and move so that it sprays into the proper pattern area.

NOTE: Aim the spray towards the top of the pattern area. When proceeding down the road at speed, the spray will hit the windshield lower than when the vehicle is at rest.
