Manual Transmission/Transaxle: Tools and Equipment

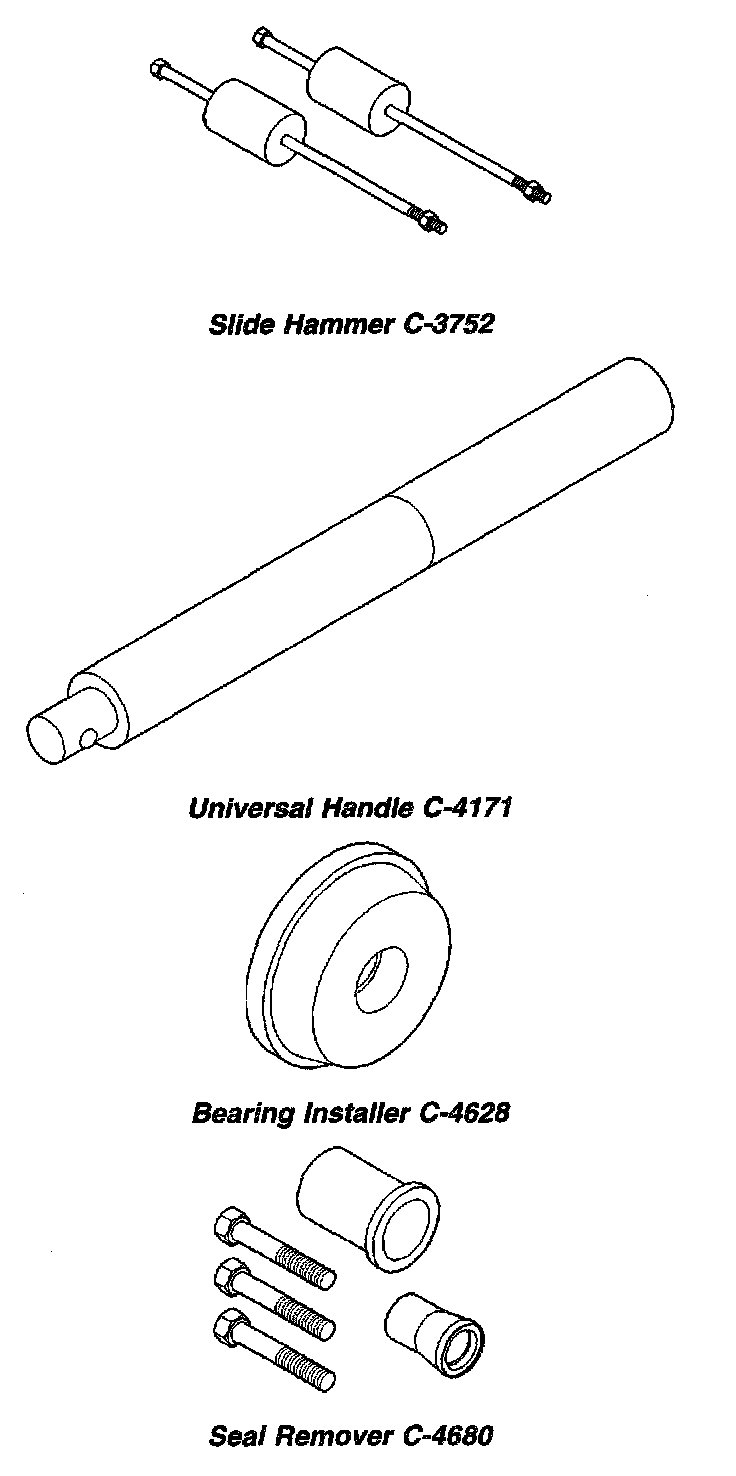

SPECIAL TOOLS Part 1 of 5

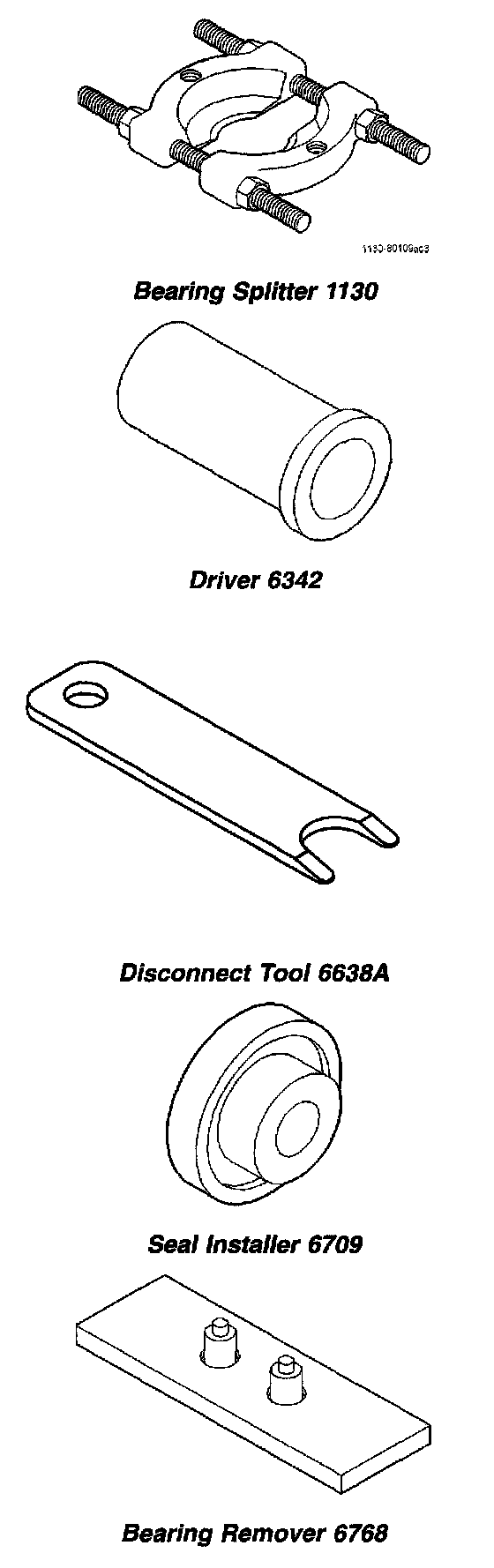

SPECIAL TOOLS Part 2 of 5

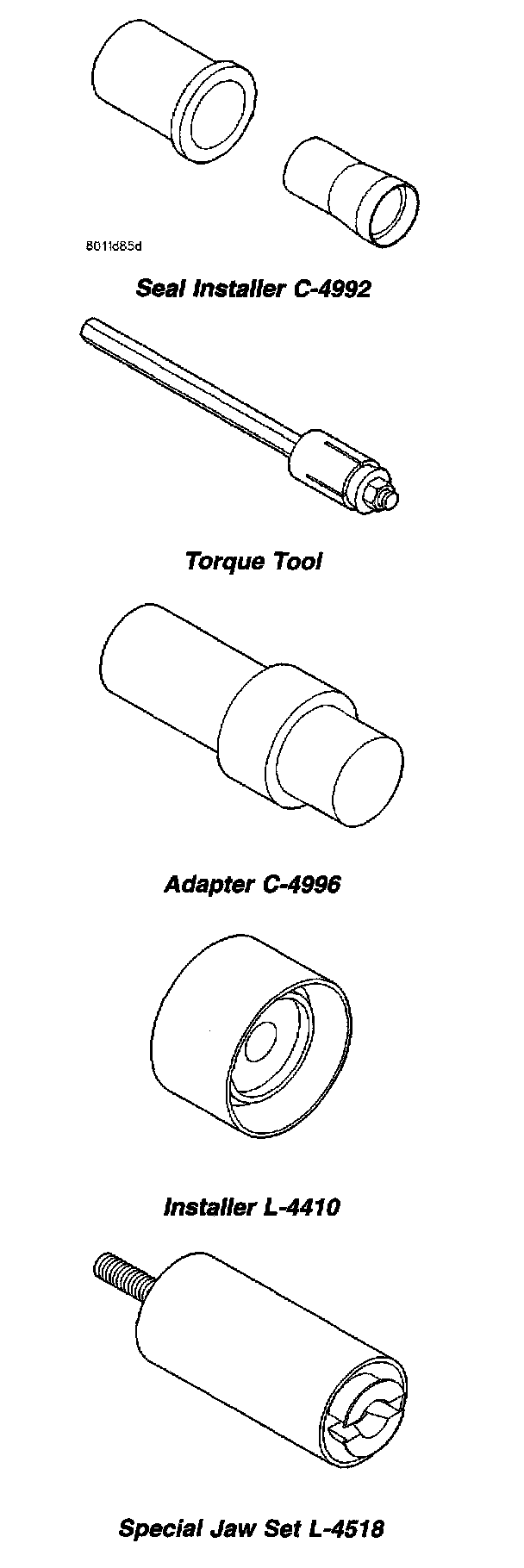

SPECIAL TOOLS Part 3 of 5

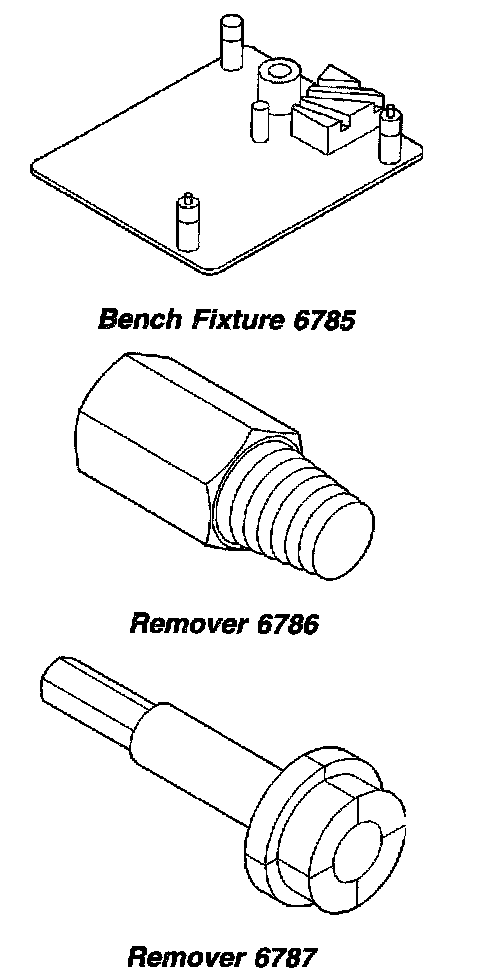

SPECIAL TOOLS Part 4 of 5

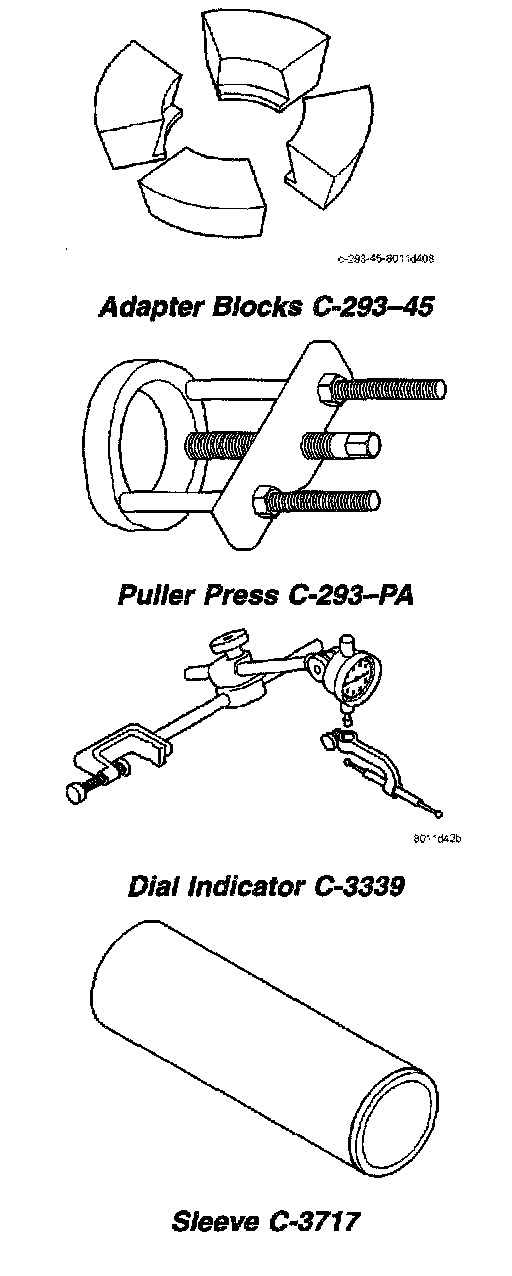

SPECIAL TOOLS Part 5 of 5
