Shift Rail: Service and Repair

SHIFT RAIL BUSHINGS

Removal
1. Thread tool #6786 into shift rail bushing.
2. Install slide hammer #3752 onto tool.

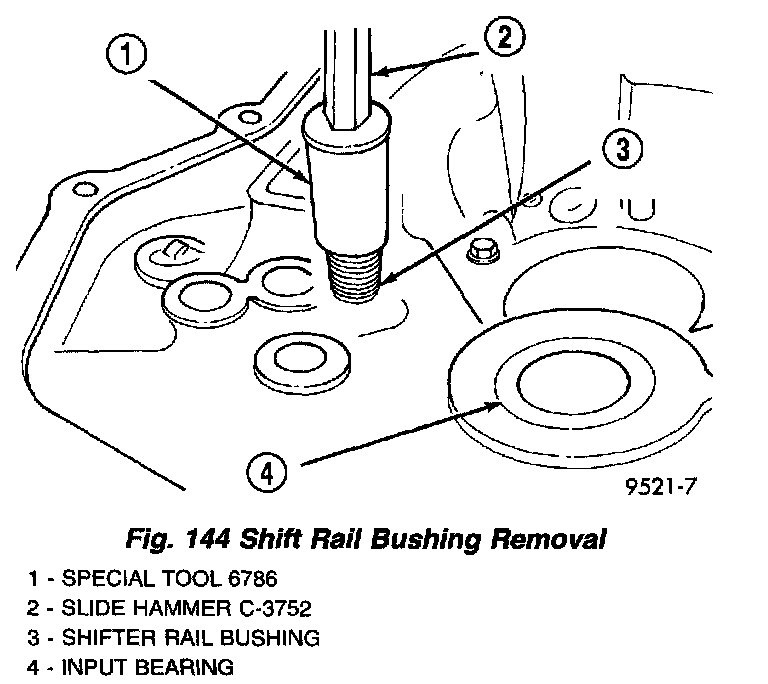

3. Remove bushing using slide hammer and tool assembly (Fig. 144).

Installation
1. Line up replacement bushing in bore.
2. Using tool #MD998343, tap bushing into bore until flush with the chamfer in the case.
