Assembly

SERVO - LOW/REVERSE
ASSEMBLY

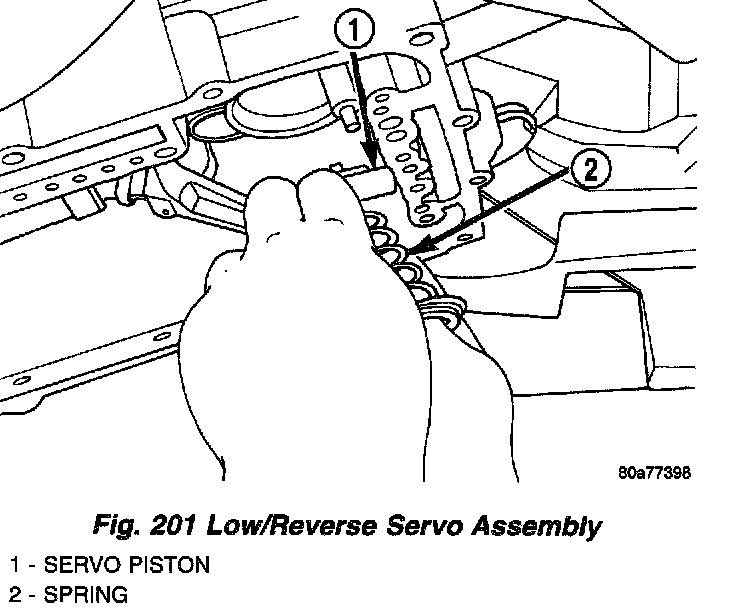

1. Install low/reverse servo assembly (Fig. 201).
2. Install low/reverse servo snap ring (Fig. 198).
