Home >> Chrysler >> 2001 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Steering and Suspension >> Testing and Inspection

Steering and Suspension: Testing and Inspection

DIAGNOSIS AND TESTING - SUSPENSION AND STEERING

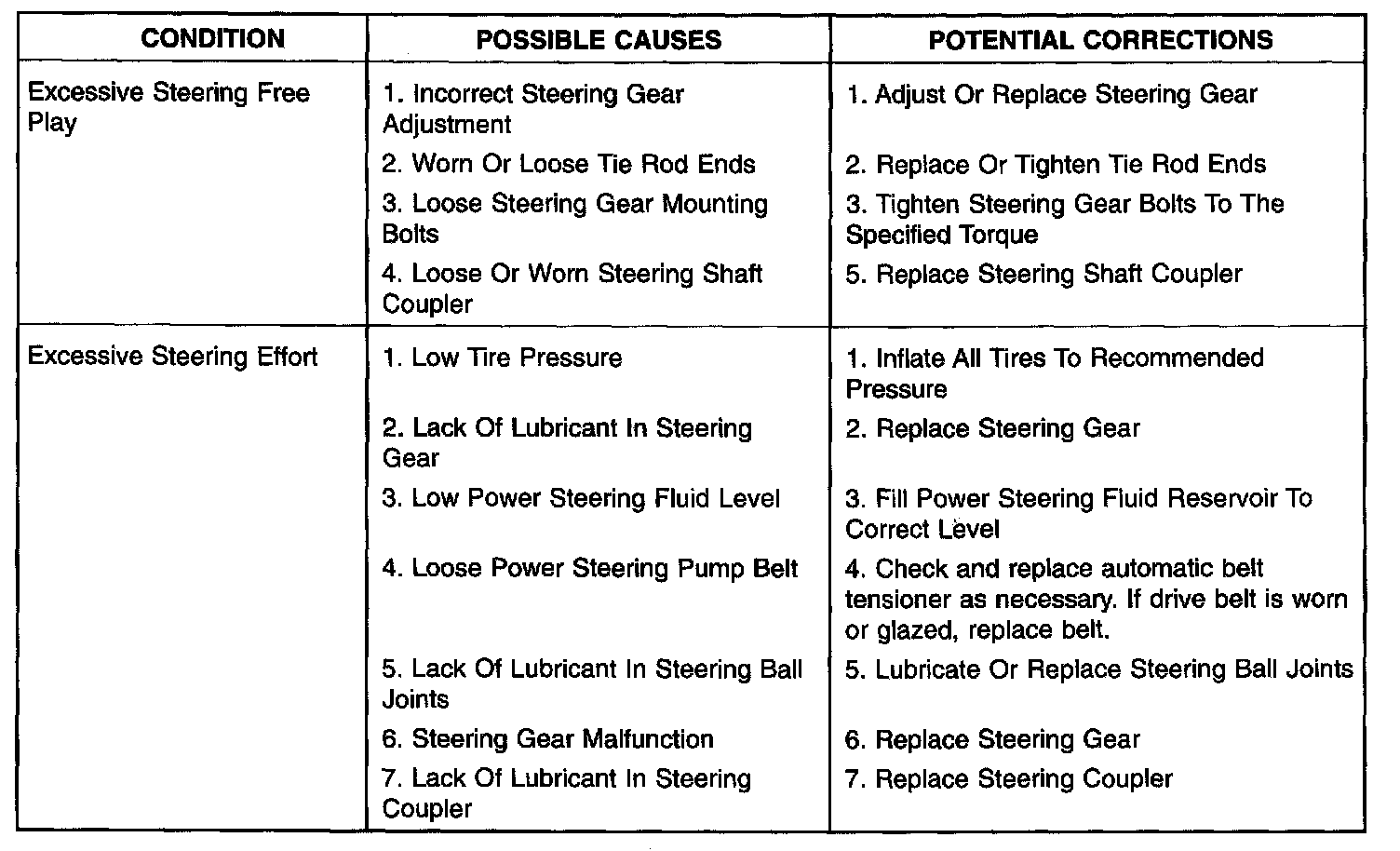

Diagnosis Chart - 1 of 3

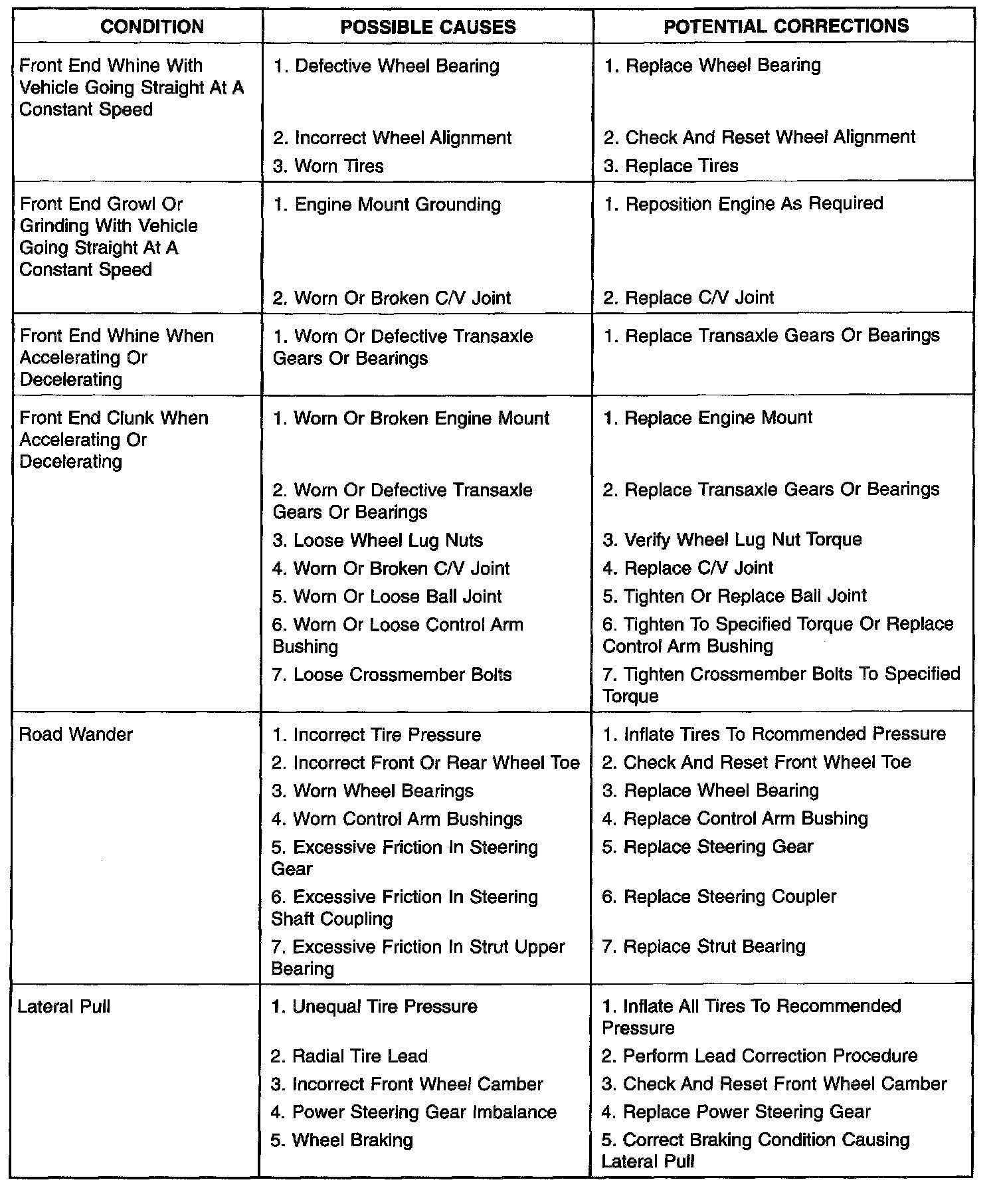

Diagnosis Chart - 2 of 3

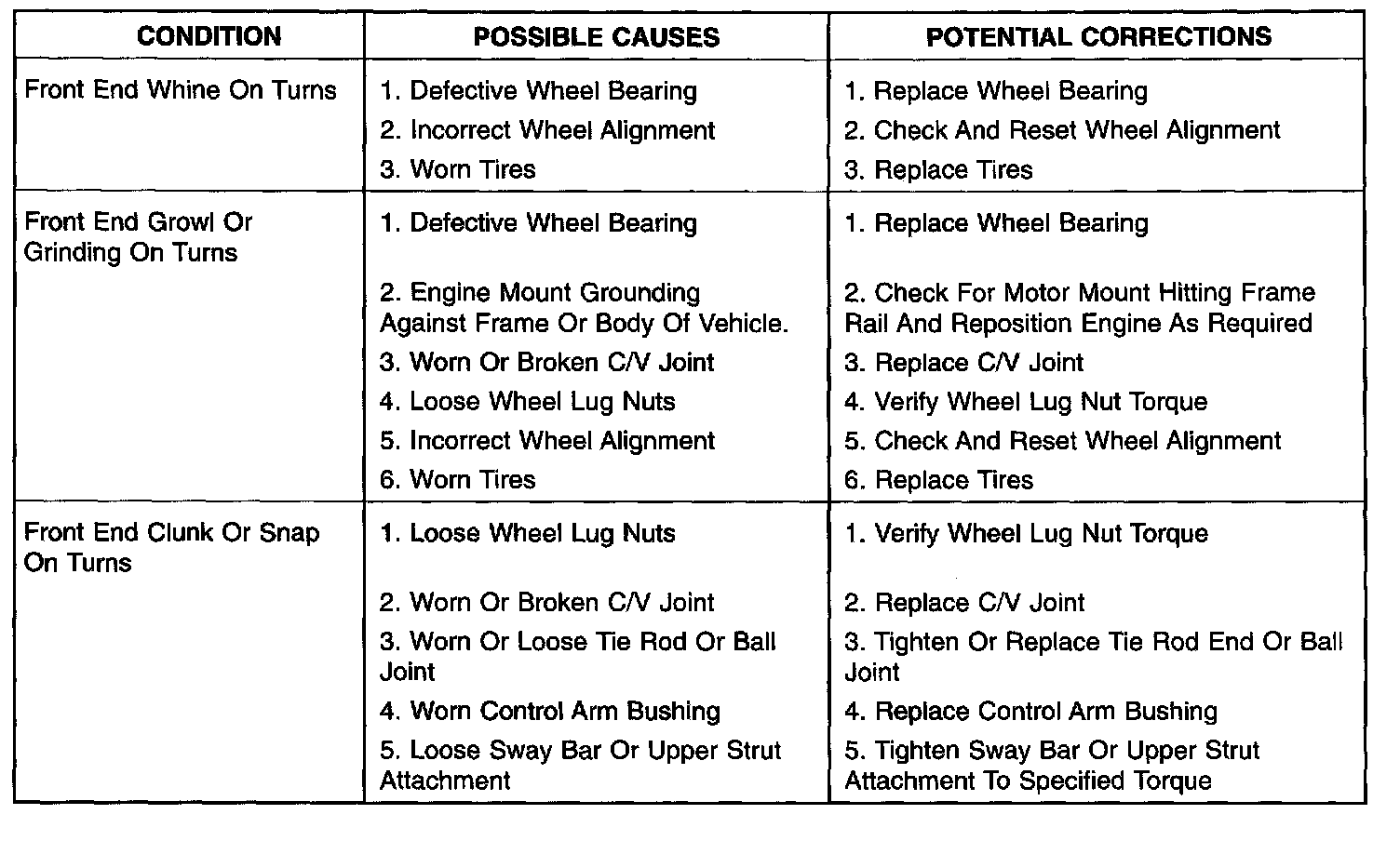

Diagnosis Chart - 3 of 3
