Front

REMOVAL

CAUTION: Front seat belt assemblies must be replaced after a collision.

1. Remove B-pillar trim.

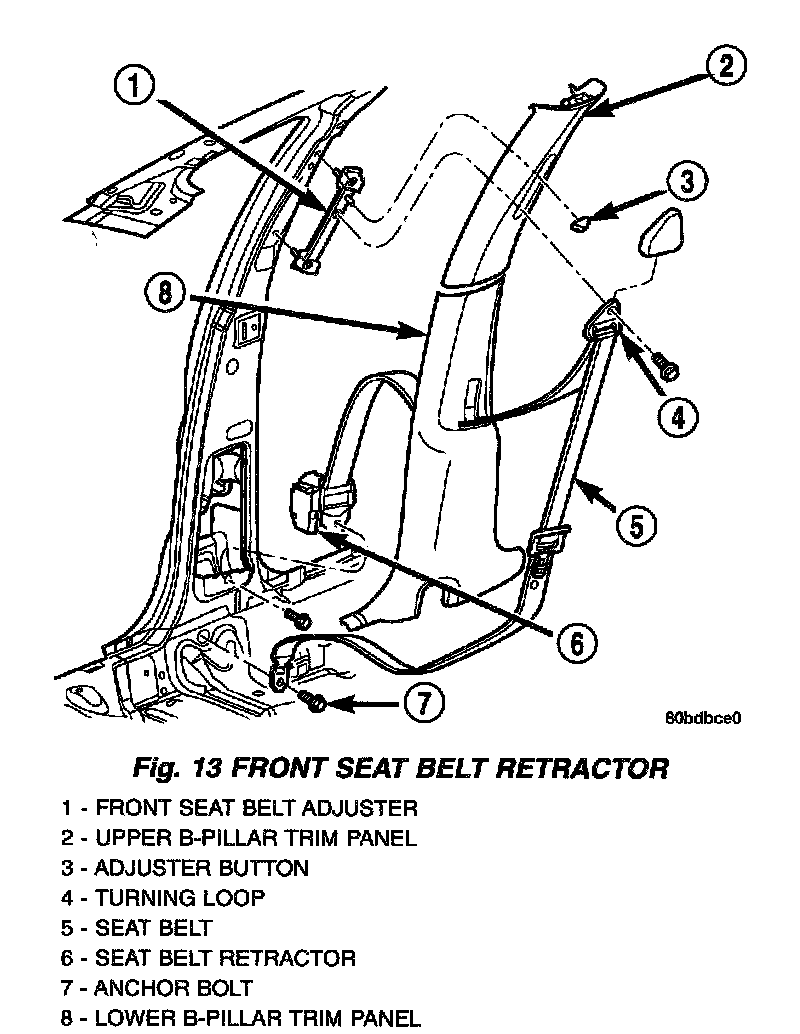

Fig.13 Front Seat Belt Retractor:

2. Remove bolt attaching seat belt retractor to B-pillar.
3. Disconnect the wire connector to the retractor.
4. Remove seat belt retractor from vehicle.

INSTALLATION

CAUTION: Front seat belt assemblies must be replaced after a collision.

1. Connect the wire connector to the retractor.
2. Install seat belt retractor into vehicle.
3. Install bolt attaching seat belt retractor to B-pillar. Tighten seat belt anchor bolt to 40 Nm (30 ft. lbs.) torque.
4. Install B-pillar trim.
