Seat Belt Height Adjuster: Service and Repair

REMOVAL

CAUTION: Front seat belt assemblies must be replaced after a collision.

Fig.13 Front Seat Belt Retractor:

1. Remove B-pillar trim.

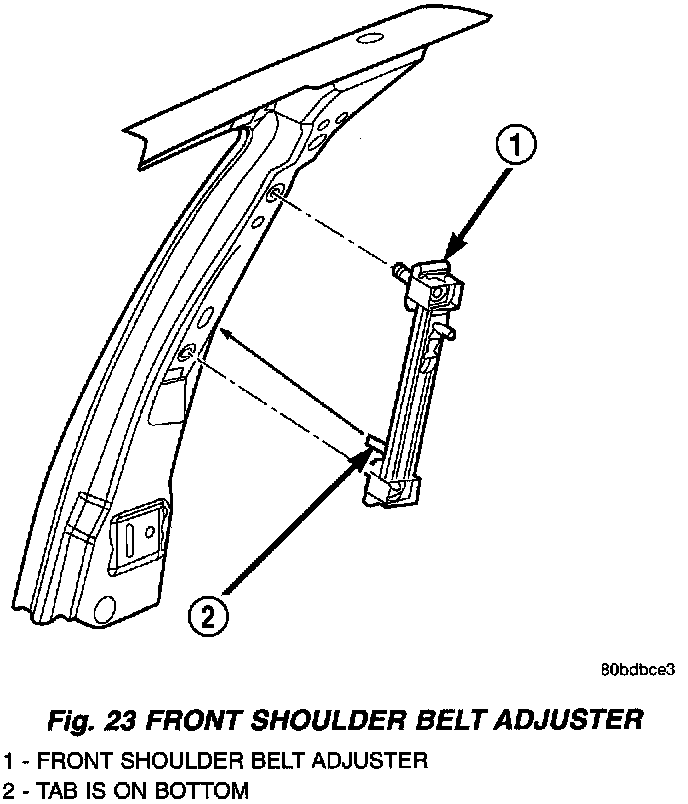

Fig.23 Front Shoulder Belt Adjuster:

2. Remove the two bolts attaching shoulder belt adjuster to B-pillar.
3. Remove shoulder belt adjuster from vehicle.

INSTALLATION

CAUTION:
- Front seat belt assemblies must be replaced after a collision.
- Front seat belt adjuster must be in the lowest position when Installing adjuster knob.

1. Place into position the shoulder belt adjuster.
2. Install bolts attaching shoulder belt adjuster to B-pillar. Tighten all seat belt bolts to 40 Nm (30 ft. lbs.) torque.
3. Install B-pillar trim.
