Child Seat Tether Attachment: Service and Repair

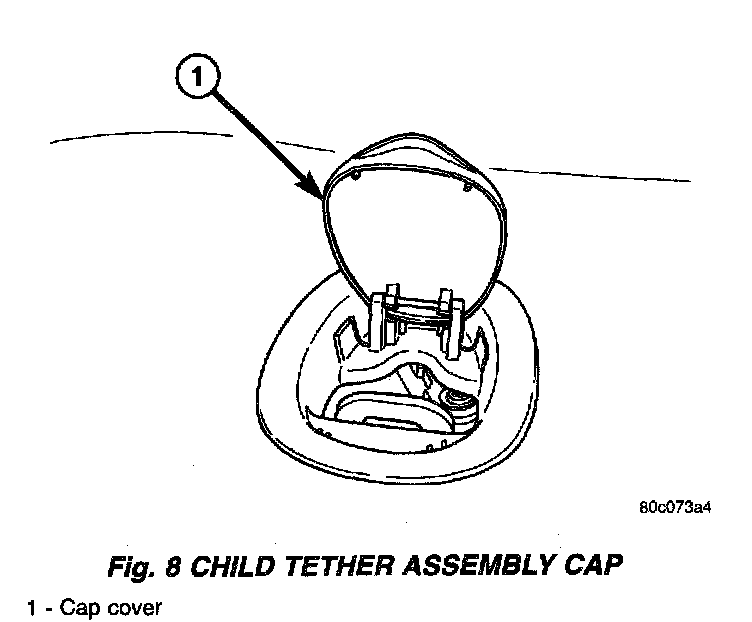

Fig.8 Child Tether Assembly Cap:

REMOVAL
1. Open Child Tether Assembly Cap Cover to the full open position.
2. Pull cover upward until cover detaches from cap.

INSTALLATION
1. Place Child Tether Assembly Cap Cover into position in the cap.
2. Push downward on Child Tether Assembly Cap Cover till it locks into position (will hear part click into position)
