Air Bag: Diagrams

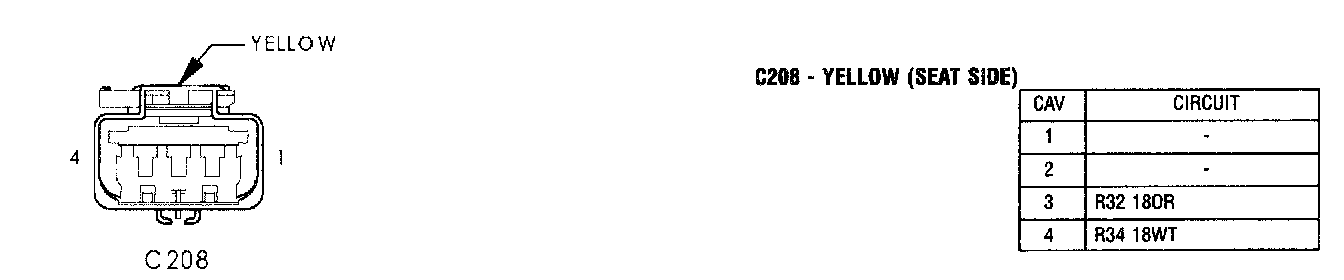

C208 (Right Seat Airbag):

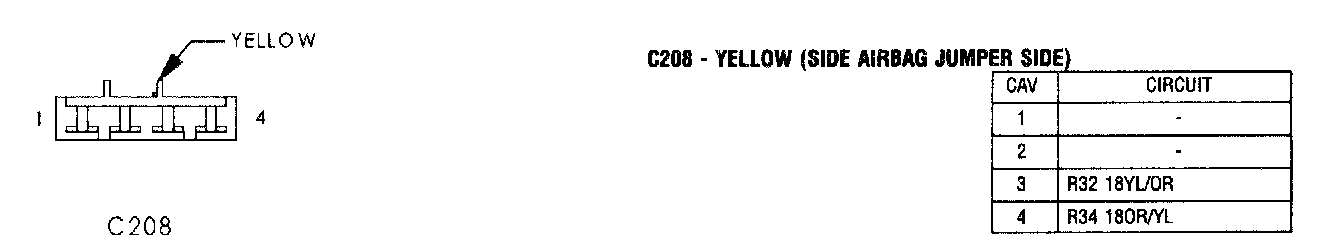

C208 (Right Seat Airbag):

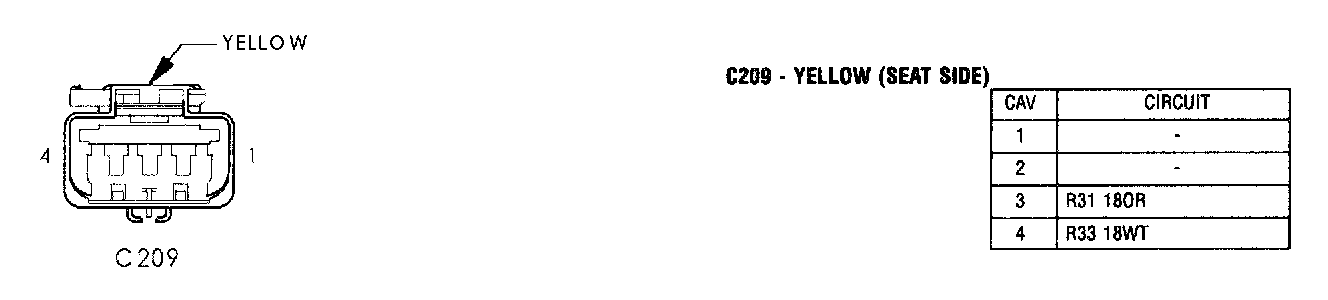

C209 (Left Seat Airbag):

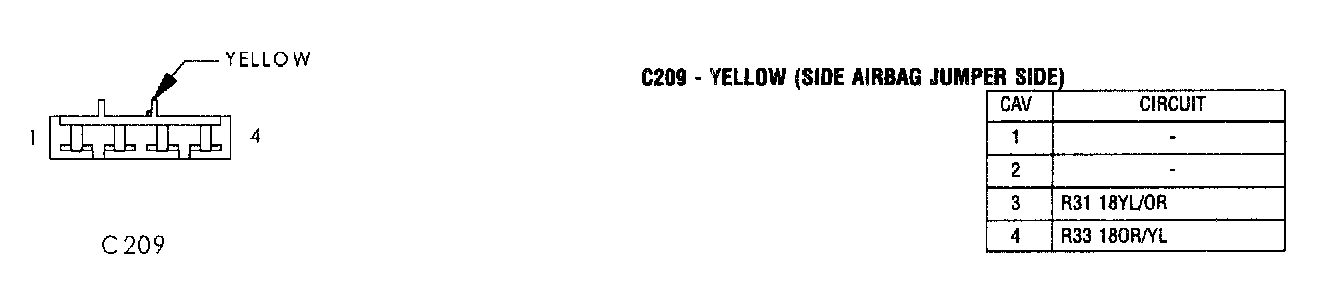

C209 (Left Seat Airbag):

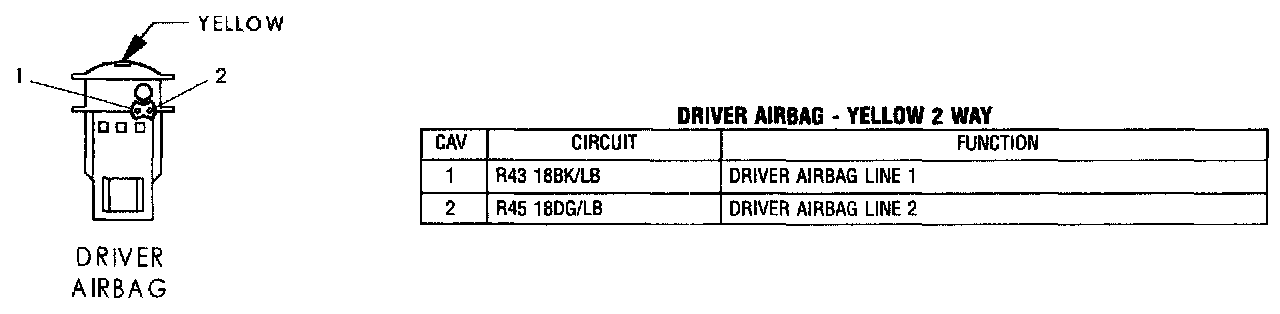

Driver Airbag:

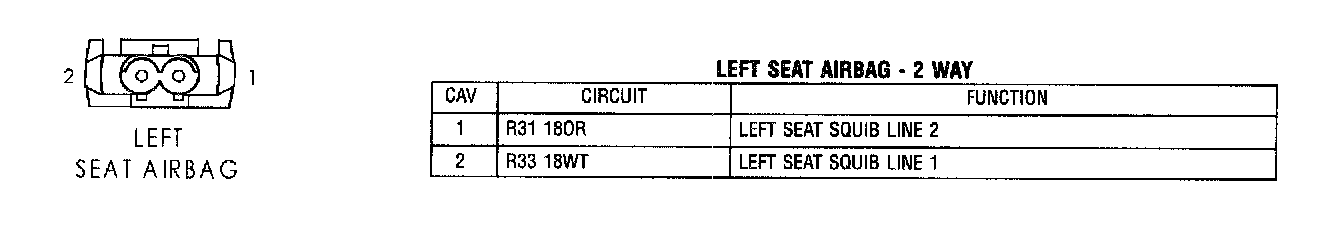

Left Seat Airbag:

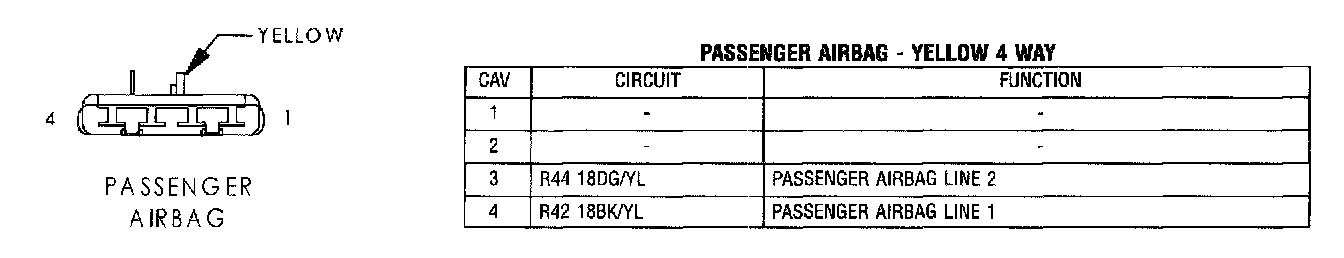

Passenger Airbag:

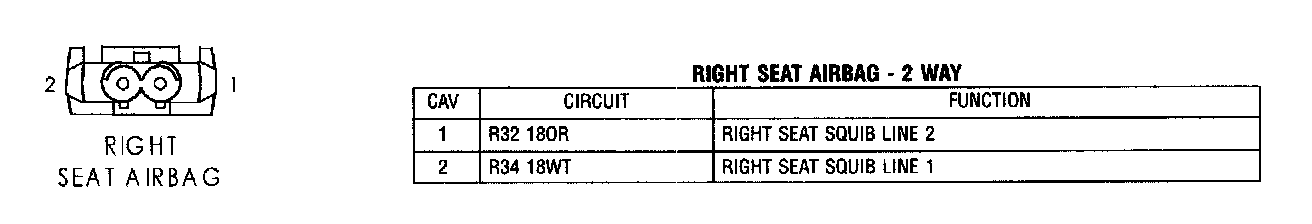

Right Seat Airbag:
