Horn Relay: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

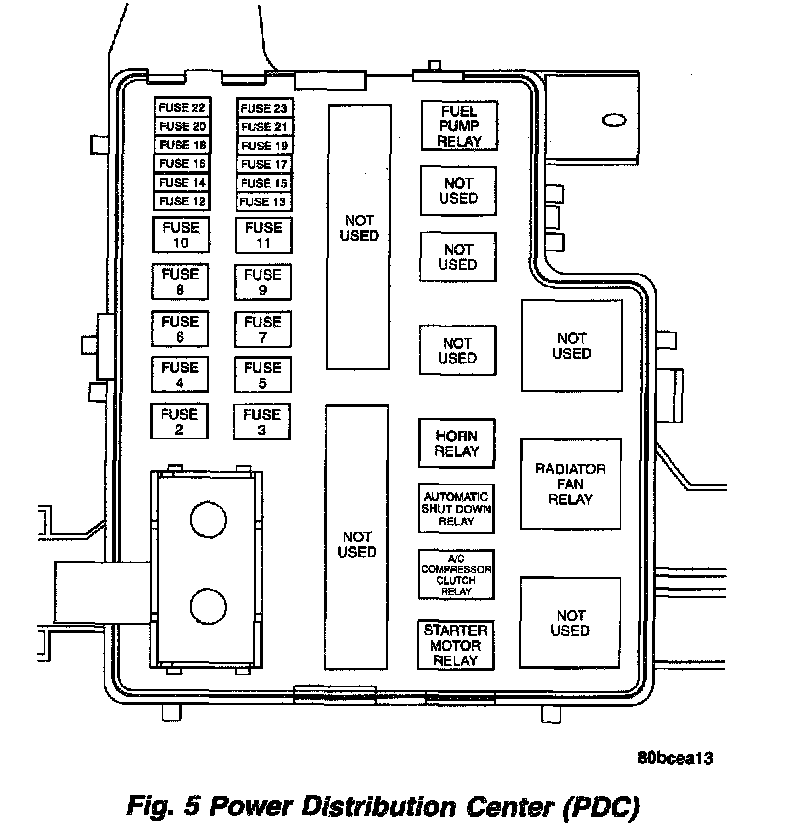

Fig.5 Power Distribution Center (PDC):

2. Remove the Power Distribution Center cover and locate the horn relay.
3. Remove the horn relay.

INSTALLATION
1. Insert the horn relay into the Power Distribution Center (PDC).
2. Install the PDC cover.
3. Connect the battery negative cable.
