Data Link Connector: Description and Operation

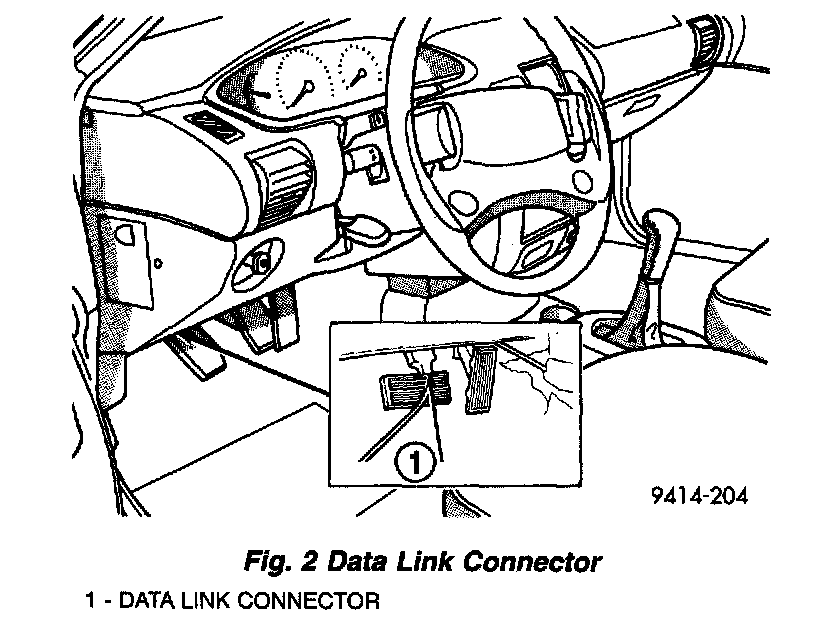

Fig.2 Data Link Connector:

The data link connector is located inside the vehicle, under the instrument panel, left of the steering column.

The data link connector (diagnostic connector) links the DRB scan tool with the Powertrain Control Module (PCM).
