License Plate Lamp Unit Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

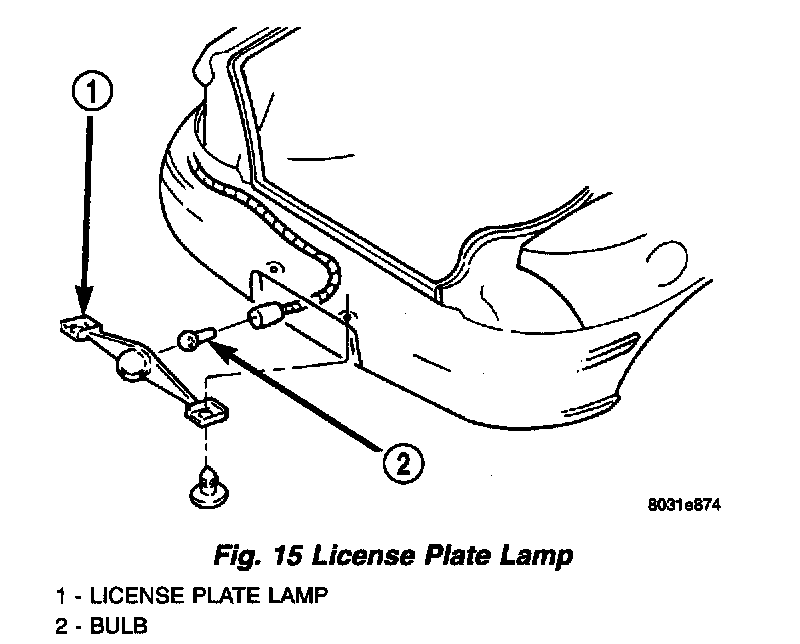

Fig.15 License Plate Lamp:

2. Remove screws attaching license plate lamp to rear bumper.
3. Remove lamp from bumper.
4. Remove bulb socket from lamp.
5. Remove lamp.

INSTALLATION
1. Install bulb socket into lamp.
2. Place lamp in position.
3. Install screws attaching license plate lamp to rear bumper.
4. Connect the battery negative cable.
