Horn: Service and Repair

REMOVAL

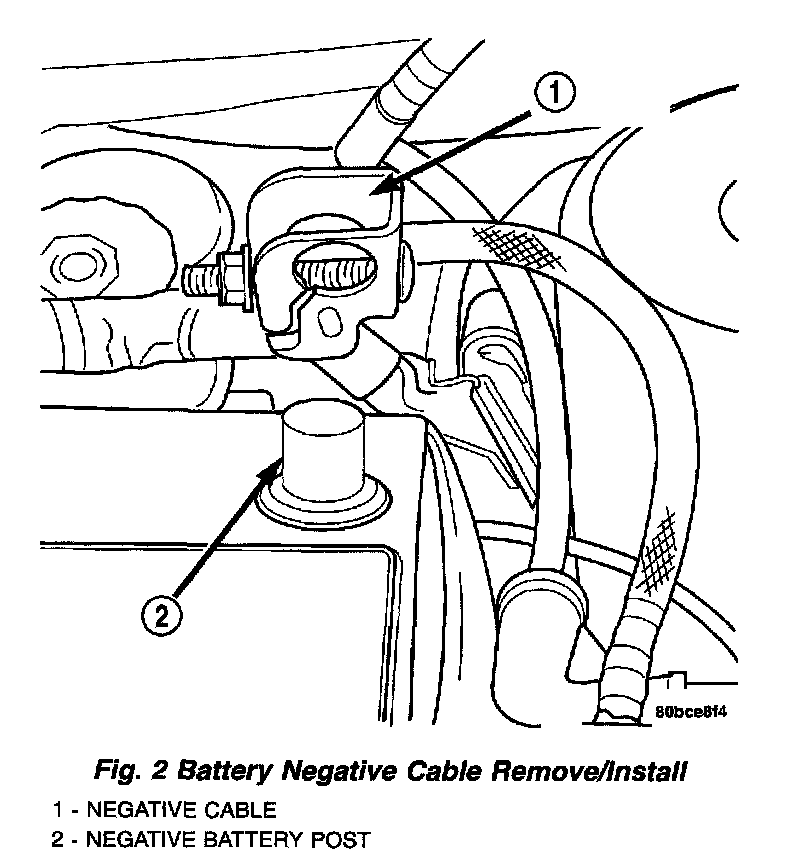

Fig.2 Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove the windshield washer reservoir. (Refer to WASHER RESERVOIR - REMOVAL).
3. Disconnect the harness connector.

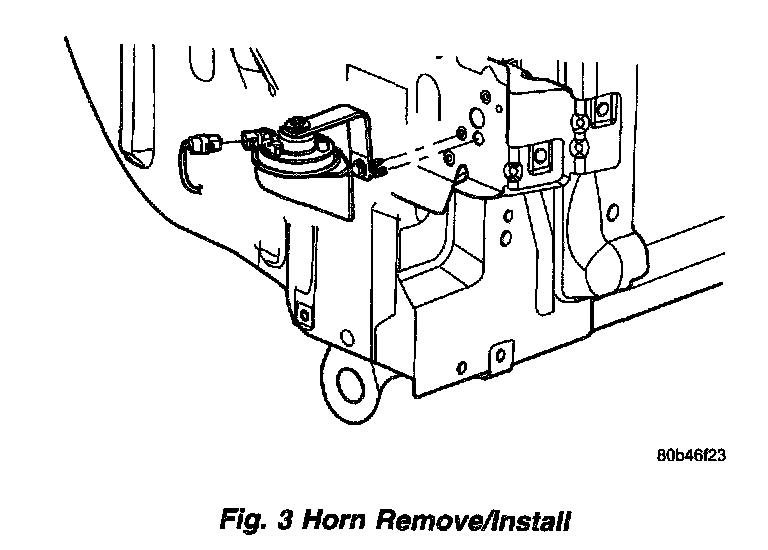

Fig.3 Horn Remove/Install:

4. Remove the one screw holding the horn assembly to vehicle.

NOTE: The screw holding the horn assembly is a captive screw and will remain as part of the assembly.

INSTALLATION
1. Install horn assembly to the vehicle.
2. Reconnect the harness connector.
3. Install the windshield washer reservoir.
4. Connect the battery negative cable.
