Blower Motor Resistor: Service and Repair

REMOVAL

CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed.

1. Remove windshield wipers. Refer to: "Wiper and Washer Systems : Wiper Arm : Service and Repair" Service and Repair
2. Remove cowl top screen.

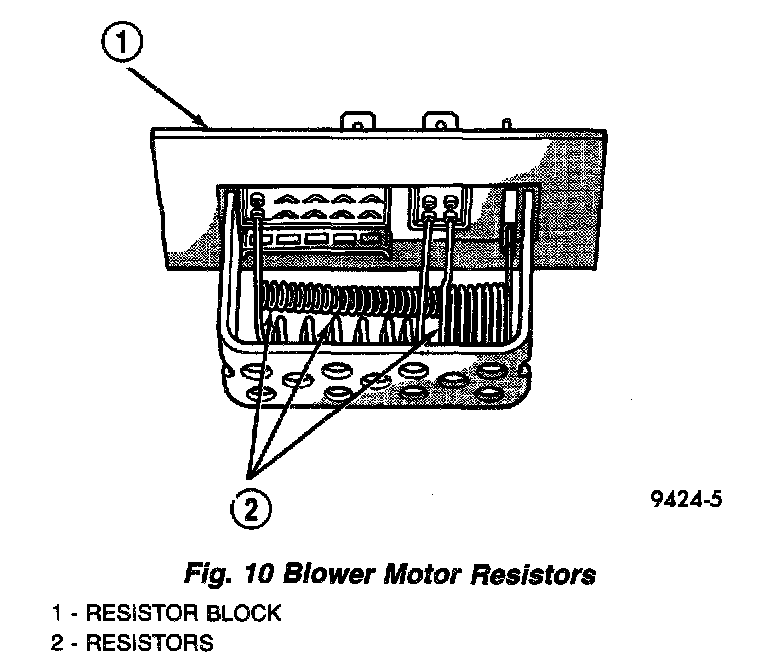

Fig.10 Blower Motor Resistors:

3. Disconnect the resistor block wiring connector.
4. Remove/unsnap resistor block from vehicle.

INSTALLATION

CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed.

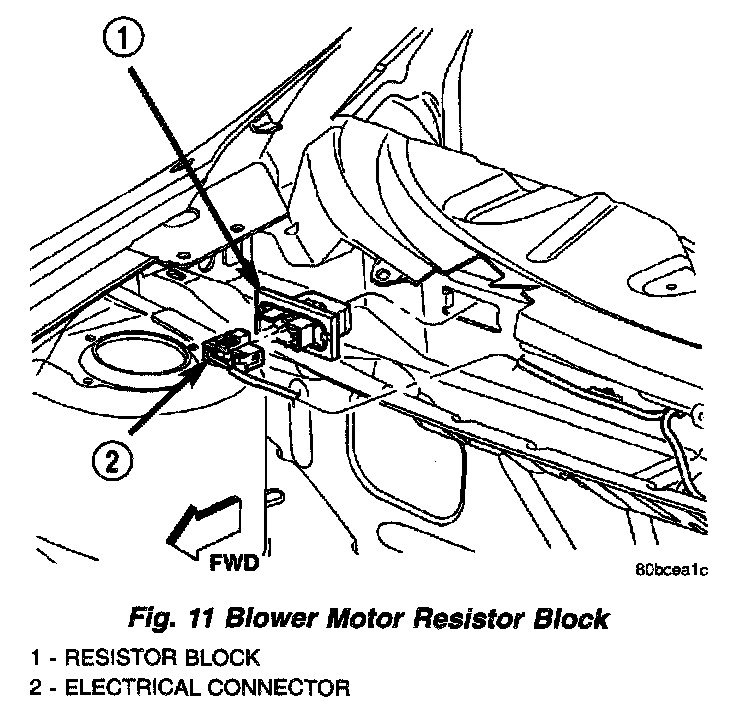

Fig.11 Blower Motor Resistor Block:

1. Snap the new Blower Motor Resistor Block into place.
2. Connect the resistor block wiring connector.
3. Install the cowl top screen.
4. Install the windshield wipers. Refer to: "Wiper and Washer Systems : Wiper Arm : Service and Repair" Service and Repair
