Mode Door Cable Replacement

REMOVAL
The Mode Control Cable can be removed and installed without having to remove the instrument panel from the vehicle.

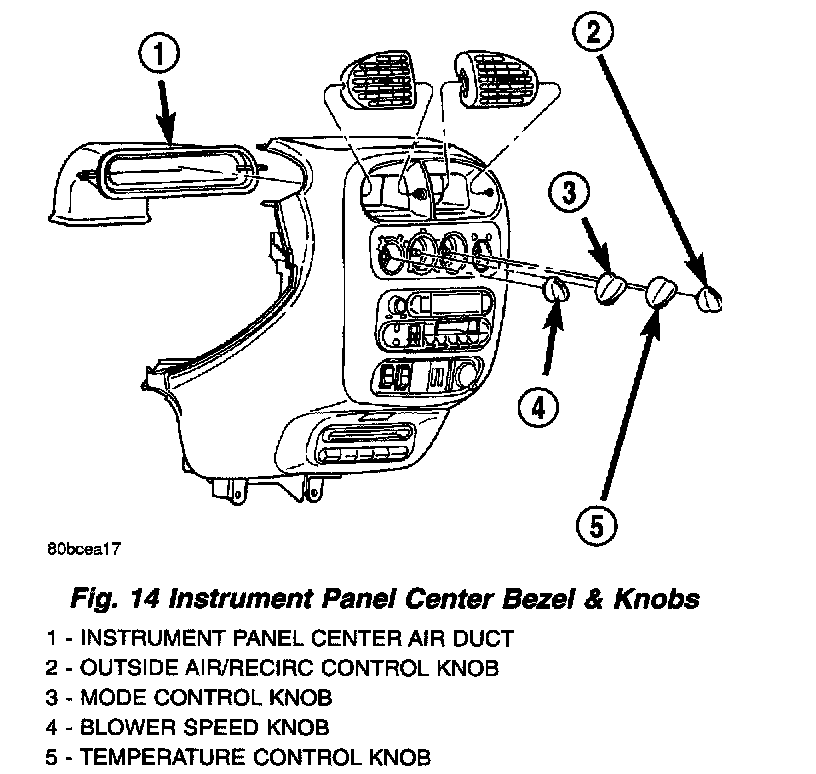

Fig.14 Instrument Panel Center Bezel And Knobs:

1. Remove instrument panel center stack bezel.

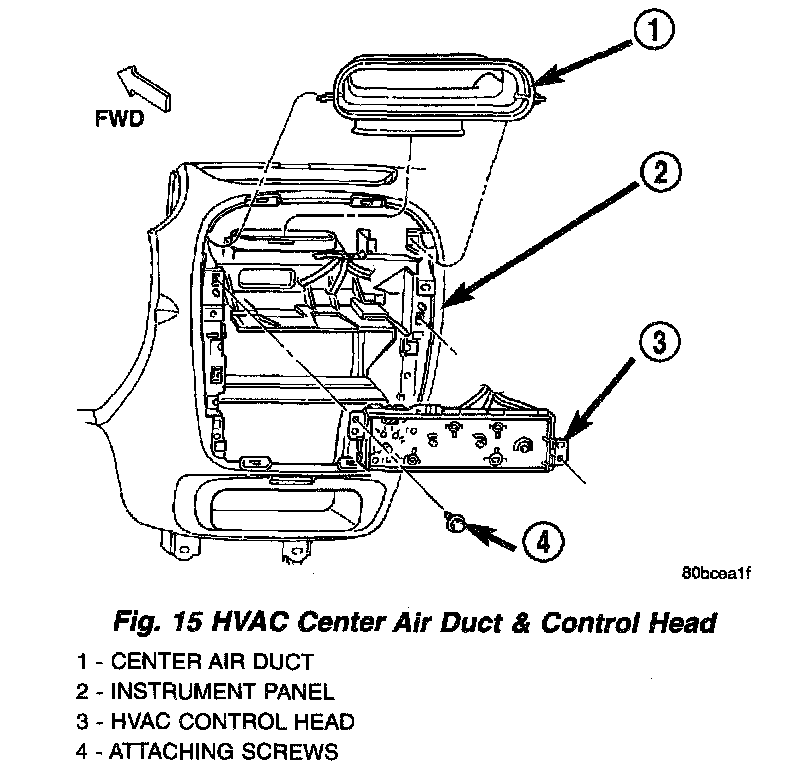

Fig.15 HVAC Center Air Duct And Control Head:

2. Remove center air duct.

Fig.16 HVAC Control Head Cables:

3. Remove heater-A/C control head and disconnect cable.
4. Disconnect cable at heater unit.
5. Remove cable from vehicle.

INSTALLATION
The Mode Control Cable can be removed and installed without having to remove the instrument panel from the vehicle.
1. Position and connect the cable at the heater unit.
2. Connect the cable at the control head.
3. Install the Heater-A/C control
4. Install the instrument panel center stack bezel.
