Air Door Actuator / Motor: Service and Repair

REMOVAL
The recirculation door actuator is a vacuum controlled actuator used to control movement of the recirculation door in air conditioner equipped vehicles.
The instrument panel must be removed from the vehicle to gain access to the recirculation door actuator.
1. Remove instrument panel from vehicle. Refer to: "Instrument Panel, Gauges and Warning Indicators : Instrument Panel : Service and Repair" Service and Repair
2. Disconnect vacuum line from actuator.

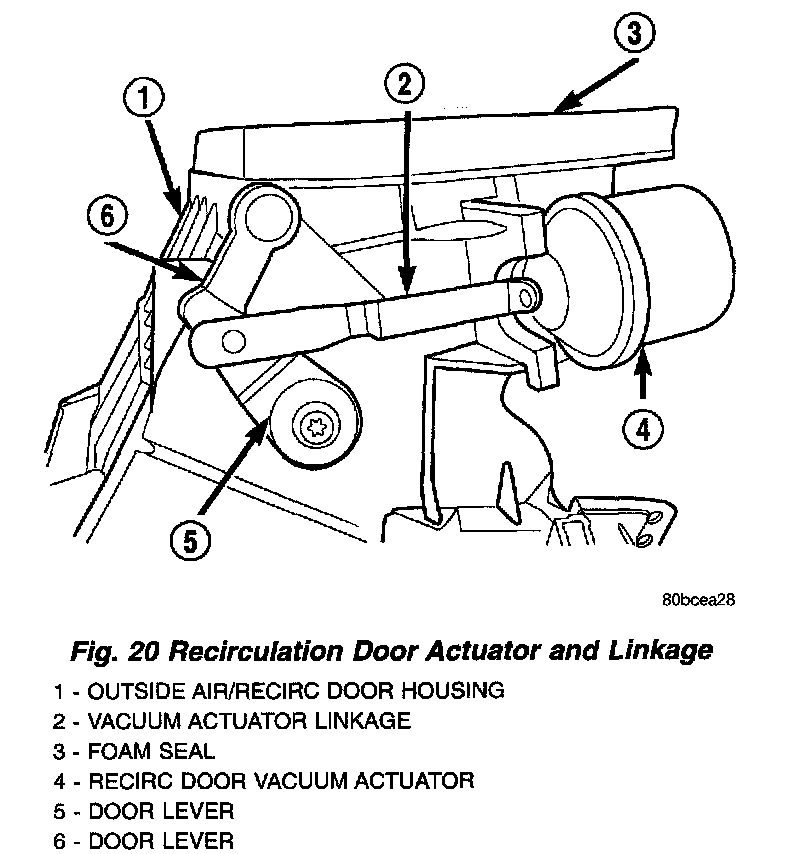

Fig.20 Recirculation Door Actuator And Linkage:

3. Disconnect actuator from recirculation door link.
4. Release tension on latch, and slide recirculation door actuator off housing.

INSTALLATION
The recirculation door actuator is a vacuum controlled actuator used to control movement of the recirculation door in air conditioned equipped vehicles.
The instrument panel must be removed from the vehicle to gain access to the recirculation door actuator.
1. Position and secure the recirculation door actuator to the case.
2. Connect the actuator arm to the door link.
3. Connect the actuator vacuum line.
4. Install the Instrument Panel. Refer to: "Instrument Panel, Gauges and Warning Indicators : Instrument Panel : Service and Repair" Service and Repair
