Heat Shield: Service and Repair

REMOVAL
1. Raise vehicle on hoist.

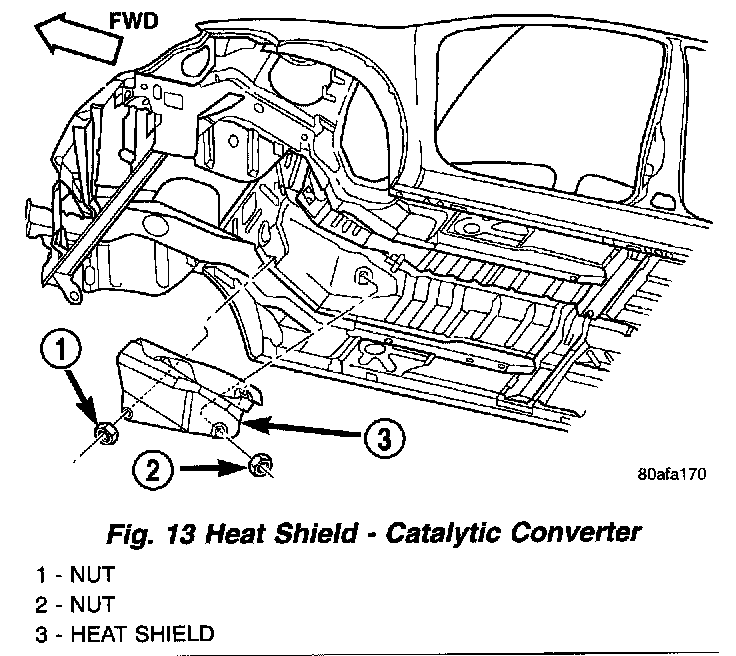

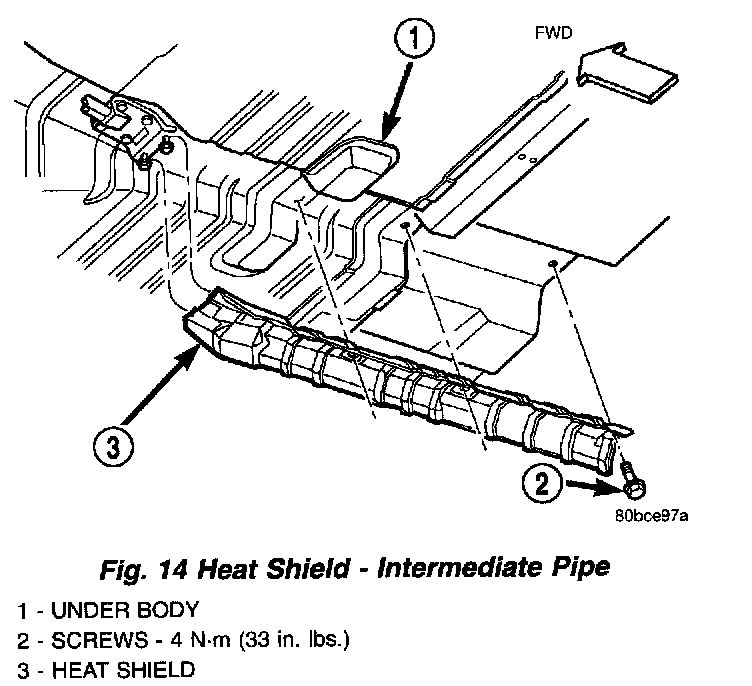

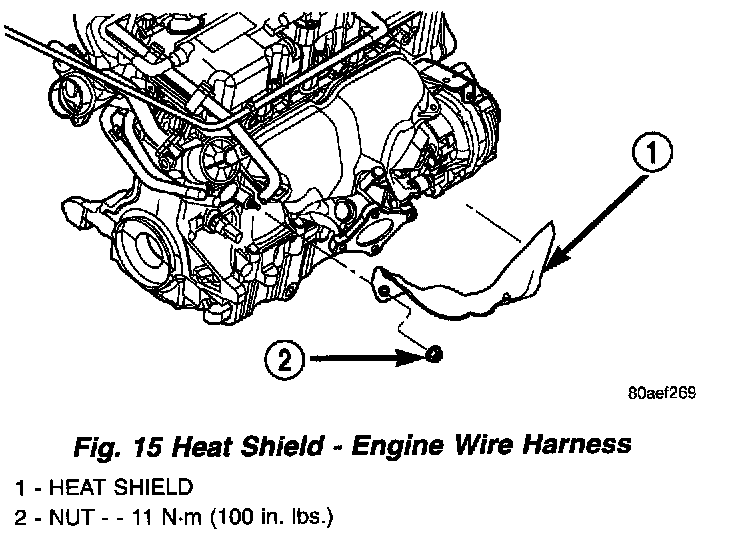

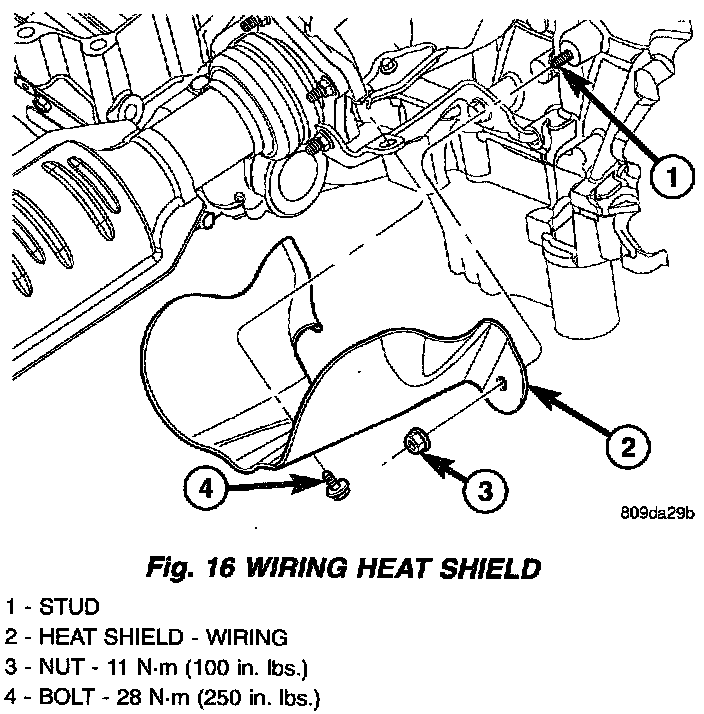

2. Remove fasteners attaching heat shield to under body, or engine component.
3. Remove heat shield(s).

INSTALLATION
1. Position heat shield to underbody, or engine component.
2. Install and tighten heat shield fasteners,,, or
3. Inspect heat shield to exhaust system clearances and adjust as necessary.
4. Lower the vehicle.
