Timing Belt Tensioner: Service and Repair

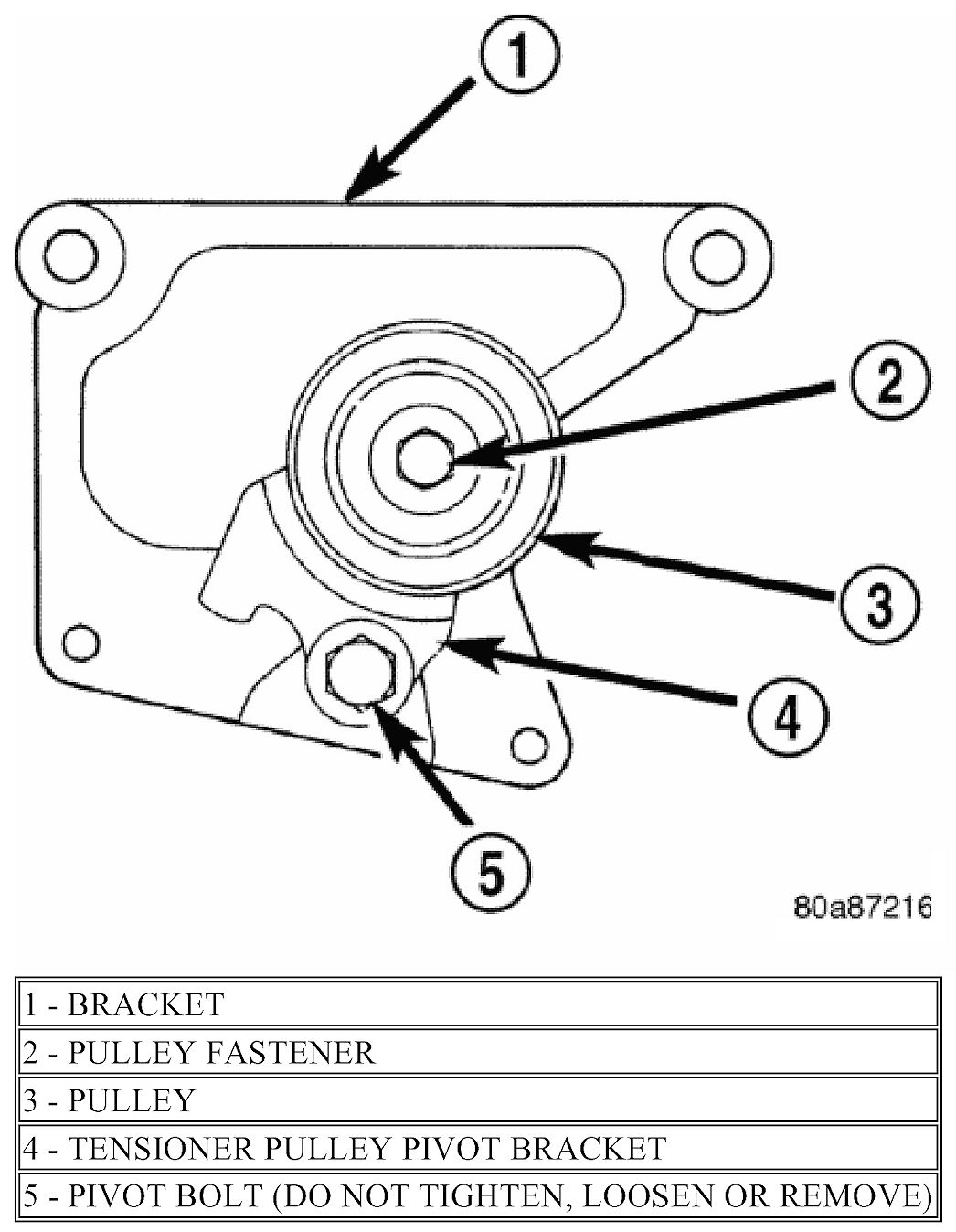

REMOVAL
1. Remove the timing belt. Timing Belt
2. Remove the bolts attaching the tensioner pulley assembly to engine.





3. Remove the tensioner pulley assembly.

INSTALLATION
1. Position tensioner pulley assembly to the engine and install attaching bolts. Tighten bolts to 31 Nm (23 ft. lbs.)
2. Install the timing belt. Timing Belt
