Drive Belt Tensioner: Description and Operation

DESCRIPTION

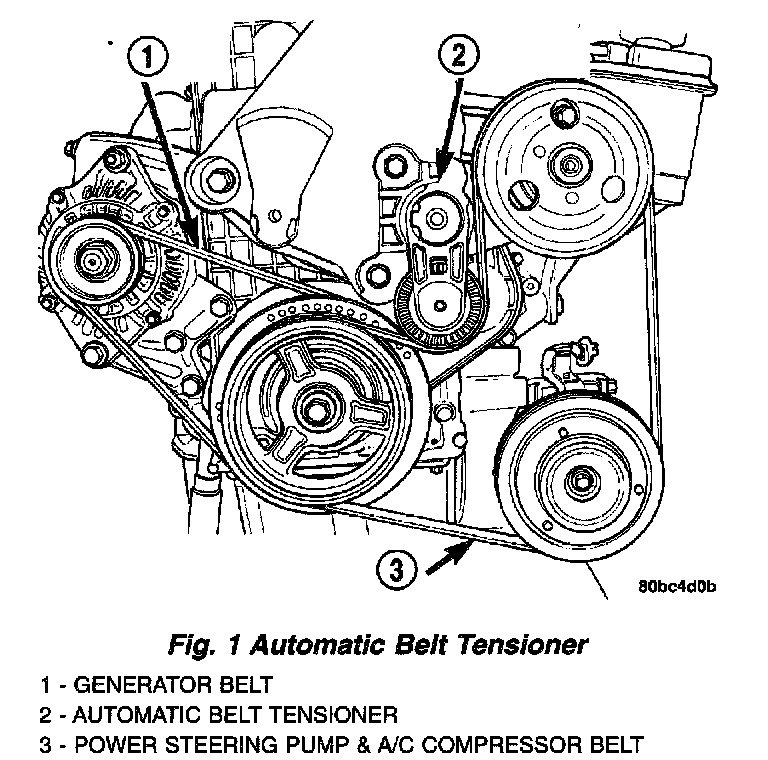

The automatic belt tensioner (Fig. 1) maintains proper tension on the power steering and air conditioning belt. The tensioner is serviced with the engine mount bracket assembly. The tensioner pulley can be serviced separately
